Tektronix TDS 620A 640A 644A 070-8717-02 Digitizing Oscilloscope Performance

Tektronix TDS 620A 640A 644A 070-8717-02 Digitizing Oscilloscope Performance Verification

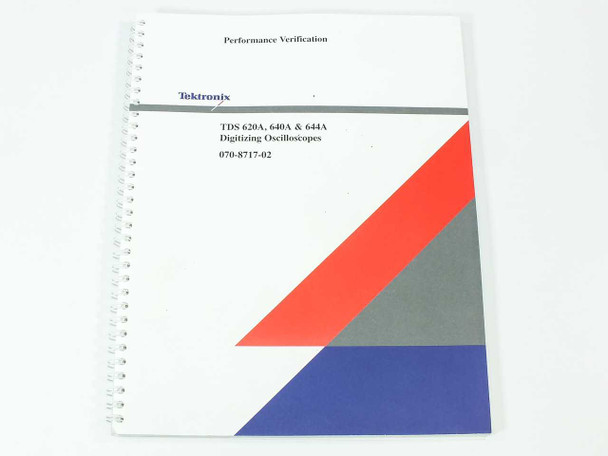

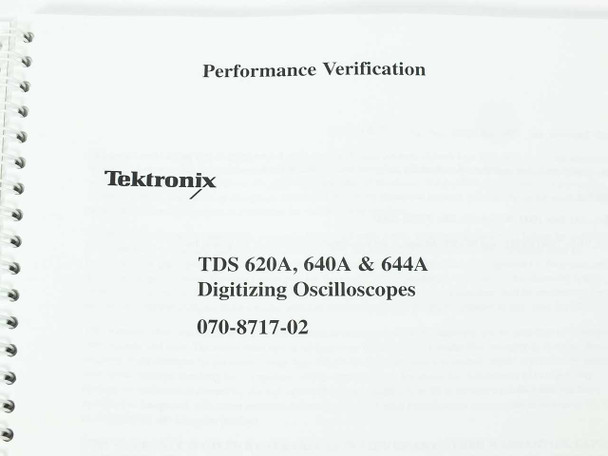

This is the original Tektronix Performance Verification manual for the TDS 620A, TDS 640A, and TDS 644A Digitizing Oscilloscopes, publication number 070-8717-02. It provides the complete set of procedures required to verify that these instruments meet their published specifications, covering everything from brief self-tests through detailed signal acquisition system checks.

Specifications & What's Included

• Publication Number: 070-8717-02
• Document Type: Performance Verification
• Applies To: Tektronix TDS 620A, TDS 640A, and TDS 644A Digitizing Oscilloscopes
• Series: TDS 600 Series
• Format: Printed, spiral-bound
• Language: English
• Sections include: Safety Summary, Brief Procedures, Self Tests, Functional Tests, Performance Tests, Signal Acquisition System Checks, Time Base System Checks, Trigger System Checks, Output Signal Checks, and Option 05 Video Trigger Checks

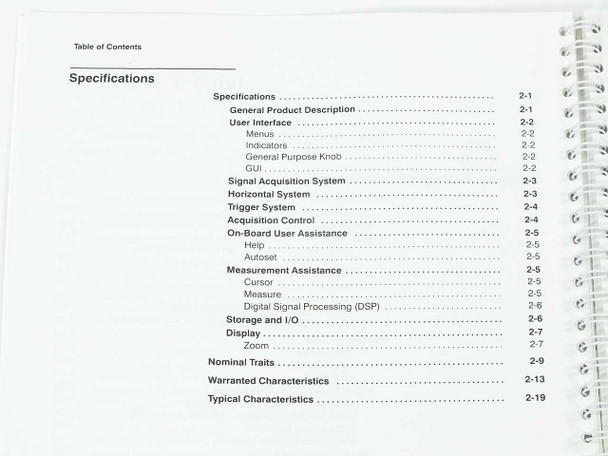

• Specifications section included: covers General Product Description, User Interface, Signal Acquisition, Horizontal System, Trigger System, Acquisition Control, Measurement Assistance, Storage and I/O, Display, Nominal Traits, Warranted Characteristics, and Typical Characteristics
• Manual only — no oscilloscope or accessories included

Applications

The Tektronix TDS 600 series — which includes the TDS 620A (500 MHz, 2 GS/s), TDS 640A (500 MHz, 2 GS/s, 4-channel), and TDS 644A (500 MHz, 2 GS/s, 4-channel with extended record length) — are mid-1990s high-performance digitizing oscilloscopes widely used in electronics development, telecommunications testing, and research laboratories. Performance Verification manuals like this one are essential for calibration labs, field service engineers, and maintenance technicians who need to confirm an instrument meets Tektronix's warranted specifications after repair, storage, or periodic recertification. The procedures step through every major subsystem — DC gain and voltage measurement accuracy, analog bandwidth, delay between channels, long-term sample rate and delay time, trigger accuracy, and output signal levels — using external reference equipment. This manual is also a valuable resource for users who need the instrument's warranted and typical characteristics in a single printed reference.
