Tektronix TDS 520A 524A 540A 544A 644A Oscilloscope Programmer Manual

Tektronix TDS 520A 524A 540A 544A 644A Oscilloscope Programmer Manual 070-8709-01

This is the original printed Programmer Manual for the Tektronix TDS Family Digitizing Oscilloscopes, publication number 070-8709-01, printed July 1993. It covers programming and remote control for the TDS 520A, TDS 524A, TDS 540A, TDS 544A, and TDS 644A models via GPIB (IEEE-488) and RS-232 interfaces. The manual is presented in Tektronix's standard binder format and covers the full command set required for automated test and measurement applications.

Specifications & What's Included

• Publisher: Tektronix, Inc.
• Publication Number: 070-8709-01
• Print Date: July 1993
• Covers Models: TDS 520A, TDS 524A, TDS 540A, TDS 544A, TDS 644A
• Document Type: Programmer Manual (remote control / programming reference)
• Interface Coverage: GPIB (IEEE-488) and RS-232
• Format: Printed, three-ring binder
• Language: English

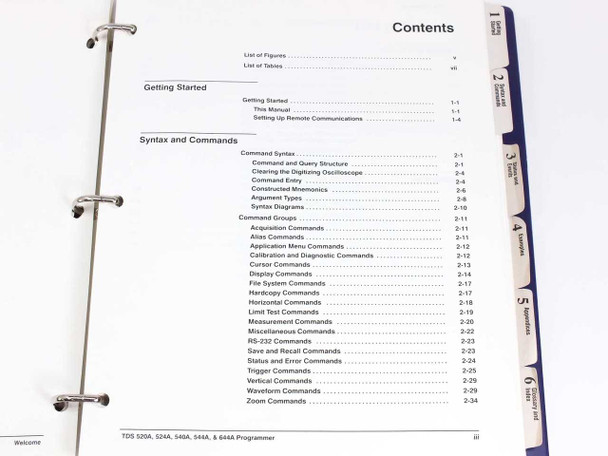

• Sections include: Getting Started, Command Syntax, Command Groups (Acquisition, Alias, Application Menu, Calibration & Diagnostic, Cursor, Display, File System, Hardcopy, Horizontal, Limit Test, Measurement, Miscellaneous, RS-232, Save & Recall, Status & Error, Trigger, Vertical, Waveform, Zoom)

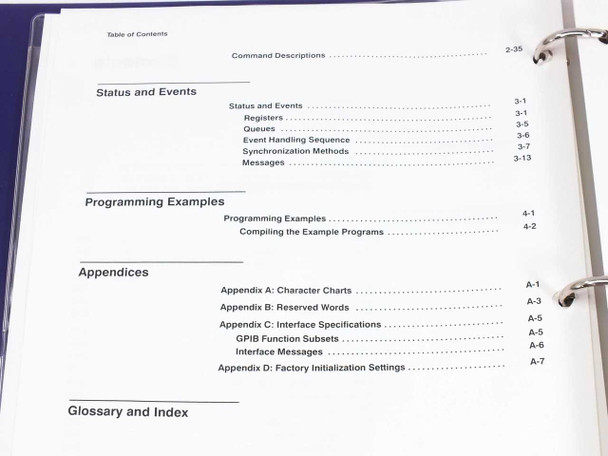

• Also includes: Status and Events, Programming Examples, Appendices (Character Charts, Reserved Words, Interface Specifications, GPIB Function Subsets, Factory Initialization Settings), Glossary and Index

Applications

The Tektronix TDS 500/600 series are digitizing oscilloscopes from the early-to-mid 1990s designed for high-speed waveform acquisition in engineering, research, and automated test environments. The TDS 520A and 540A are two-channel and four-channel variants respectively operating at 500 MHz bandwidth; the TDS 524A, 544A, and 644A extend the family with higher sample rates and additional memory depth. All models support GPIB (IEEE-488.2) and RS-232 remote interfaces, making them well-suited for integration into automated test systems. This Programmer Manual is the reference a test engineer or ATE developer needs to write control software — covering command syntax, argument types, constructed mnemonics, and programming examples in full. It is particularly useful for legacy ATE (automated test equipment) maintenance, instrument re-integration into existing GPIB-based test racks, and software development environments that still interface with this instrument generation. Engineers maintaining or modernizing test systems built around the TDS family continue to seek out this manual when documentation has been lost over the years.
