Tektronix TDS 520A 524A 540A 544A 070-8712-01 Digitizing Oscilloscope Perf

Tektronix TDS 520A 524A 540A 544A 070-8712-01 Digitizing Oscilloscope Perf Verification

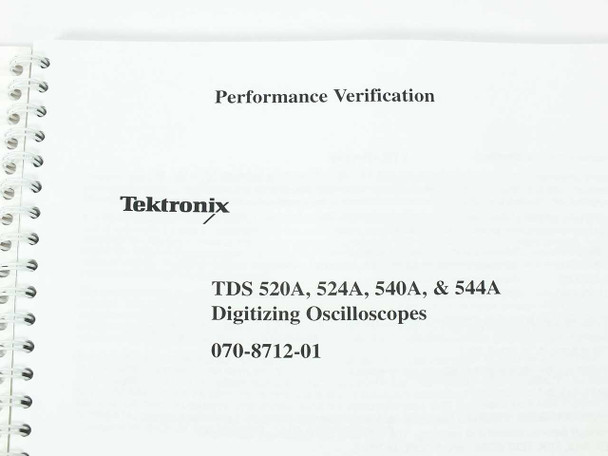

This is the original printed Performance Verification manual for the Tektronix TDS 520A, TDS 524A, TDS 540A, and TDS 544A Digitizing Oscilloscopes, published by Tektronix in July 1993. Publication number 070-8712-01. The manual is spiral bound and covers the complete performance verification procedure for this family of oscilloscopes, including self tests, functional tests, signal acquisition system checks, time base and trigger system verification, output signal checks, and a full specifications section with warranted and typical characteristics.

Specifications & What's Included

• Manufacturer: Tektronix
• Publication Number: 070-8712-01
• Applies To: TDS 520A, TDS 524A, TDS 540A, TDS 544A Digitizing Oscilloscopes
• Document Type: Performance Verification
• Print Date: July 1993
• Format: Printed, spiral bound
• Language: English

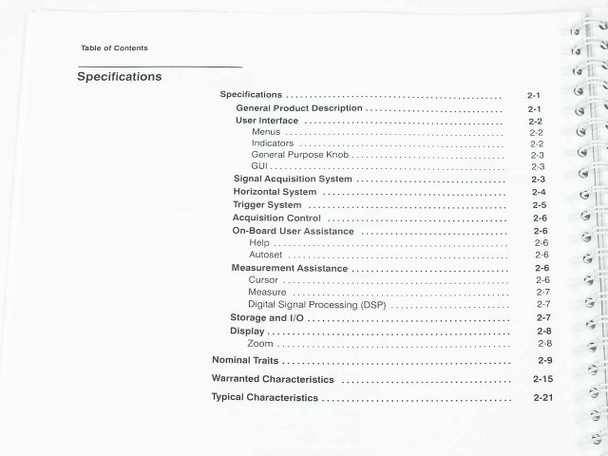

• Contents include: Safety Summary, General Instructions, Self Tests, Functional Tests, Performance Tests, Signal Acquisition System Checks, Time Base System Checks, Trigger System Checks, Output Signal Checks, Option 05 Video Trigger Checks, Specifications (General Product Description, User Interface, Signal Acquisition System, Horizontal System, Trigger System, Acquisition Control, Display, Nominal Traits, Warranted Characteristics, Typical Characteristics)
• Condition note: Small tear on front cover; interior pages complete, clean, and legible; spiral binding intact

Applications

The Tektronix TDS 500 series were high-performance digitizing oscilloscopes introduced in the early 1990s, offering bandwidths from 500 MHz (TDS 520A/524A) up to 1 GHz (TDS 540A/544A) with digital phosphor display technology and advanced triggering. They were widely used in electronics R&D, manufacturing test, and university laboratories. Performance verification procedures are essential for confirming that an oscilloscope meets its published warranted specifications — typically required after repair, calibration, or when qualifying a unit for a precision test environment. This manual provides the step-by-step procedure for verifying all key measurement parameters on these four models, making it a necessary companion for any technician or calibration lab working with TDS 520A, 524A, 540A, or 544A instruments. These oscilloscopes remain in use in legacy test environments, repair shops, and educational settings, and this original Tektronix documentation is an important resource for maintaining them to specification.
