Tektronix P6139A 063-0870-02 10X Passive Probe Instructions Manual

Tektronix P6139A 063-0870-02 10X Passive Probe Instructions Manual

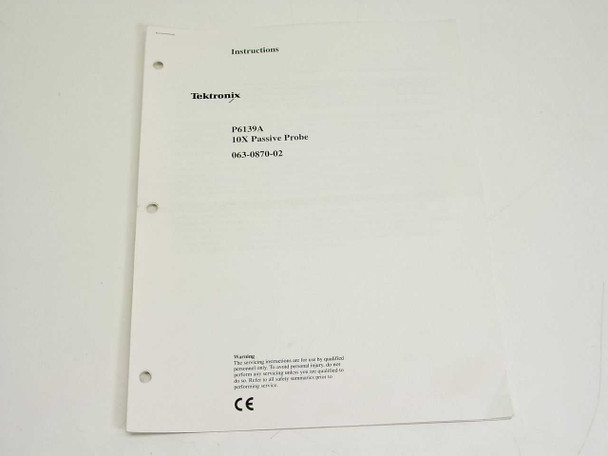

This is the original printed Instructions manual for the Tektronix P6139A 10X Passive Probe, publication number 063-0870-02. It covers setup, operation, replaceable parts, and component sourcing for the P6139A probe, and serves as the definitive reference document for users of this probe.

Specifications & What's Included

• Manufacturer: Tektronix
• For Model: P6139A 10X Passive Probe
• Document Type: Instructions (User / Operation Manual)
• Publication Number: 063-0870-02
• Format: Printed hard copy, saddle-stitched / staple-bound pages
• Language: English
• Contents include: replaceable parts list, optional accessories table, manufacturers cross index with supplier addresses
• CE mark present on cover

Applications

The Tektronix P6139A is a 10X passive oscilloscope probe widely used with Tektronix oscilloscopes, particularly benchtop digital and analog models from the 1990s and 2000s. The 10X attenuation factor makes it a standard general-purpose probe for general signal measurement, reducing loading on the circuit under test. This instruction manual is the primary reference for technicians, engineers, and hobbyists who need guidance on probe compensation, accessory identification, or locating replacement parts. It is especially useful for those maintaining or repairing P6139A probes and needing a parts cross-reference or original documentation for calibration records.
