Description

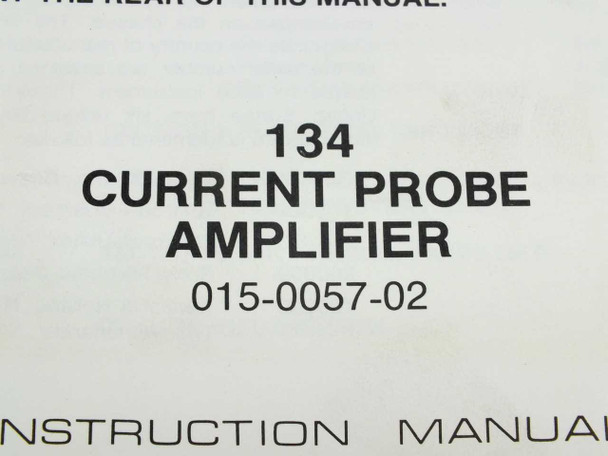

Tektronix 134 015-0057-02 Current Probe Amplifier Instruction Manual
This is the printed instruction manual for the Tektronix 134 Current Probe Amplifier. The manual provides setup, operation, and maintenance documentation for this measurement instrument.
Specifications & What's Included
- Brand: Tektronix
- Model: 134 Current Probe Amplifier
- Publication Number: 015-0057-02
- Format: Printed hardcopy, spiral-bound
- Language: English
- Includes schematics and exploded parts diagrams
- Country of Manufacture: United States
Applications
Current probe amplifiers are used in oscilloscope and measurement systems to amplify and condition signals from current probes, enabling users to measure AC and DC currents without breaking circuit connections. The Tektronix 134 was designed for use with Tektronix oscilloscopes and test equipment. This manual serves technicians, engineers, and service personnel performing setup, troubleshooting, and repair work on the amplifier unit.
Condition: Used

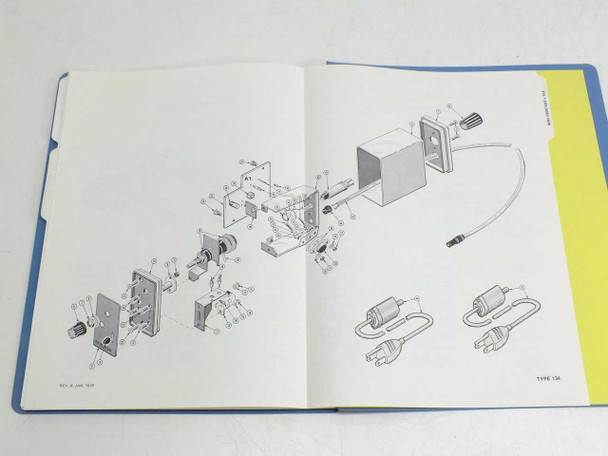

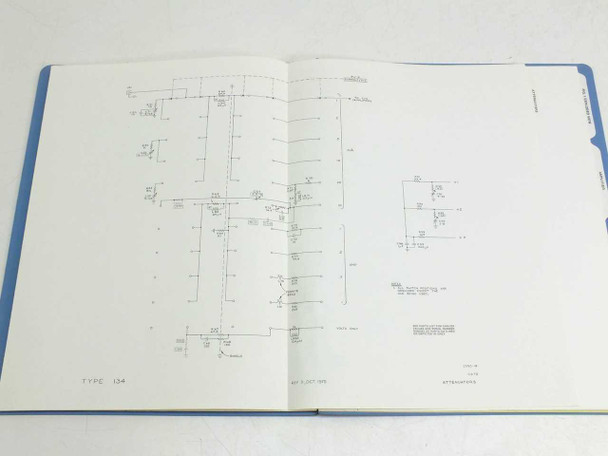

This Tektronix 134 Current Probe Amplifier Instruction Manual (pub no. 015-0057-02) has been inspected and is in good used condition. The blue spiral binding is intact, all pages appear present and legible, and the schematics and exploded parts diagrams are clean and readable. The cover shows light handling wear, and a yellow sticker dot is visible on the front. No significant markings, highlighting, or water damage noted. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Tektronix 134 Current Probe Amplifier Instruction Manual (pub no. 015-0057-02) has been inspected and is in good used condition. The blue spiral binding is intact, all pages appear present and legible, and the schematics and exploded parts diagrams are clean and readable. The cover shows light handling wear, and a yellow sticker dot is visible on the front. No significant markings, highlighting, or water damage noted. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Tektronix |
Model: |
134 |
MPN: |
015-0057-02 |
Type: |
Instruction Manual |
SKU: |
37584 |
Document Type: |
Instruction Manual |
For Make/Brand: |
Tektronix |
For Model/Product: |
134 Current Probe Amplifier |
Publication Number: |
015-0057-02 |
Language: |
English |
Format: |
Printed / Hardcopy |
Binding: |
Spiral-Bound |
Seller Notes: |
Manual only; includes schematics and exploded parts diagrams. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Tektronix 134 Current Probe Amplifier Instruction Manual (015-0057-02). Inspected; good used condition. Spiral binding intact, all pages present and legible, schematics clean. Light cover wear, yellow sticker on front. No water damage noted. |
