Description
Tektronix 5A38 Dual Trace Amplifier Plug-In Module 35MHz 5000 Series Oscilloscope
This dual-trace vertical amplifier plug-in module is designed for Tektronix 5000 Series oscilloscopes. It provides two independent channels for simultaneous signal measurement and conditioning.
Specifications & What's Included
- Bandwidth: 35 MHz (DC-coupled)
- Channels: 2 (CH1, CH2)
- Sensitivity: 10 mV/div
- Input Impedance: 1 MΩ, 20 pF
- Maximum Input Voltage: 250V peak
- Coupling Options: AC, GND, DC
- Module only; no mainframe or accessories included
Applications
Common use includes laboratory signal analysis, troubleshooting, and measurement tasks requiring dual-channel vertical amplification on compatible Tektronix 5000 Series mainframes.
Condition: Used

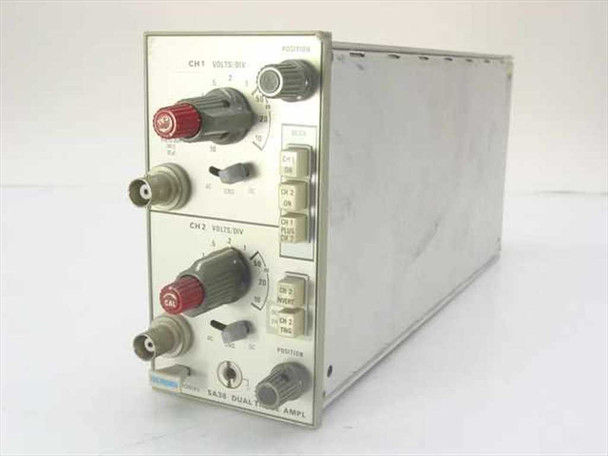

This Tektronix 5A38 Dual Trace Amplifier Plug-In Module shows typical cosmetic wear consistent with prior lab use. The front panel, knobs, and BNC connectors appear intact with no obvious physical damage visible in photos. The module has not been bench-tested at our facility. Please view our photo set and contact us with any questions before purchasing. We may have multiple units of this item in stock; the unit you receive may vary slightly from the photos but is functionally equivalent and inspected to the same standard.
This Tektronix 5A38 Dual Trace Amplifier Plug-In Module shows typical cosmetic wear consistent with prior lab use. The front panel, knobs, and BNC connectors appear intact with no obvious physical damage visible in photos. The module has not been bench-tested at our facility. Please view our photo set and contact us with any questions before purchasing. We may have multiple units of this item in stock; the unit you receive may vary slightly from the photos but is functionally equivalent and inspected to the same standard.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Tektronix |
Model: |
5A38 |
MPN: |
5A38 |
SKU: |
24936 |
Condition: |
Used – Inspected |
Form Factor: |
Plug-In Module |
Compatible With: |
Tektronix 5000 Series Oscilloscopes |
Measurement Type: |
Dual Trace Vertical Amplifier |
Bandwidth: |
35 MHz (DC-coupled) |
Channels: |
2 (CH1, CH2) |
Sensitivity: |
10 mV/div |
Input Impedance: |
1 MΩ, 20 pF |
Max Input Voltage: |
250V peak |
Coupling: |
AC, GND, DC |
Country of Manufacture: |
United States |
Seller Notes: |
Module only; no mainframe or accessories included. |
Condition Notes: |
This Tektronix 5A38 Dual Trace Amplifier Plug-In Module shows typical cosmetic wear consistent with prior lab use. The front panel, knobs, and BNC connectors appear intact with no obvious physical damage visible in photos. |
