Tektronix 5A38 Dual Trace 35MHz Dual-Channel Vertical Plug-In 5400 Series MOD

(No reviews yet) Write a Review
SKU:
40664
MPN:
5A38
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
7.00 LBS
Shipping:
Calculated at Checkout

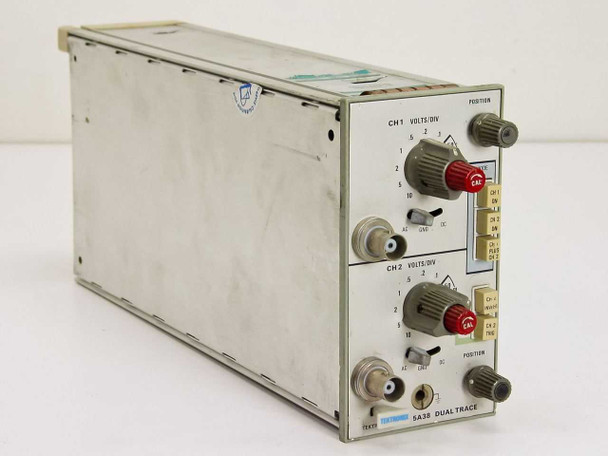

  • Tektronix 5A38 Dual Trace vertical plug-in module – angled front and side view showing CH1 and CH2 VOLTS/DIV knobs and BNC inputs

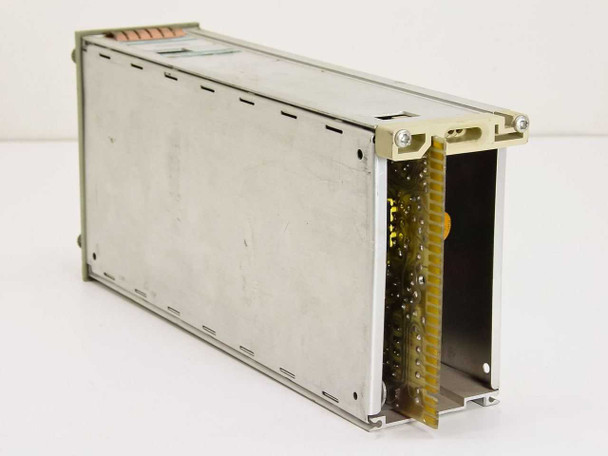

  • Tektronix 5A38 plug-in module – rear connector view showing gold edge connector pins for 5400 series mainframe interface

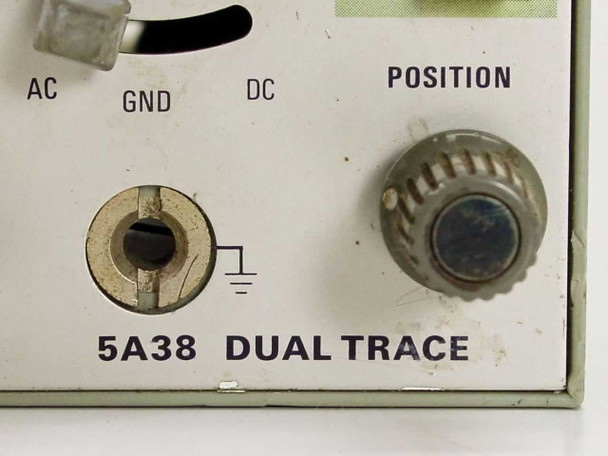

  • Tektronix 5A38 Dual Trace label detail – close-up of lower front panel showing BNC input, AC/GND/DC coupling switch, and POSITION knob

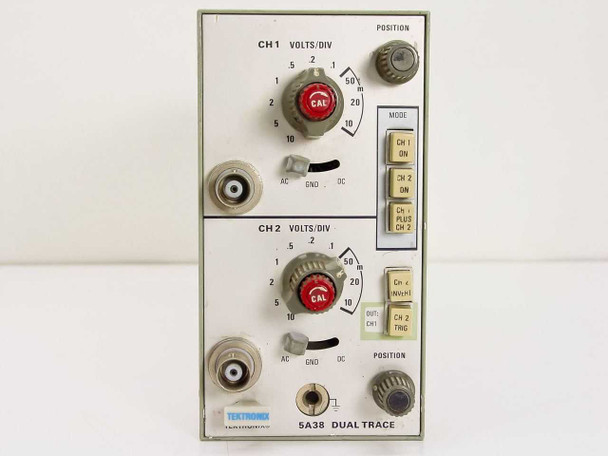

  • Tektronix 5A38 Dual Trace – front panel view showing CH1 and CH2 VOLTS/DIV controls with CAL detents, MODE selector, and coupling switches

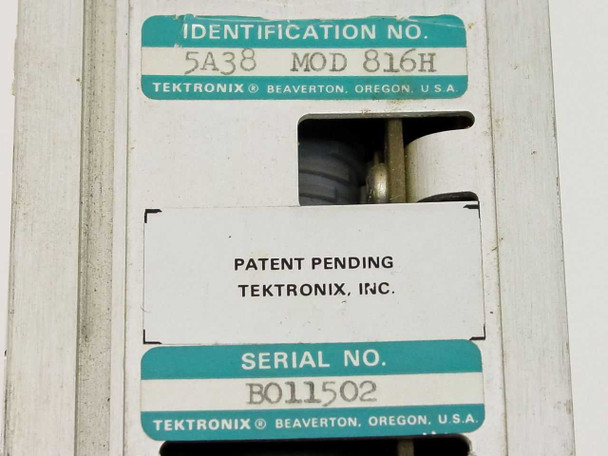

  • Tektronix 5A38 MOD 816H identification label and serial number label on module side – Beaverton Oregon USA
$117.00
Was: $180.00
Current Stock: 1

Sold Out

Description

Tektronix 5A38 Dual Trace 35MHz Dual-Channel Vertical Plug-In 5400 Series MOD 816H

Dual-channel vertical amplifier plug-in module for Tektronix 5400 Series oscilloscope mainframes. Provides 35 MHz bandwidth with dual-trace capability and switchable coupling modes (AC, GND, DC).

Specifications & What's Included

  • Model: 5A38 (MOD 816H)
  • Bandwidth: 35 MHz
  • Channels: 2 (Dual Trace)
  • Sensitivity: 5 mV/div to 10 V/div
  • Deflection Modes: CH1, CH2, ALT, CHOP, CH2 Invert
  • Input: BNC connectors
  • Coupling: AC, GND, DC
  • Compatible with Tektronix 5400 Series mainframes only
  • Plug-in module only—mainframe not included

Applications

Used for dual-channel signal observation and measurement in lab and service environments with general-purpose test equipment.

Condition: Used
This Tektronix 5A38 Dual Trace vertical plug-in has been visually inspected and shows typical wear consistent with lab use — light surface marks and general aging visible on the chassis and panel. The module has not been bench-tested at our facility. Sold as used surplus. Please view our photo set and contact us with any questions before purchasing.
