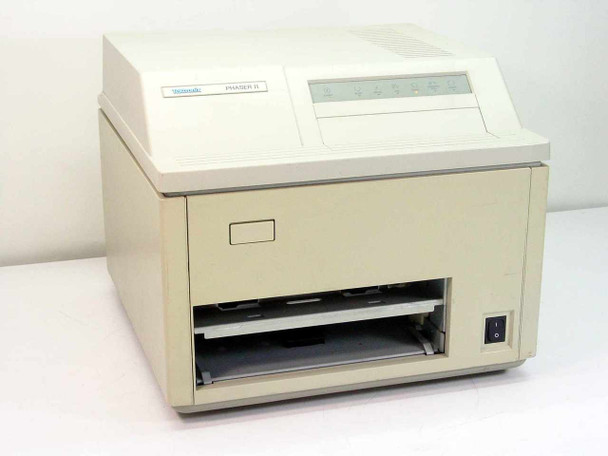

Tektronix 4694PXi Phaser II PXi Wax Thermal Color Printer Serial SCSI AppleTalk
The Tektronix 4694PXi is a desktop wax thermal transfer color printer from Tektronix's Phaser II PXi line, produced circa 1991. Unlike laser printers, the Phaser II PXi uses solid wax ink technology — a wax ribbon is thermally transferred to produce full-color output. This unit is being sold as-is for parts or repair; please see the condition block below before purchasing.
Specifications & What's Included
- Make: Tektronix
- Model: 4694PXi / Phaser II PXi
- Print Technology: Wax thermal transfer (solid ink) — NOT laser
- Output: Full color
- Firmware: PXi Firmware v1.23 (©Tektronix 1991)

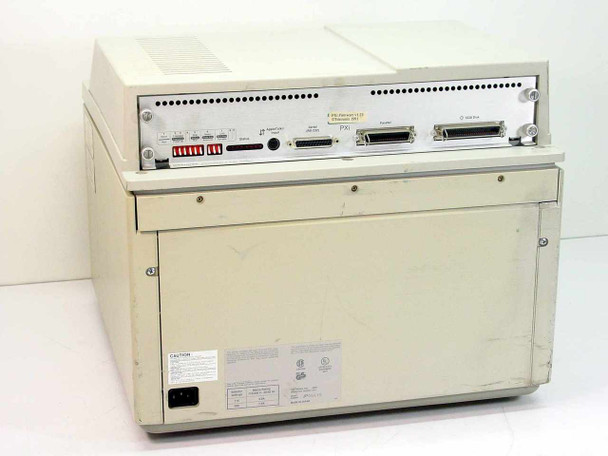

- Interface — Serial: RS-232 (DB25 connector)
- Interface — Parallel: Centronics (large parallel connector)
- Interface — Storage: SCSI Disk (Centronics connector)
- Interface — Network: AppleTalk (DIN connector)
- Rear DIP switch configuration: 9 banks (Reset/Run, Extended Diagnostics, Power Up, Skip/StartJob/Run, Metric/Paper Size/American, Baud Rate 1200/Variable)

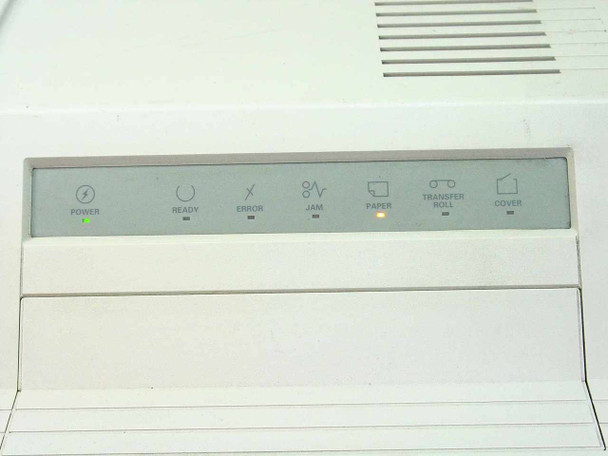

- Front panel indicators: Power, Ready, Error, Jam, Paper, Transfer Roll, Cover (LED array)
- Form factor: Desktop
- Includes: Power cord, color wax ink ribbon (magenta and green/yellow loaded)
Applications
The Tektronix Phaser II series was introduced in the late 1980s and early 1990s as one of the first desktop printers capable of producing vivid, near-photographic color output using solid wax technology. These printers were widely used in graphic arts, pre-press proofing, design studios, and engineering departments where color accuracy was critical and laser color printers were either unavailable or prohibitively expensive. The Phaser II PXi was a premium model within the line, offering SCSI disk and AppleTalk connectivity in addition to standard serial and parallel interfaces, making it well-suited for Macintosh and mixed Mac/PC environments common in creative workplaces of that era. Today these printers are sought by vintage computing enthusiasts and collectors restoring period-accurate workstation setups, as well as technicians sourcing parts for other Phaser II units still in service.
This Tektronix 4694PXi Phaser II PXi Wax Thermal Color Printer is being sold as-is for parts or repair. The front panel shows the PAPER and TRANSFER ROLL indicator LEDs lit amber, suggesting the unit has known issues and may require service or replacement parts. The interior mechanism appears intact with a color wax ribbon (magenta and green/yellow) loaded. The exterior shows general cosmetic wear consistent with prior use. A power cord and color wax ink ribbon are included. This unit has not been tested at our facility and is not guaranteed functional. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Tektronix |
Model: |
4694PXi |
MPN: |
4694PXi |
Secondary Model: |
Phaser II PXi |
Type: |
Wax Thermal Transfer Color Printer |
SKU: |
8497 |
Seller Notes: |
Includes power cord and color wax ink ribbon |
Firmware Version: |
PXi Firmware v1.23 (©Tektronix 1991) |
Print Technology: |
Wax Thermal Transfer (Solid Ink) |
Color Output: |
Yes — Color |
Interface 1: |
Serial (RS-232) — DB25 |
Interface 2: |
Parallel (Centronics) |
Interface 3: |
SCSI Disk |
Interface 4: |
AppleTalk (DIN connector) |
Front Panel Indicators: |
Power, Ready, Error, Jam, Paper, Transfer Roll, Cover |
Configuration: |
DIP switch banks (9 banks) on rear panel |
Form Factor: |
Desktop |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This Tektronix 4694PXi Phaser II PXi Wax Thermal Color Printer is sold as-is for parts or repair. Front panel shows PAPER and TRANSFER ROLL LEDs lit amber. Not tested; no functionality guarantee. Includes power cord and color wax ribbon. |
