Description
Tektronix Phaser IIsd 4684 Color Thermal Wax Transfer Printer RS-232 Ethernet
Desktop color thermal wax transfer printer from Tektronix. Uses color transfer roll media to produce color prints via thermal transfer technology. Designed for document and graphic output in networked environments.
Specifications & What's Included
- Model: Phaser IIsd 4684 (U.S. manufacture)
- Print Technology: Thermal Wax Transfer (Color Transfer Roll)

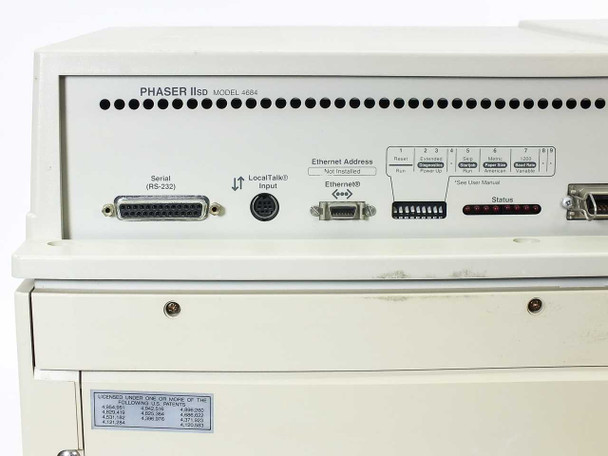

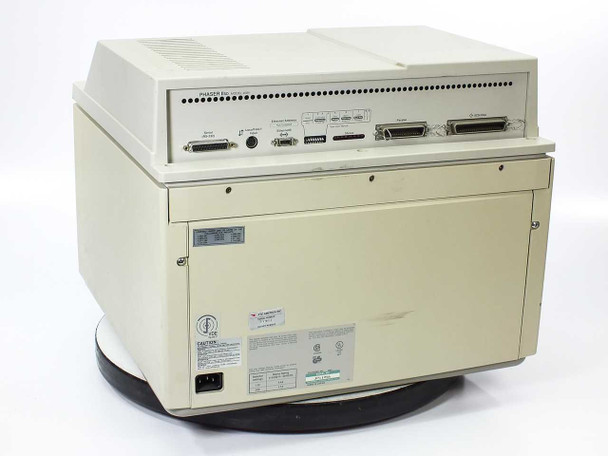

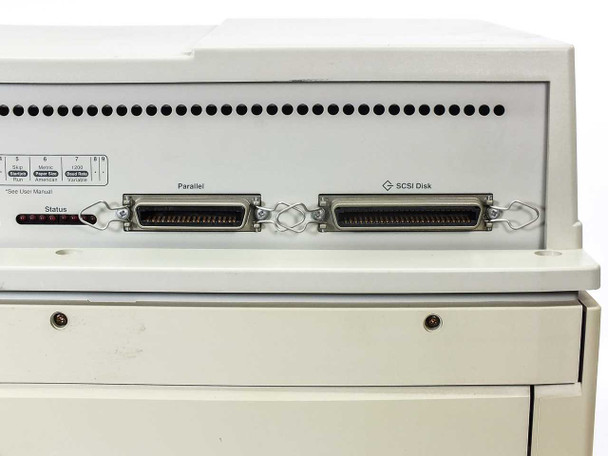

- Connectivity: RS-232 (DB-25), Ethernet (DB-15), LocalTalk (mini-DIN), Parallel (Centronics 36-pin), SCSI Disk (Centronics 50-pin)
- Power: 120V AC via IEC inlet
- Dimensions: 24" W × 20" D × 18" H
- Front Panel Indicators: Power, Ready, Error, Jam, Paper, Transfer Roll, Cover
- No consumables included—no toner, ink, ribbon, or media
Applications
Thermal wax transfer printers were widely used for color document output, presentation materials, and graphic proofs in design, publishing, and corporate environments from the 1990s through early 2000s. Compatible with legacy systems using RS-232, parallel, Ethernet, and LocalTalk networks. Typically interfaced with workstations, servers, and print spoolers on older Mac and PC networks.
Condition: For Parts or Not Working

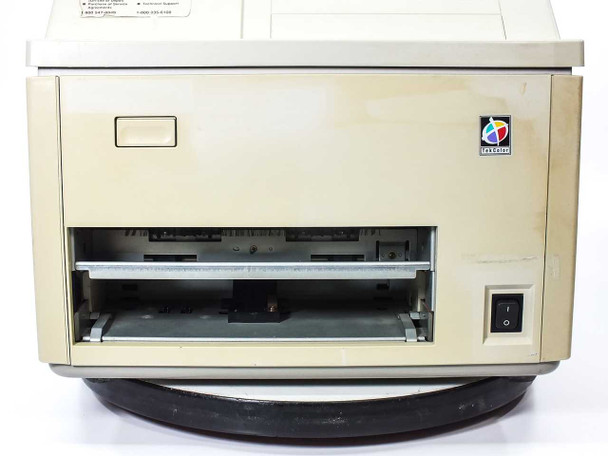

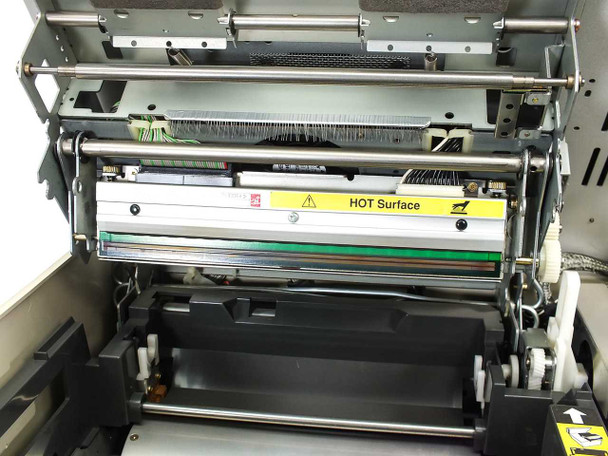

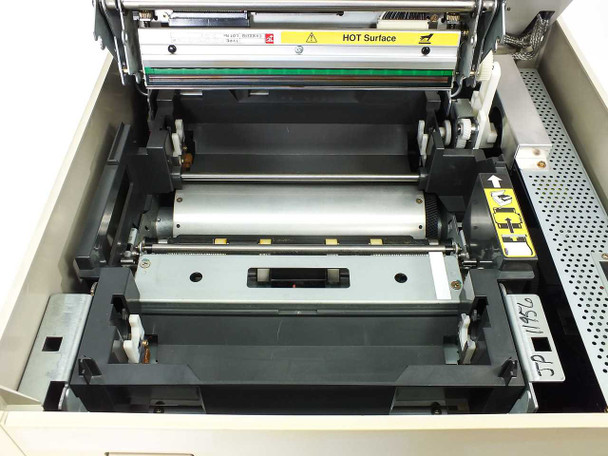

This Tektronix Phaser IIsd Model 4684 Color Thermal Wax Transfer Printer powers on but has not been tested beyond that. It is being sold AS-IS for parts or repair with no functionality guarantee. No toner, ink, ribbon, or media is included — the unit uses Color Transfer Rolls, none of which are present. The exterior shows some yellowing on the plastic housing, consistent with age, but the overall structure appears intact. The internal transfer roll mechanism and paper path are visible and appear complete. Due to its size and weight (approximately 75 lbs, 24" x 20" x 18"), this item requires special shipping — please contact us for a freight quote, to arrange local pickup, or to schedule a viewing at our facility. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Tektronix Phaser IIsd Model 4684 Color Thermal Wax Transfer Printer powers on but has not been tested beyond that. It is being sold AS-IS for parts or repair with no functionality guarantee. No toner, ink, ribbon, or media is included — the unit uses Color Transfer Rolls, none of which are present. The exterior shows some yellowing on the plastic housing, consistent with age, but the overall structure appears intact. The internal transfer roll mechanism and paper path are visible and appear complete. Due to its size and weight (approximately 75 lbs, 24" x 20" x 18"), this item requires special shipping — please contact us for a freight quote, to arrange local pickup, or to schedule a viewing at our facility. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Tektronix |
Model: |
Phaser IIsd |
MPN: |
4684 |
Type: |
Color Thermal Wax Transfer Printer |
SKU: |
19691 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
No toner, ink, ribbon, or media included. Sold AS-IS — powers on only. |
Country/Region of Manufacture: |
United States |
Form Factor: |
Desktop |
Print Technology: |
Thermal Wax Transfer (Color Transfer Roll) |
Color Printing: |
Yes |
Interface: |
RS-232 (Serial), LocalTalk, Ethernet, Parallel, SCSI Disk |
Connectivity: |
RS-232, LocalTalk, Ethernet, Parallel, SCSI |
Serial Interface: |
RS-232 (DB-25) |
Network Interface: |
Ethernet (DB-15), LocalTalk (mini-DIN) |
Additional Interfaces: |
Parallel (Centronics 36-pin), SCSI Disk (Centronics 50-pin) |
Ethernet Status: |
Ethernet port present; address label reads 'Not Installed' |
Front Panel Indicators: |
Power, Ready, Error, Jam, Paper, Transfer Roll, Cover |
Dimensions: |
24" W x 20" D x 18" H (approx.) |
Compatible Media: |
Color Transfer Rolls (no consumables included) |
Power Requirements: |
120V AC (visible IEC inlet on rear) |
Condition Notes: |
Tektronix Phaser IIsd 4684 Color Printer powers on but has not been tested further. Sold AS-IS for parts or repair — no functionality guarantee. No consumables included. Special shipping required — contact us for a quote. |
