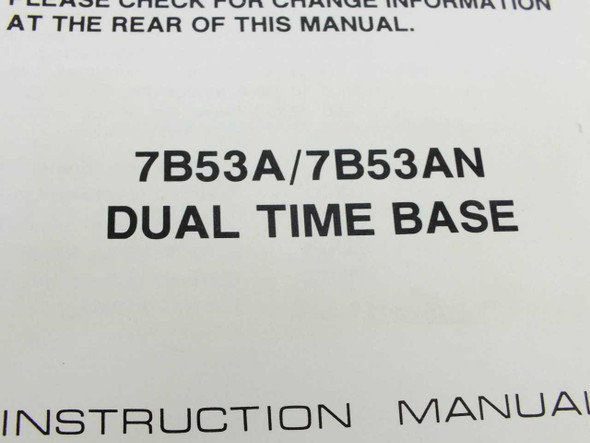

Tektronix 070-1342-01 7B53A 7B53AN Dual Time Base Instruction Manual

Tektronix 070-1342-01 7B53A 7B53AN Dual Time Base Instruction Manual

This is an original Tektronix Instruction Manual for the 7B53A and 7B53AN Dual Time Base plugin modules, which are horizontal-sweep time base units designed for use with Tektronix 7000-Series oscilloscopes. The Dual Time Base provides dual time-domain sweep capability for advanced signal analysis and comparison measurements on compatible oscilloscope mainframes.

Specifications & What's Included

• Manufacturer: Tektronix
• Publication Number: 070-1342-01
• Product: 7B53A and 7B53AN Dual Time Base Modules
• Document Type: Instruction Manual
• Complete original manual with all pages present

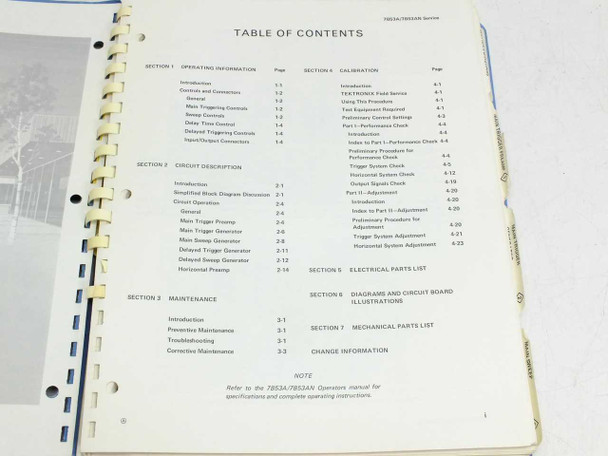

• Includes operating instructions, control descriptions, and service information
• Electrical characteristics and specifications

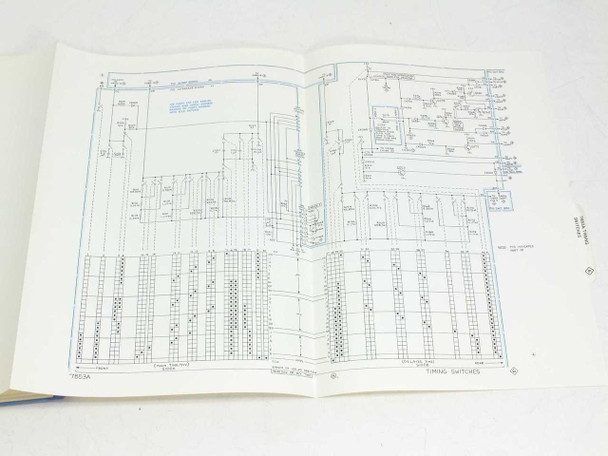

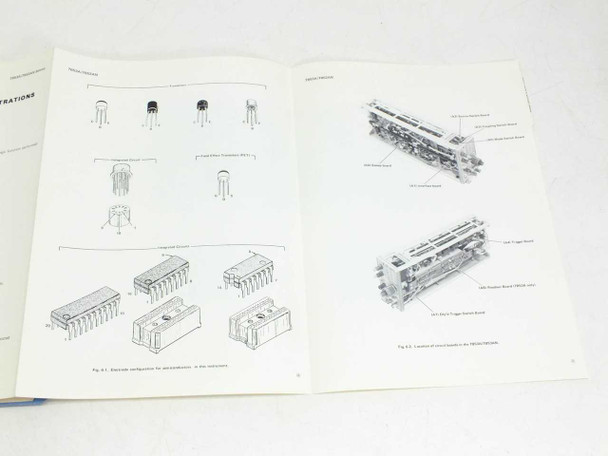

• Block diagrams and circuit information

Applications

Used as reference documentation for installation, operation, and maintenance of Tektronix 7B53A and 7B53AN Dual Time Base modules in laboratory and test environments. Essential for technicians and operators working with 7000-Series Tektronix oscilloscopes requiring dual time-base measurement capability.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.
