Tektronix 7B92A Dual Time Base Service & Operators Manual 070-1761-00 1974 7000

(No reviews yet) Write a Review
SKU:
28903
MPN:
7B92A
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout

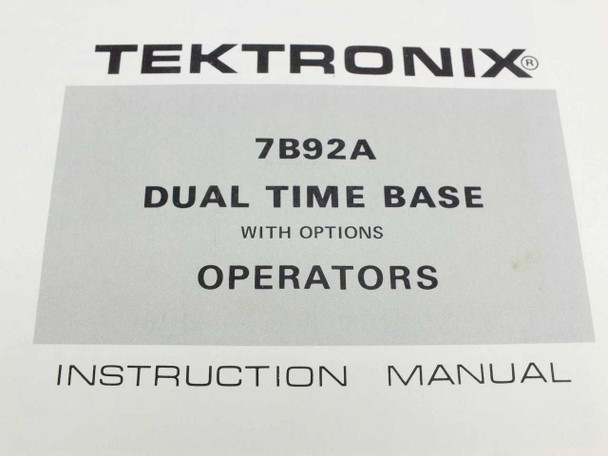

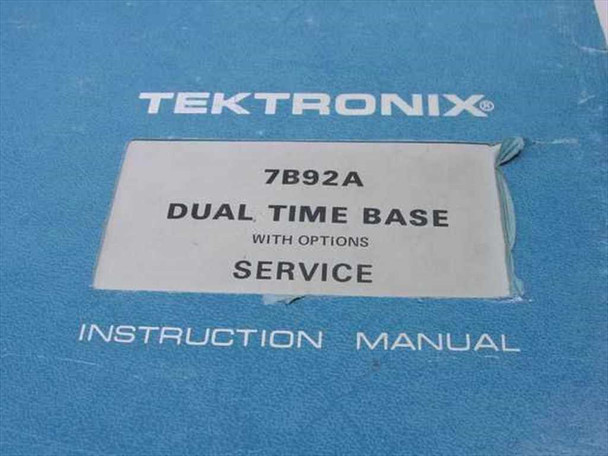

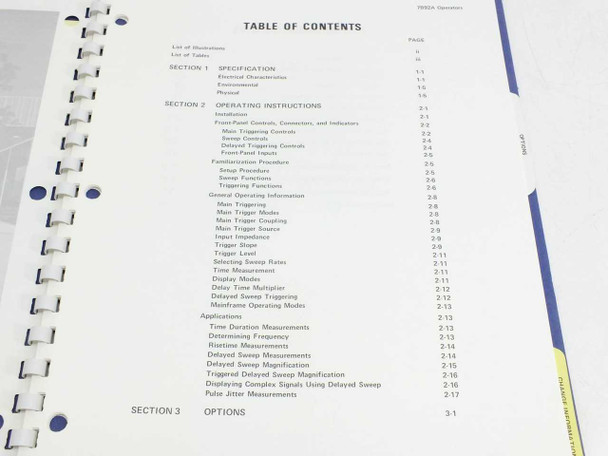

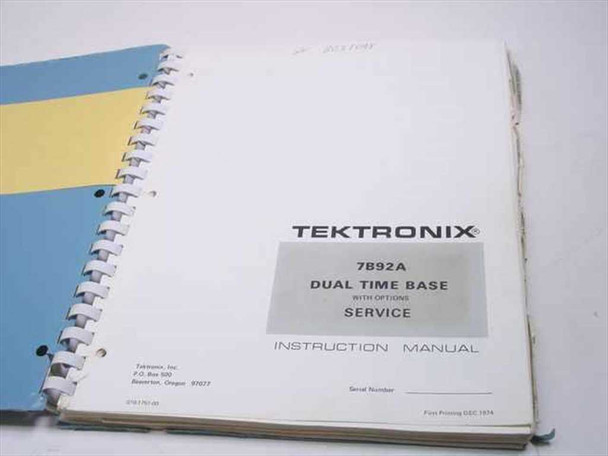

  • Tektronix 7B92A Dual Time Base with Options Instruction Manual
  • Tektronix 7B92A Dual Time Base with Options Instruction Manual
  • Tektronix 7B92A Dual Time Base with Options Instruction Manual
  • Tektronix 7B92A Dual Time Base with Options Instruction Manual
  • Tektronix 7B92A Dual Time Base with Options Instruction Manual
  • Tektronix 7B92A Dual Time Base with Options Instruction Manual
  • Tektronix 7B92A Dual Time Base with Options Instruction Manual
$18.30
Was: $50.00
Current Stock: 1

Sold Out

Description

Tektronix 7B92A Dual Time Base Service & Operators Manual 070-1761-00 1974 7000

This listing includes two original Tektronix instruction manuals for the 7B92A Dual Time Base with Options plug-in: the Service Instruction Manual and the Operators Instruction Manual. The 7B92A is a dual time base plug-in module designed for the Tektronix 7000-series oscilloscopes, providing delayed-sweep and mixed-sweep timing functions. Both manuals are spiral-bound original prints.

Specifications & What's Included

  • Manufacturer: Tektronix, Inc., Beaverton, Oregon
  • Model: 7B92A Dual Time Base with Options
  • Includes: Service Instruction Manual + Operators Instruction Manual
  • Publication Number: 070-1761-00
  • First Printing: December 1974
  • Format: Spiral-bound printed manuals
  • Compatible with: Tektronix 7000-series oscilloscope mainframes

Applications

Reference manuals for technicians and engineers servicing or operating the Tektronix 7B92A Dual Time Base plug-in in 7000-series oscilloscope mainframes. Covers circuit theory, calibration procedures, and operating instructions.

View AllClose

Warranty Information

Sold as-is. No warranty is expressed or implied. Please review all photos and contact us with any questions before purchasing.
View AllClose
