Tecumseh AE9417EG Air Cooled Refrigeration Compressor Unit 115V 60Hz For Parts

Tecumseh AE9417EG Air Cooled Refrigeration Compressor Unit 115V 60Hz For Parts

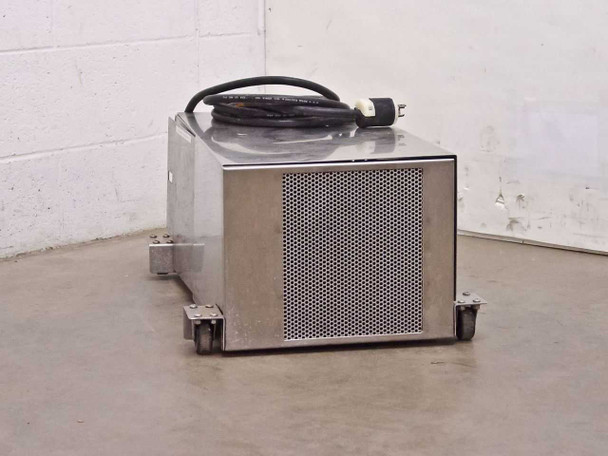

The Tecumseh AE9417EG is an air cooled refrigeration compressor assembly housed in a compact stainless steel enclosure on caster wheels. This unit centers on a Tecumseh AE162AT-907-P2 hermetic compressor and includes the associated condenser coil, condenser fan, motor starting capacitor, solid state relays, terminal block, and control wiring — everything except the circulation pump, which is not included. The unit is being sold as-is for parts or repair; we were unable to fully test it at our facility.

Specifications & What's Included

• Manufacturer: Tecumseh Products Co., Made in USA
• Unit Model: AE9417EG
• BM Number: 28474-9
• Compressor Model: AE162AT-907-P2 (Tecumseh hermetic compressor)
• Compressor Voltages: V105-60-1 / V100-50-1 (115V, 60Hz, Single Phase)
• Compressor LRA: 29.0 A
• Refrigerant Oil: Alkylbenzene oil (as labeled on compressor)
• Motor Starting Capacitor: Philips 85PS110A74 — 243–292 MFD, 110VAC, 60Hz, for motor starting
• Solid State Relays: Three (3) Crydom D2425 — 240V output, 25A, 3–32VDC input (labeled Heater, Pump, and one additional)
• Terminal block with multi-conductor wiring harness
• Condenser coil and perforated condenser panel (stainless steel)
• Axial condenser fan assembly
• Insulated refrigerant / fluid lines with copper tubing
• Freestanding stainless steel enclosure on four caster wheels
• External fluid fittings on rear panel
• Power cord with twist-lock plug
• Overall Dimensions: 28" L x 20" W x 13" H
• Pump: NOT included — unit is sold without the circulation pump

Applications

Tecumseh AE-series hermetic compressors are used widely in laboratory chillers, process cooling equipment, and small refrigeration systems. The AE9417EG-style assembly — combining a hermetic compressor, condenser, fan, and control relays in a self-contained enclosure — is typical of recirculating chillers used to cool lasers, analytical instruments, semiconductor process tools, and other heat-generating laboratory or light industrial equipment. Crydom solid state relays like the D2425 units visible here are standard in temperature-controlled systems, switching heater and pump loads under microcontroller or thermostat command. This unit is suited for buyers seeking a compressor assembly or components for repair, rebuild, or integration into a custom cooling circuit. Because the pump is absent, the unit as-is is not a complete chiller — it is appropriate for parts salvage or for a builder who will supply their own pump and controls.
