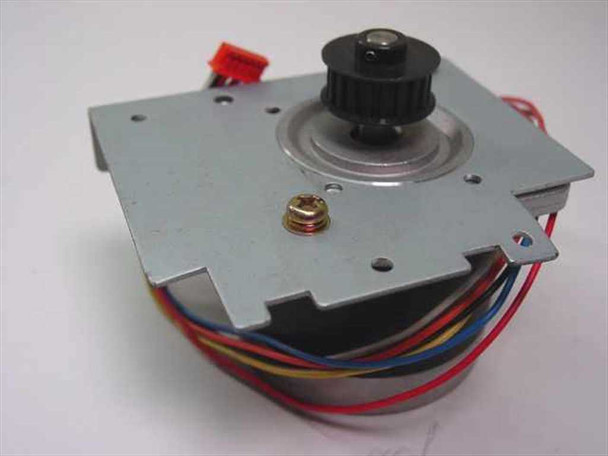

TEC SPH-54AB-116 Unipolar Stepper Motor 2.1V 1.4 Ohm 1.8 Deg/Step Tokyo Electric
Unipolar stepper motor manufactured by Tokyo Electric Co., Ltd. Delivers 200 steps per revolution with 1.8-degree step angle. Operates at 2.1V with 1.4 ohm coil resistance.
Specifications & What's Included
- Model: SPH-54AB-116
- Type: Unipolar Stepping Motor
- Voltage Rating: 2.1V
- Coil Resistance: 1.4 Ohm
- Step Angle: 1.8 Degrees per Step (200 steps per revolution)

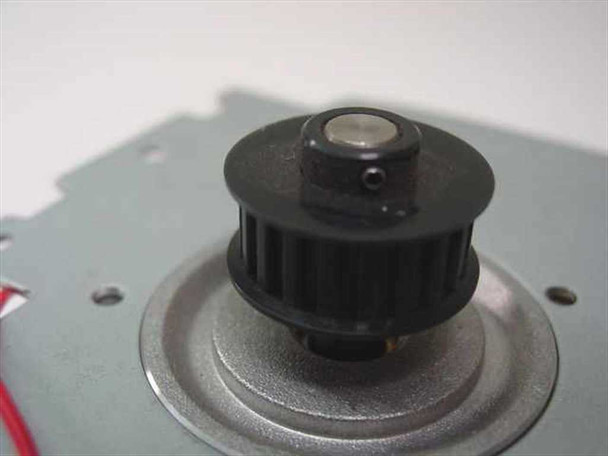

- Shaft Output: Timing pulley installed on shaft
- Connector: Multi-pin red housing connector with flying leads
- Mount: Flange-mount with mounting bracket
- Origin: Japan
Applications
Unipolar stepper motors are used in positioning systems, document feeders, printers, and industrial automation equipment. This motor type is common in legacy telecom and office equipment from the 1990s-2000s. The integrated timing pulley indicates use in belt-driven drive systems for precise mechanical indexing.
Condition: Used
This TEC SPH-54AB-116 unipolar stepper motor has been inspected and is in good used condition. The motor body shows light surface wear consistent with prior use, and the label on the motor face has some dirt and scuffing but remains legible. The timing pulley on the shaft and the multi-pin connector harness are both present and intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This TEC SPH-54AB-116 unipolar stepper motor has been inspected and is in good used condition. The motor body shows light surface wear consistent with prior use, and the label on the motor face has some dirt and scuffing but remains legible. The timing pulley on the shaft and the multi-pin connector harness are both present and intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
TEC (Tokyo Electric Co., Ltd.) |
Model: |
SPH-54AB-116 |
MPN: |
SPH-54AB-116 |
Type: |
Unipolar Stepping Motor |
SKU: |
29555 |
Voltage Rating: |
2.1V |
Coil Resistance: |
1.4 Ohm |
Step Angle: |
1.8 Degrees per Step |
Steps per Revolution: |
200 |
Motor Configuration: |
Unipolar |
Lot Number: |
2106 |
Shaft Output: |
Timing Pulley (toothed, installed on shaft) |
Connector Type: |
Multi-pin red housing connector, flying leads |
Country/Region of Manufacture: |
Japan |
Form Factor: |
Flange-mount with mounting bracket |
Seller Notes: |
Includes installed timing pulley and multi-pin connector harness. |
Condition: |
Used – Inspected and in Good Condition |
Review Status: |
Auto-Approved (needs review) 2026-07-04 |
Condition Notes: |
TEC SPH-54AB-116 unipolar stepper motor. Inspected and in good used condition. Light surface wear on motor body; label legible. Timing pulley and multi-pin connector harness included. Please contact us with any questions. |
