Description
Teapo TP333B 215W Power Supply NCR Class 3433 Model 5000 P/N 150-0013661
Internal power supply unit designed for NCR Class 3433 Model 5000 point-of-sale systems. Converts AC input to multiple regulated DC outputs for system operation.
Specifications & What's Included
- Brand: Teapo Electronic Corp
- Model: TP333B (Rev B)
- Power Output: 215W
- Input: 115VAC/230VAC, 47–63Hz (115VAC 6A / 230VAC 3A)
- Output: +5VDC 32A, +12VDC 4A, -5VDC 0.5A, -12VDC 0.5A
- Fan: Nidec Beta V TA225DC
- Certifications: UL, CSA
- Manufacture: Taiwan
Applications
This supply was standard equipment in NCR Class 3433 Model 5000 retail point-of-sale terminals used in commercial and retail environments. The unit provides necessary power distribution to processor boards, displays, and peripherals within the POS system. Compatible only with NCR Class 3433 Model 5000 hardware.
Condition: Used

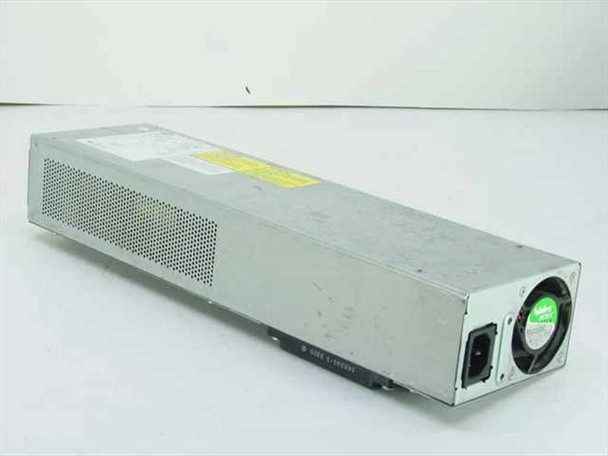

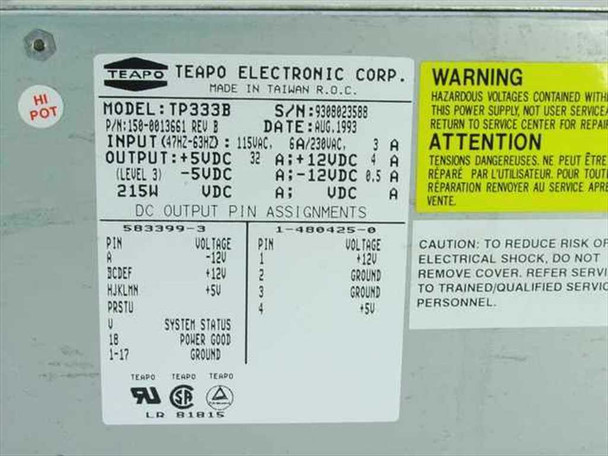

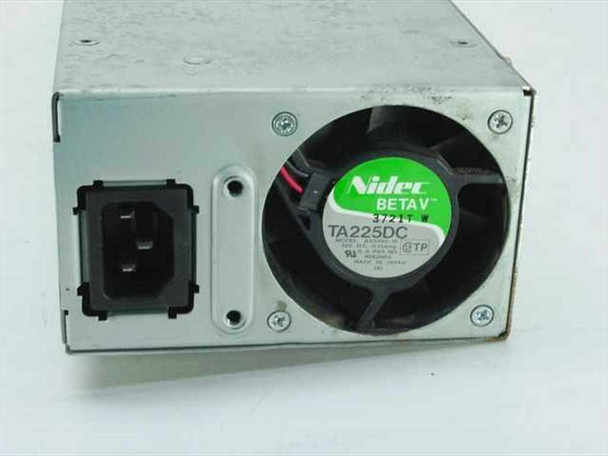

This Teapo TP333B 215W power supply has been tested at our facility and is in good working order. The unit was pulled from an NCR Class 3433 Model 5000 system. Cosmetically, the chassis shows typical wear consistent with prior deployment — light scuffing and minor surface marks on the outer casing are visible, but the unit is structurally sound. The specification label is intact and fully legible, and the Nidec Beta V cooling fan and IEC AC inlet are in good condition. Please view our photo set and contact us if you have any questions.
This Teapo TP333B 215W power supply has been tested at our facility and is in good working order. The unit was pulled from an NCR Class 3433 Model 5000 system. Cosmetically, the chassis shows typical wear consistent with prior deployment — light scuffing and minor surface marks on the outer casing are visible, but the unit is structurally sound. The specification label is intact and fully legible, and the Nidec Beta V cooling fan and IEC AC inlet are in good condition. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Teapo Electronic Corp |
Model: |
TP333B |
MPN: |
150-0013661 |
SKU: |
12048 |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Pulled from NCR Class 3433 Model 5000; tested and in working order |
Form Factor: |
Proprietary Sled / Internal |
Compatible With: |
NCR Class 3433 Model 5000 |
Country of Manufacture: |
Taiwan |
Power Requirements: |
115VAC / 230VAC, 47–63Hz |
Input Voltage: |
115VAC 6A / 230VAC 3A |
Power Output: |
215W |
Output Voltages: |
+5VDC 32A, +12VDC 4A, -5VDC 0.5A, -12VDC 0.5A |
Revision: |
Rev B |
Fan: |
Nidec Beta V TA225DC |
Certifications: |
UL, CSA |
Condition Notes: |
This Teapo TP333B 215W power supply has been tested at our facility and is in good working order. The unit was pulled from an NCR Class 3433 Model 5000 system. |
