Description
TCL Inc 2110-2BDM MP Transceiver Dual Port Plug-In Module Card DB15

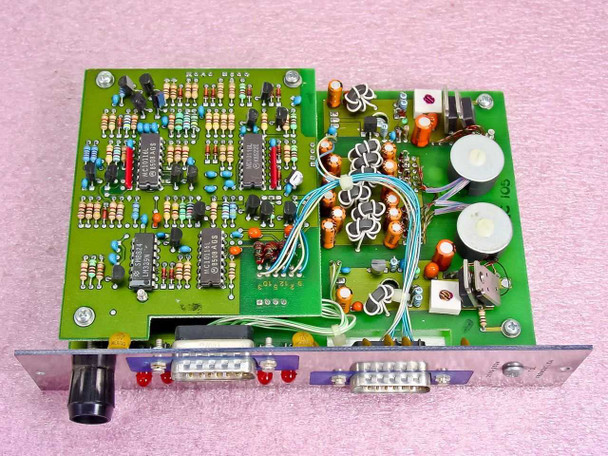

The TCL Inc 2110-2BDM is a dual-port MP Transceiver plug-in card module manufactured by TCL Inc of Fremont, California. The module mounts in a card chassis or rack frame via its edge connector and presents two DB15 connectors on the front panel along with POWER and AMI LED status indicators and a front-panel push-button. The PCB carries a mix of through-hole ICs, discrete components, and a transformer assembly, consistent with a data transceiver or line interface card design.
Specifications & What's Included
- Manufacturer: TCL Inc, Fremont, CA 94539
- Model: 2110-2BDM
- Description: MP Transceiver, Dual Port
- Form Factor: Plug-in card / module with metal front panel
- Front Panel Connectors: Two (2) DB15 connectors
- Front Panel Indicators: POWER LED, AMI LED
- Front Panel Control: One push-button
- Interface: Edge connector (card-bus style) for chassis mounting
- PCB: Green through-hole PCB with ICs, capacitors, resistors, inductors, and wiring harness
- Includes: Module card only — no chassis, no cables
Applications
TCL Inc produced plug-in transceiver modules for industrial data communication and control systems during the 1980s and early 1990s. Dual-port transceiver cards of this type were used in modular card-cage or rack-frame systems to provide signal conversion, line driving, or data interfacing between equipment on a shared communications bus — common in process control, SCADA, and industrial data acquisition environments of that era. The front-panel AMI (Alternate Mark Inversion) indicator is characteristic of T1/digital line interface or multi-point serial communication cards used in telecom and industrial networking applications. These modular card systems allowed facilities to mix and match function cards within a single chassis, making individual card replacements straightforward for maintenance teams. Buyers today typically seek these modules for legacy system maintenance, spare-parts inventory, or repair of existing installations still running original equipment.
This TCL Inc 2110-2BDM MP Transceiver Dual Port Plug-In Module is in used condition. It was pulled from a working environment and has been visually inspected. The front panel and housing show typical light wear consistent with prior rack service use. Both DB15 connectors appear intact and undamaged. The module has not been bench-tested at our facility. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
TCL Inc |
Model: |
2110-2BDM |
MPN: |
2110-2BDM |
Type: |
MP Transceiver Dual Port Plug-In Module Card |
SKU: |
8477 |
Number of Ports: |
2 |
Connector Type: |
DB15 (2x DB15 on front panel) |
Form Factor: |
Plug-In Card / Module |
Indicators: |
POWER and AMI LED indicators on front panel |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Module only; no chassis or cables included. |
Condition: |
Used – Pulled from Working Environment |
Condition Notes: |
TCL Inc 2110-2BDM MP Transceiver Dual Port Module. Used, pulled from a working environment, visually inspected. Front panel and connectors appear intact. Not bench-tested. Please contact us with questions. |
