Sine Guard

TCI Sine Guard KLR2ATB Three Phase Line Reactor 600V 2A 60Hz Trans-Coil

(No reviews yet) Write a Review
SKU:
52786
MPN:
KLR2ATB
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout
  • TCI Sine Guard KLR2ATB three phase line reactor – front-left angle view showing three coil cores and Phoenix Contact terminal block

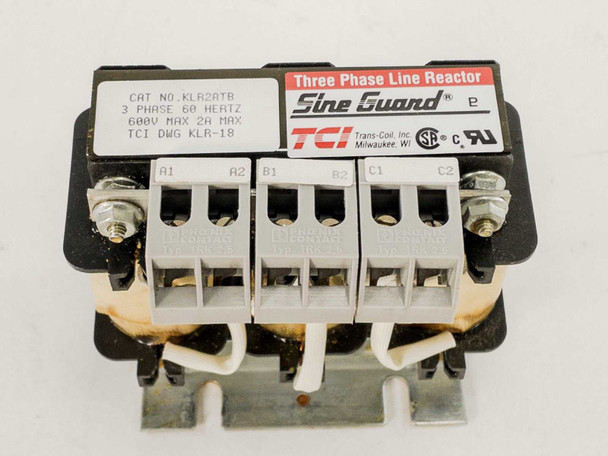

  • TCI Sine Guard KLR2ATB line reactor – top label view showing Cat No. KLR2ATB, 3 Phase 60 Hz, 600V Max 2A Max, TCI DWG KLR-18 and Sine Guard branding

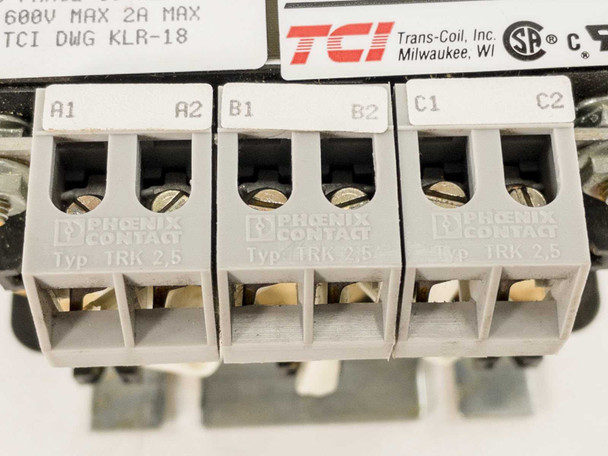

  • TCI Sine Guard KLR2ATB – close-up of Phoenix Contact Typ 1RK 2.5 screw terminals labeled A1, A2, B1, B2, C1, C2 with Trans-Coil Milwaukee WI label

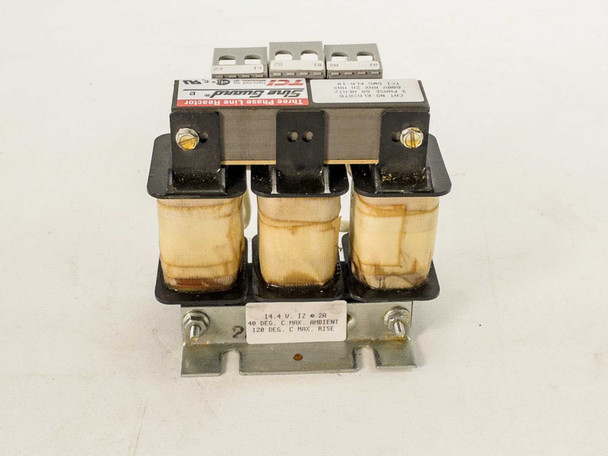

  • TCI Sine Guard KLR2ATB three phase line reactor – front view showing three wound coil cores and bottom rating plate reading 14.4V IZ 2A, 40 Deg C max ambient, 120 Deg C max rise
  • TCI Sine Guard KLR2ATB – close-up of bottom rating label: 14.4V IZ 2A, 40 DEG C MAX AMBIENT, 120 DEG C MAX RISE
  • TCI Sine Guard KLR2ATB three phase line reactor – rear view showing three coil cores and mounting bracket base
$60.00
Was: $200.00
Current Stock: 3

Sold Out

Description

TCI Sine Guard KLR2ATB Three Phase Line Reactor 600V 2A 60Hz Trans-Coil

This is a three-phase line reactor manufactured by TCI (Trans-Coil Inc.) for industrial and telecom applications. Line reactors reduce harmonic distortion and limit inrush current in three-phase electrical systems.

Specifications & What's Included

  • Model: KLR2ATB (Secondary: LR4)
  • Voltage Rating: 600V max
  • Current Rating: 2A max
  • Frequency: 60 Hz
  • Impedance Voltage: 14.4V IZ
  • Max Ambient Temperature: 40°C
  • Max Temperature Rise: 120°C
  • Terminal Type: Phoenix Contact Screw Terminal (1RK 2.5)
  • Form Factor: Open Frame / DIN Mount
  • Certifications: UL, CE, CSA
  • Manufactured in Milwaukee, WI
  • Unit only; no accessories included

Applications

Three-phase line reactors are used in industrial control systems, variable frequency drives (VFDs), and telecom power distribution to suppress harmonic currents and reduce electromagnetic interference. This reactor is rated for systems operating at 600V, 60 Hz three-phase configurations typical of North American industrial facilities. The 2A rating accommodates lower-current control circuits and signal conditioning equipment common in telecommunications and process control installations.

Condition: Used
This TCI Sine Guard KLR2ATB three phase line reactor has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The three coil cores show some discoloration and aging consistent with normal service, and there is light surface oxidation on the mounting bracket. The Phoenix Contact screw terminal block is intact and all six terminal positions (A1, A2, B1, B2, C1, C2) are present and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
TCI (Trans-Coil Inc.)
Model:
KLR2ATB
MPN:
KLR2ATB
Secondary Model:
LR4
Type:
Three Phase Line Reactor
SKU:
52786
Series:
Sine Guard
TCI Drawing Number:
KLR-18
Phase:
Three Phase
Voltage Rating:
600V Max
Current Rating:
2A Max
Frequency:
60 Hz
Impedance Voltage:
14.4V IZ
Max Ambient Temperature:
40 Deg. C
Max Temperature Rise:
120 Deg. C
Terminal Type:
Phoenix Contact Screw Terminal (Typ 1RK 2.5)
Terminal Connections:
A1, A2, B1, B2, C1, C2
Form Factor:
Open Frame / DIN Mount
Certifications:
UL, CE, CSA
Country/Region of Manufacture:
United States (Milwaukee, WI)
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only, no additional accessories included.
Condition Notes:
Used TCI Sine Guard KLR2ATB three phase line reactor pulled from a working environment. Inspected and in good condition. Normal wear on coils and bracket; Phoenix Contact terminals intact.
