Description

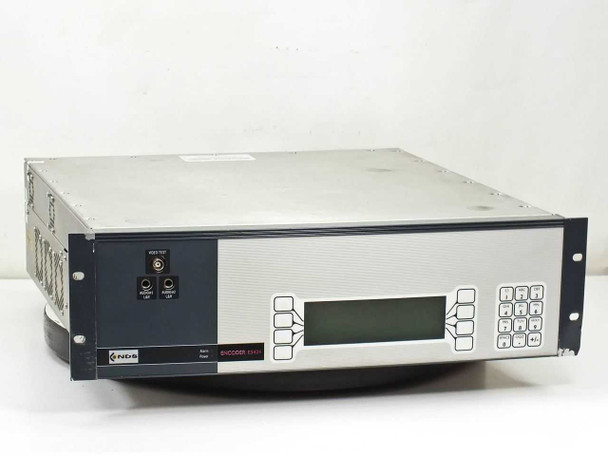

Tandberg E5424 MPEG-2 Encoder NDS Board QPSK MOD Option Rackmount DVB
Professional broadcast-grade MPEG-2 encoder designed for satellite uplink and DVB transmission. This 4U rackmount unit encodes and modulates video and audio signals for distribution over satellite or terrestrial networks.
Specifications & What's Included
- Model: Tandberg E5424
- Video Standard: MPEG-2 encoding
- Modulation: QPSK MOD option
- Video Inputs: Y/Component, Composite, Analog, Digital (SDI)
- Audio Inputs: Dual stereo pairs, AES/EBU, XLR connectors
- RF Outputs: IF Main, IF Monitor, RF Out
- Interfaces: RS-422, RS-232, RS-232/485, DVB parallel
- Network: Dual Ethernet ports
- Power: 100–120V / 220–240V AC, 50/60Hz
- Includes: NDS conditional access board and associated cards
Applications
The E5424 was used in broadcast and satellite distribution chains to encode multiple video and audio streams into DVB-compliant signals. Typical applications include satellite uplinks, cable head-end systems using NDS conditional access, and professional video distribution. The dual Ethernet and multiple serial interfaces supported management and control integration in networked broadcast environments.
Condition: For Parts or Not Working
This Tandberg E5424 MPEG-2 Encoder is being sold AS-IS for parts or repair. The unit powers on — the Power LED lights green — but we are unable to produce any output on the screen. It may require an additional external device or further repair to function. The encoder includes the NDS conditional access board, QPSK MOD option, and associated cards. The unit is a stacked two-chassis rackmount system and shows normal cosmetic wear consistent with previous professional use. The interior boards are intact and visible. Please view our photo set and contact us if you have any questions.
This Tandberg E5424 MPEG-2 Encoder is being sold AS-IS for parts or repair. The unit powers on — the Power LED lights green — but we are unable to produce any output on the screen. It may require an additional external device or further repair to function. The encoder includes the NDS conditional access board, QPSK MOD option, and associated cards. The unit is a stacked two-chassis rackmount system and shows normal cosmetic wear consistent with previous professional use. The interior boards are intact and visible. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Tandberg |
Model: |
E5424 |
MPN: |
E5424 |
Type: |
MPEG-2 Encoder |
SKU: |
45115 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes NDS board, QPSK MOD option, and associated cards |
Country/Region of Manufacture: |
United Kingdom |
Form Factor: |
Rackmount |
Power Requirements: |
100-120V / 220-240V AC, 50/60Hz |
Video Standard: |
MPEG-2 |
Modulation Type: |
QPSK |
Interface Type: |
RS-422, RS-232, RS-232/485, DVB parallel, SDI |
Video Input: |
Y/Component, Composite, Analog Video, Digital Video |
Audio Input: |
Audio 1 L/R, Audio 2 L/R, AES/EBU, XLR |
Network Interface: |
Ethernet 1, Ethernet 2 |
RF Output: |
IF Out Main, IF Out Monitor, RF Out |
Additional Options: |
NDS conditional access board, QPSK MOD |
Signal Standard: |
DVB |
Application: |
Broadcast, satellite uplink, professional video encoding |
Number of Rack Units: |
4U (two 2U chassis) |
Condition Notes: |
Tandberg E5424 MPEG-2 Encoder sold AS-IS for parts or repair. Powers on (Power LED lit) but no screen output is produced. May need external device or repair. Includes NDS board, QPSK MOD option, and cards. |
