Description
Sync D-FRAP WAN Frame Relay Access Probe 56/64 Kbps DTE Port RJ-45 Rev B

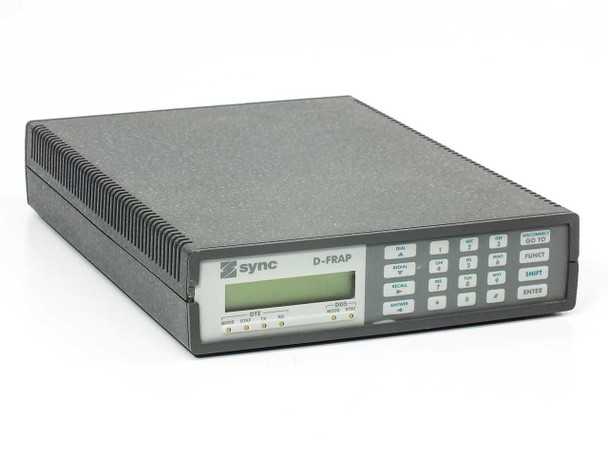

The Sync D-FRAP is a WAN Frame Relay Access Probe (FRAD) designed for 56/64 Kbps data services over DDS (Digital Data Service) circuits. It provides a DTE interface for connecting customer premises equipment to a frame relay network, and features a front-panel LCD display with a numeric keypad for local configuration and monitoring. This unit is Rev B, manufactured April 1999.
Specifications & What's Included
- Make: Sync
- Model: D-FRAP, Rev B
- Type: WAN Frame Relay Access Probe (FRAD)
- Data Rate: 56/64 Kbps
- Protocol: Frame Relay / DDS

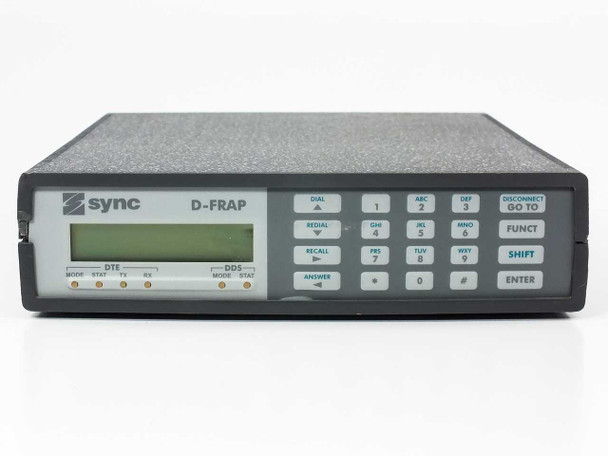

- Front Panel: LCD display, numeric keypad, DTE and DDS status LEDs (MODEM, STAT, TX, RX, MODE, STAT)

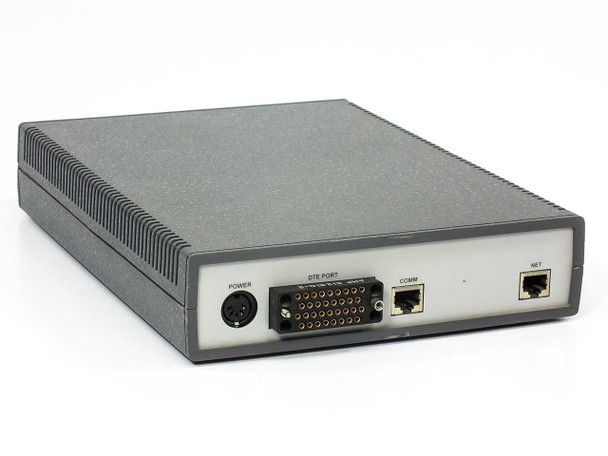

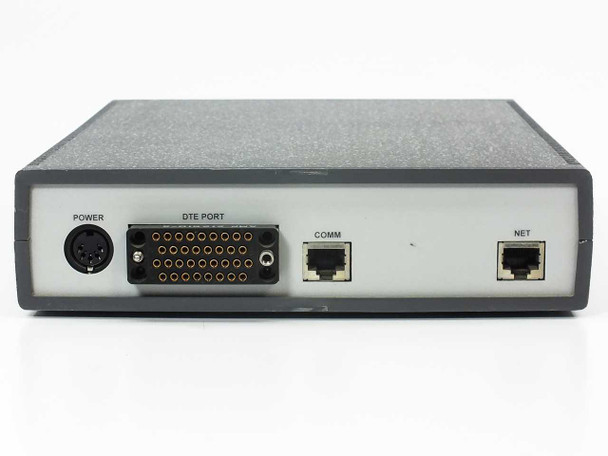

- Rear Panel – DTE Port: DB-25 connector
- Rear Panel – COMM Port: RJ-45
- Rear Panel – NET Port: RJ-45
- Rear Panel – Power: DIN connector (requires external 5V DC, 2.0A power supply — NOT included)
- Form Factor: Desktop / tabletop
- Power Requirement: 5V DC, 2.0A (external supply required, not included)
- Standards: FCC Part 15 Class A
- Country of Manufacture: United States

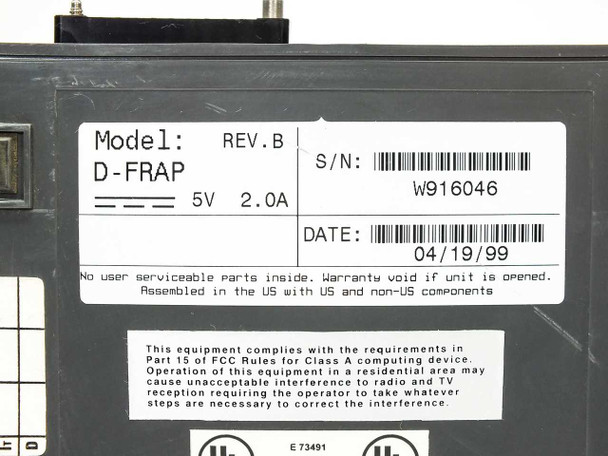

- Date of Manufacture: 04/19/1999
- Unit only — no power supply, no cables included
Applications
Frame Relay Access Devices (FRADs) like the Sync D-FRAP were widely deployed in the 1990s and early 2000s as the customer-premises interface for connecting LANs and serial DTE equipment to carrier-provided frame relay WAN services. Frame relay was the dominant packet-switched WAN technology of that era, offering more efficient bandwidth use than leased lines for enterprise branch connectivity. The D-FRAP specifically targets 56/64 Kbps DDS circuits — the standard low-speed digital local loop used by telcos for data services before broadband. Typical applications included connecting small branch offices to a corporate frame relay network, linking point-of-sale systems, or providing WAN access for legacy serial devices. While frame relay has been largely superseded by MPLS and broadband services, FRADs like this remain relevant for maintaining legacy WAN infrastructure, museum/archive systems, and test lab environments that simulate or test frame relay networks.
This Sync D-FRAP WAN Frame Relay Access Probe (Rev B, dated 04/19/1999) does not come with a power supply. Without the required 5V 2.0A external power supply, we were not able to power or test the unit, so it is being sold as-is. The enclosure shows light surface wear consistent with normal use. The front-panel LCD display, keypad, and status LEDs appear intact and undamaged. Rear ports — the DB-25 DTE port, COMM RJ-45, and NET RJ-45 — all look clean and free of visible damage. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Sync |
Model: |
D-FRAP |
MPN: |
D-FRAP |
Type: |
WAN Frame Relay Access Probe (FRAD) |
SKU: |
49860 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
No power supply included; sold as-is, untested |
Hardware Revision: |
Rev B |
Manufacture Date: |
04/19/1999 |
Country/Region of Manufacture: |
United States |
Form Factor: |
Desktop / Tabletop |
Power Requirements: |
5V DC, 2.0A (external power supply required) |
Data Rate: |
56/64 Kbps |
Interface Type: |
DTE (DB-25), COMM (RJ-45), NET (RJ-45) |
Connector Type: |
DB-25 DTE Port, 2x RJ-45 (COMM, NET), DIN Power |
Protocol: |
Frame Relay |
Number of Ports: |
3 (DTE, COMM, NET) |
Management Type: |
Local keypad and LCD display |
Standards Compliance: |
FCC Part 15 Class A |
Network Type: |
WAN / DDS / Frame Relay |
Condition Notes: |
Sync D-FRAP WAN Frame Relay Access Probe, Rev B (1999). No power supply included; could not power or test. Sold as-is. Enclosure shows light wear. Ports appear intact. Please contact us with questions. |
