Description
Swagelok SS-FM4SL4SL4-23 FM Series 1/4" SS Braided Vacuum Hose 26" Pair
This listing is for a matched pair of Swagelok FM Series stainless steel braided flexible metal hoses, part number SS-FM4SL4SL4-23. Each hose features a stainless steel wire-braided outer jacket over an inner corrugated metal core, with 1/4" Swagelok compression tube fitting connections on both ends. The FM Series is designed for use with vacuum, cryogenic, and high-pressure fluid or gas applications where flexibility and leak-tight integrity are required.
Specifications & What's Included
- Manufacturer: Swagelok
- Part Number: SS-FM4SL4SL4-23
- Series: FM Series
- Material: 316 Stainless Steel (braid and core)
- Overall Length: 26 inches
- Live (flex) Length: 21.5 inches
- Hose Outside Diameter: approx. 0.45 in (with braid)
- Tube Size: 1/4 inch
- End Connections: 1/4" Swagelok compression tube fittings (both ends, both hoses)
- Quantity: Pair (2 hoses included)
Applications
Swagelok FM Series flexible metal hoses are standard fittings in vacuum systems, cryogenic transfer lines, and high-purity gas distribution. The corrugated inner core accommodates thermal expansion and vibration while the stainless wire braid provides mechanical protection and pressure reinforcement, making them well-suited for connecting vacuum chambers, cryostats, cold traps, turbo pump inlets, and similar components where rigid tubing would be impractical. They are widely used in semiconductor fabrication, scientific research labs, analytical instrumentation, and industrial process systems wherever a flexible, leak-tight stainless connection is needed. The 1/4" Swagelok tube fitting ends allow direct integration into existing Swagelok plumbing without additional adapters.

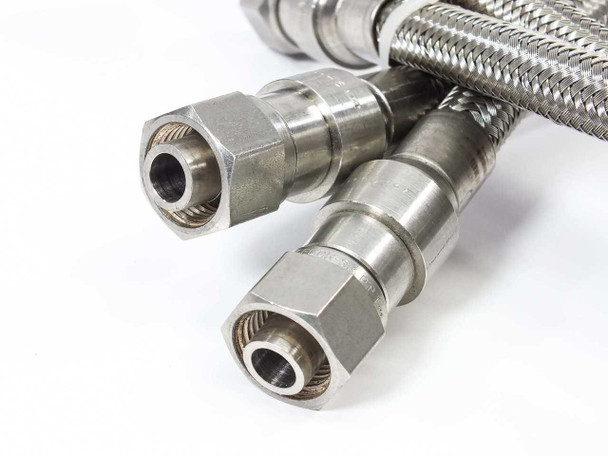

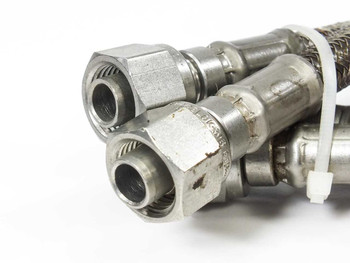

This Swagelok SS-FM4SL4SL4-23 FM Series stainless steel braided vacuum hose pair has been inspected and appears to be in good used condition. Both hoses show normal handling wear consistent with prior use in a lab or industrial environment. The stainless braid is intact on both hoses, and the 1/4" Swagelok tube fitting ends appear clean and undamaged with no visible deformation to the ferrules or hex nuts. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Swagelok |
Model: |
SS-FM4SL4SL4-23 |
MPN: |
SS-FM4SL4SL4-23 |
SKU: |
47696 |
Type: |
Stainless Steel Braided Flexible Metal Hose |
Series: |
FM Series |
Material: |
Stainless Steel |
Overall Length: |
26 inches |
Live Length: |
21.5 inches |
Hose Outside Diameter: |
0.45 in (approx. 0.50 in OD with braid) |
Tube Size: |
1/4 inch |
End Connection Type: |
Swagelok Tube Fitting (Compression) |
End Connection Size: |
1/4 inch |
Application: |
Vacuum, Cryogenic, High-Pressure Gas/Fluid |
Quantity: |
Pair (2 hoses) |
Seller Notes: |
Sold as a pair of two hoses. No additional fittings or hardware included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This Swagelok SS-FM4SL4SL4-23 FM Series SS braided vacuum hose pair is in good used condition. Braid is intact; 1/4" Swagelok tube fitting ends appear clean and undamaged. Normal handling wear. |
