Swagelok SS-FM4SL4SL4-23 FM Series 23" SS Braided Hose 1/4" Tube Fitting Vacuum

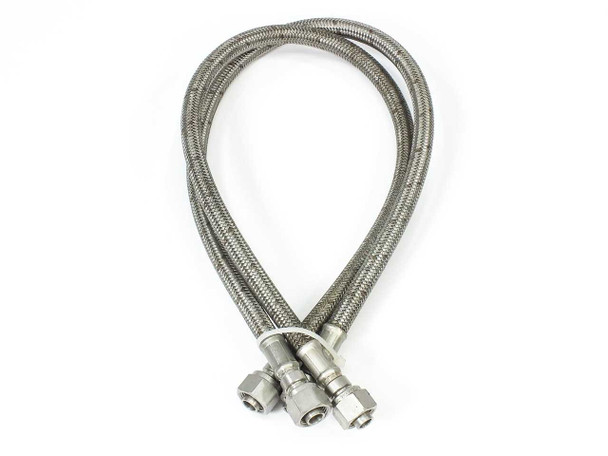

This is a matched pair of Swagelok SS-FM4SL4SL4-23 FM Series stainless steel braided flexible hoses. Each hose features a stainless steel inner core with stainless braid reinforcement and Swagelok tube fitting end connections sized at 1/4 inch. The FM Series is Swagelok's line of metal-reinforced flexible hoses designed for applications where permeation resistance, cleanliness, or compatibility with corrosive or high-temperature media is required.
Specifications & What's Included
- Model / MPN: SS-FM4SL4SL4-23
- Series: Swagelok FM Series
- Quantity: Pair (2 hoses)
- Overall length: 23 in
- Live (flex) length: 19 in
- Hose outer diameter: 0.45 in
- End connections: Swagelok tube fitting, 1/4 in (both ends, both hoses)
- Hose and braid material: Stainless steel
- End fittings: Stainless steel Swagelok compression-style tube fittings — Swagelok name stamped on nuts (visible in photos)
Applications
Swagelok FM Series braided metal hoses are used in vacuum systems, high-purity gas distribution, and process lines handling corrosive or reactive media. The stainless steel construction and metal braid make them well suited for high-temperature vacuum applications, semiconductor process gas lines, research vacuum chambers, and any plumbing run where polymer hoses would be unsuitable due to permeation, outgassing, or chemical compatibility concerns. The Swagelok tube fitting ends allow tool-free connection to standard Swagelok tubing and fittings, making these a common choice in laboratory and industrial vacuum systems as well as inert and corrosive gas handling lines. The 1/4-inch tube fitting size is one of the most widely used sizes in lab-scale and pilot-scale vacuum and gas systems.
This Swagelok SS-FM4SL4SL4-23 FM Series stainless steel braided hose pair is in used condition. Both hoses were pulled from a working vacuum or process gas system. The stainless braid is intact on both hoses with no visible kinks or damage. The 1/4-inch Swagelok tube fitting ends show light surface oxidation and some residue consistent with normal service use — visible in the close-up photos. The fittings appear structurally sound with thread engagement surfaces intact. Overall, the hoses present well for continued use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Swagelok |
Model: |
SS-FM4SL4SL4-23 |
MPN: |
SS-FM4SL4SL4-23 |
SKU: |
49180 |
Type: |
Stainless Steel Braided Flexible Hose |
Series: |
FM Series |
Quantity: |
Pair (2 hoses) |
Overall Length: |
23 in |
Live Length: |
19 in |
Hose Outer Diameter: |
0.45 in |
End Connection Type: |
Swagelok Tube Fitting |
End Connection Size: |
1/4 in |
Hose Material: |
Stainless Steel |
Braid Material: |
Stainless Steel |
Application: |
Vacuum, High-Temperature, Corrosive Gas, Low Permeation |
Compatible With: |
Vacuum chambers, process gas lines, corrosive media systems |
Condition: |
Used – Inspected and Pulled from Working Environment |
Seller Notes: |
Sold as a pair of two 23-inch SS braided hoses with 1/4" tube fitting ends |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Swagelok SS-FM4SL4SL4-23 FM Series 23" SS braided hose pair in used condition. Pulled from a working system. Braid intact, no kinks. Tube fitting ends show light surface oxidation from service use. Fittings appear sound. |
