Stelron Bimba DS3-6-C Pneumatic Linear Slide Actuator Assembly w/ Sensor

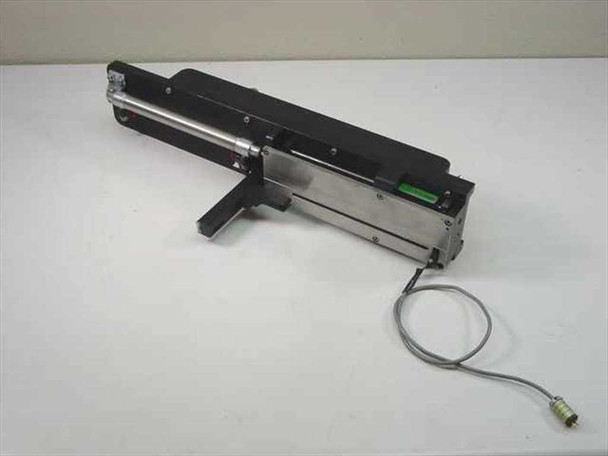

The Stelron DS3-6-C is a pneumatic linear slide actuator assembly manufactured by Stelron Components of Mahwah, New Jersey. The assembly integrates a Bimba-style stainless steel round-body pneumatic cylinder mounted on a black anodized aluminum base rail, driving a precision linear carriage. A position sensor with a multi-pin circular connector is included, allowing the slide position to be monitored in automated control systems.
Specifications & What's Included
- Manufacturer: Stelron (Mahwah, N.J.)

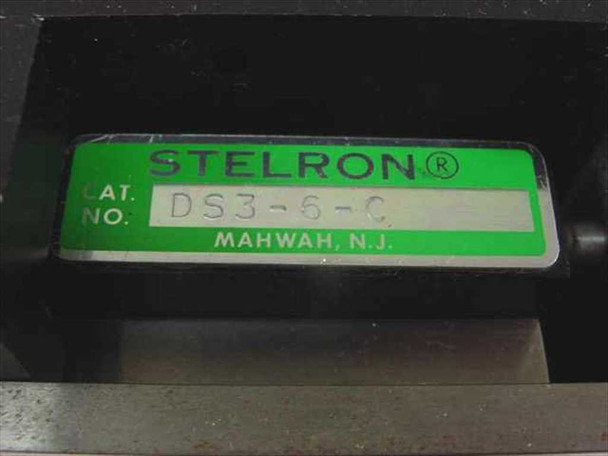

- Model / Catalog Number: DS3-6-C
- Type: Pneumatic linear slide actuator assembly

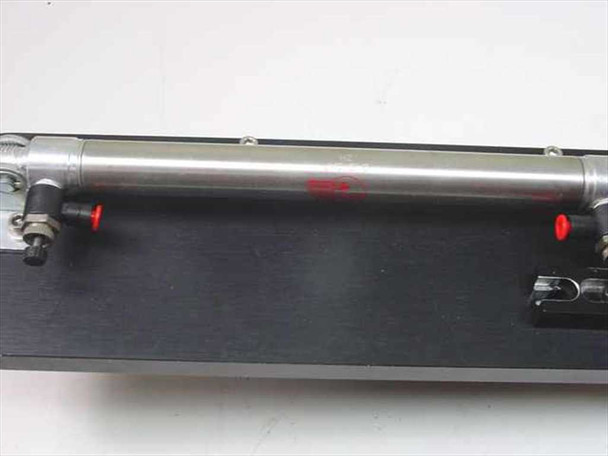

- Drive: Bimba-style stainless steel round-body pneumatic cylinder
- Magnetic position sensors: two red-indicator reed/magnetic sensors on cylinder body

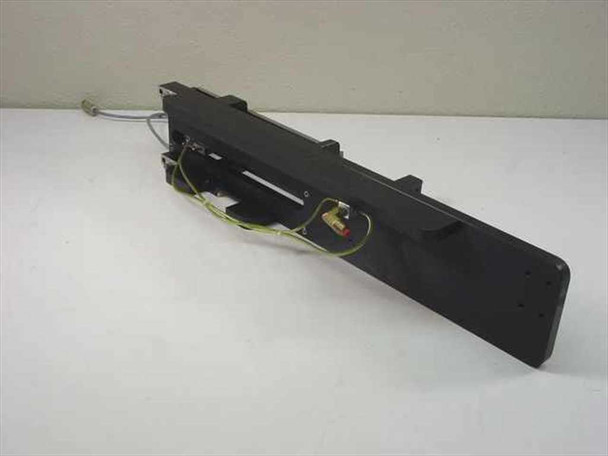

- Base: black anodized aluminum rail/extrusion

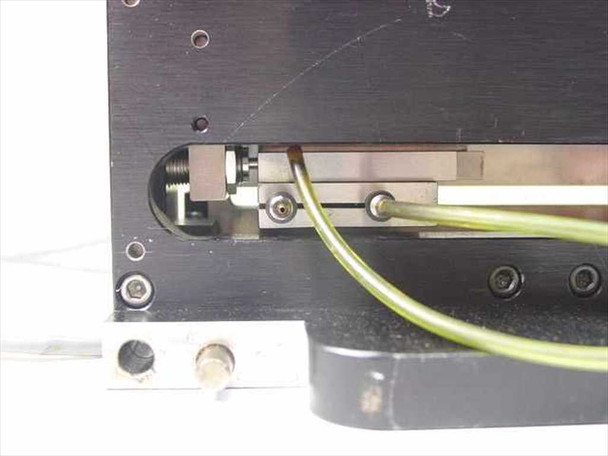

- Carriage: precision linear carriage on rail
- Pneumatic connections: push-in fittings with yellow-green tubing

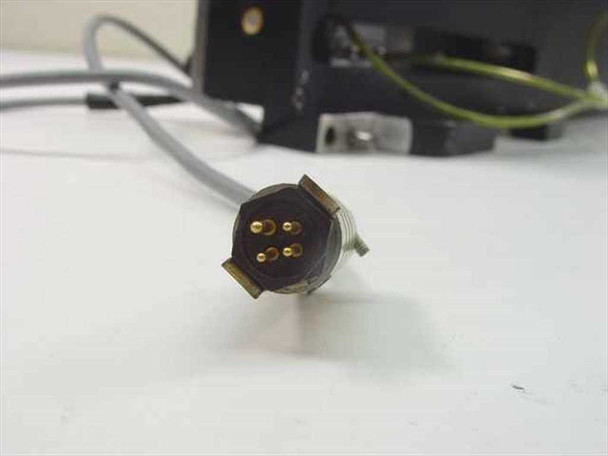

- Sensor cable: circular multi-pin connector (4 gold contacts)
- Includes: sensor cable with connector, pneumatic tubing and fittings
Applications
Pneumatic linear slide assemblies like the Stelron DS3-6-C are widely used in industrial automation and manufacturing for precise, repeatable linear motion. Common applications include pick-and-place systems, parts transfer, escapement mechanisms, clamping fixtures, and assembly line positioning stages. Stelron was a well-regarded U.S. manufacturer of pneumatic slide and transfer units, often integrated into custom automation cells and specialty machinery. The built-in cylinder and sensor arrangement simplifies integration — the slide, actuator, and position feedback are packaged as a single unit, reducing the engineering and mounting work compared to assembling separate components. These compact assemblies remain in active use in factory automation, semiconductor handling, and precision assembly equipment wherever a short-stroke pneumatic linear axis with position confirmation is needed.
This Stelron DS3-6-C Pneumatic Linear Slide Actuator Assembly was pulled from a working environment where it was previously in use. It has not been powered up or bench-tested at our facility. The assembly is in good used condition overall — the black anodized aluminum base and stainless steel cylinder body show normal wear consistent with industrial service. The sensor cable and multi-pin circular connector are intact, and the yellow-green pneumatic tubing and push-in fittings are present. Please review all photos for a detailed look at the unit's cosmetic condition, and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Stelron |
Model: |
DS3-6-C |
MPN: |
DS3-6-C |
Secondary Model: |
Bimba |
SKU: |
26867 |
Type: |
Pneumatic Linear Slide Actuator Assembly |
Actuator Type: |
Pneumatic |
Motion Type: |
Linear |
Drive Mechanism: |
Pneumatic Cylinder (Bimba-style round body) |
Sensor Included: |
Yes – position sensor with multi-pin circular connector |
Connector Type: |
Circular multi-pin (4-pin gold contacts) |
Pneumatic Fittings: |
Push-in fittings, yellow-green tubing |
Base Material: |
Black anodized aluminum |
Cylinder Body: |
Stainless steel round body |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes sensor cable with multi-pin connector and pneumatic tubing/fittings. |
Compatible With: |
Industrial automation, pick-and-place, linear motion systems |
Form Factor: |
Inline rail-mounted assembly |
Condition Notes: |
This Stelron DS3-6-C Pneumatic Linear Slide Actuator was pulled from a working environment and has not been bench-tested at our facility. Assembly, sensor cable, and pneumatic fittings are present and show normal used wear. |
