Clippard

Clippard UDR-17 Pneumatic Cylinder Bimba Stainless Linear Guide Assembly w/

(No reviews yet) Write a Review
SKU:
41313
MPN:
UDR 17
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
17.00 LBS
Shipping:
Calculated at Checkout

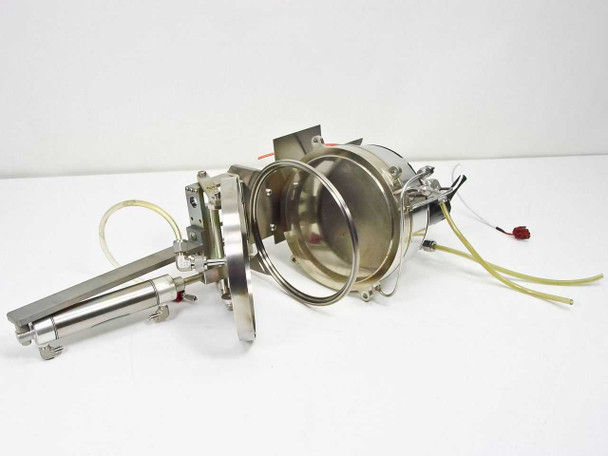

  • Clippard UDR-17 pneumatic cylinder with Bimba linear guide assembly and metal mounts — full assembly side view showing large stainless disc, cylinder, and tubing

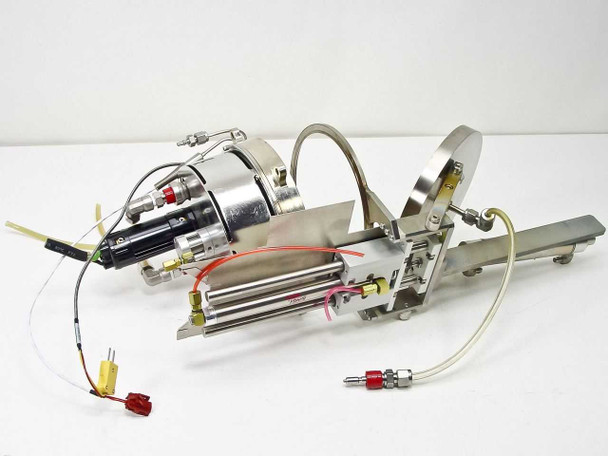

  • Clippard UDR-17 pneumatic cylinder and Bimba stainless linear guide assembly — opposite side view showing black cylinder actuator, red and yellow tubing, and fittings

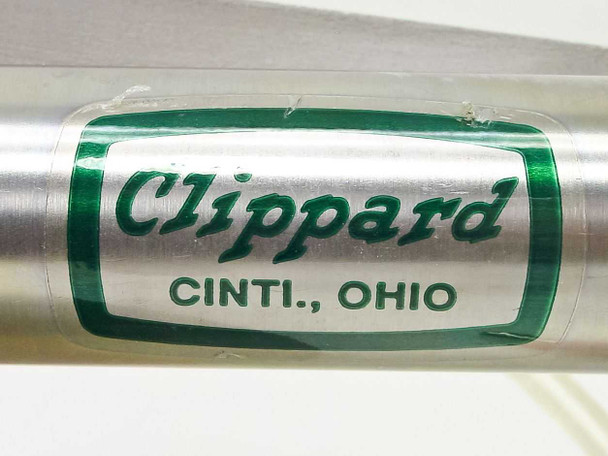

  • Close-up of Clippard label on cylinder body reading 'Clippard, Cinti., Ohio'

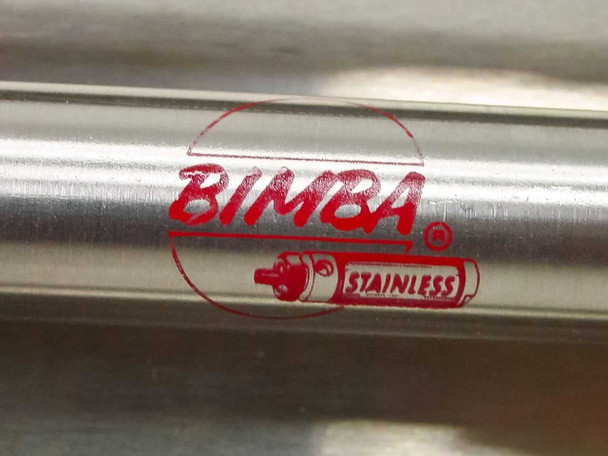

  • Close-up of Bimba Stainless label on cylinder body — red circular logo with text 'BIMBA STAINLESS'
  • Close-up of Bimba brand markings hand-written in blue marker on cylinder end cap

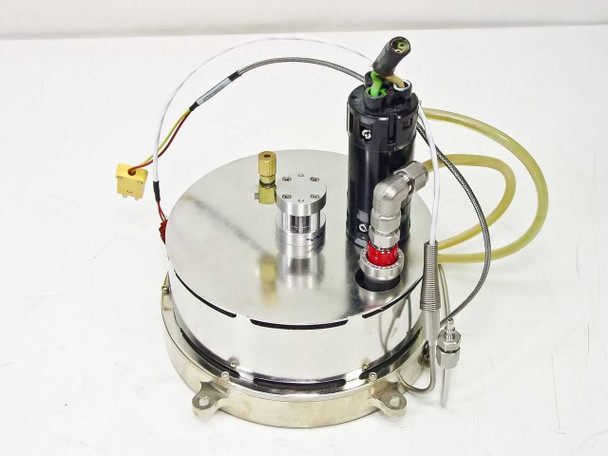

  • Top view of large stainless circular disc assembly with Clippard black pneumatic cylinder, red quick-disconnect fitting, and yellow thermocouple connector
  • Top-down view of stainless disc assembly showing mounted actuator, fittings, thermocouple connector, and flexible tubing

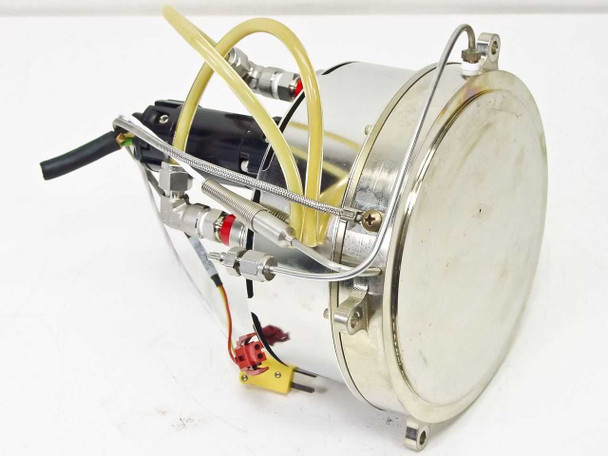

  • Side view of stainless disc assembly showing cylinder body, braided wire, red and yellow connectors, and pneumatic tubing routing

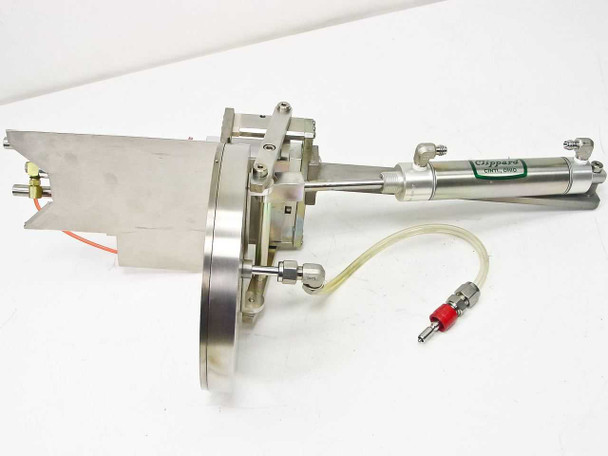

  • Side view of Clippard UDR-17 pneumatic cylinder on linear slide rail with stainless disc, red quick-disconnect fitting, and mounting bracket
  • Full assembly side view showing Clippard cylinder on linear rail guide with stainless disc target, mounting hardware, and pneumatic tubing
$95.00
Was: $200.00
Current Stock: 4

Sold Out

Description

Clippard UDR-17 Pneumatic Cylinder Bimba Stainless Linear Guide Assembly w/ Mounts

This is a pneumatic air cylinder paired with a Bimba stainless steel linear guide assembly. It converts compressed air pressure into controlled linear motion for automation and positioning tasks.

Specifications & What's Included

  • Brand: Clippard | Model: UDR-17
  • Secondary Brand: Bimba stainless linear guide
  • Cylinder Body: Aluminum and stainless steel construction
  • Mounting: Metal mounts included
  • Fittings: Push-to-connect pneumatic fittings with red quick-disconnect
  • Includes tubing, fittings, and all mounting hardware

Applications

Pneumatic cylinders with linear guides are used in industrial automation for precision motion control, positioning, clamping, and material handling. The Clippard UDR-17 integrates into custom pneumatic automation systems across manufacturing, assembly, and process control environments. Linear guide cylinders provide smooth, repeatable motion with minimal backlash, making them common in OEM equipment and retrofit automation projects.

Condition: Used
This Clippard UDR-17 pneumatic cylinder with Bimba stainless linear guide assembly has been inspected and appears to be in good condition. It was pulled from a working environment where it was previously in use. The stainless and aluminum components are clean with light surface wear consistent with normal service use. Tubing, fittings, and mounting hardware are present and intact as shown in the photos. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Clippard
Model:
UDR-17
MPN:
UDR-17
Secondary Brand:
Bimba
Type:
Pneumatic Cylinder with Linear Guide Assembly
SKU:
41313
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes Bimba stainless linear guide cylinder and metal mounting hardware
Country/Region of Manufacture:
United States
Cylinder Body Material:
Aluminum / Stainless Steel
Actuator Type:
Pneumatic Air Cylinder
Guide Type:
Bimba Stainless Linear Guide
Mounting:
Metal Mounts Included
Form Factor:
Custom Assembly
Tube/Fitting Type:
Push-to-connect pneumatic fittings, red quick-disconnect
Application:
Industrial Automation, Precision Motion Control
Compatible With:
Custom pneumatic automation systems
Condition Notes:
Clippard UDR-17 pneumatic cylinder with Bimba linear guide inspected and in good condition. Pulled from a working environment. Tubing, fittings, and mounts present. Please view photos and contact us with questions.
View AllClose
