Bimba LT-025-D Stainless Steel Pneumatic Air Cylinder 7mm Shaft 4-7/8" Stroke

Bimba LT-025-D Stainless Steel Pneumatic Air Cylinder 7mm Shaft 4-7/8" Stroke

The Bimba LT-025-D is a compact stainless steel pneumatic air cylinder from Bimba's LT Series, featuring a dual-shaft (twin rod) guided design. The twin 7mm stainless guide rods prevent rotation and provide linear guidance, making this a self-guided actuator rather than a plain round cylinder. The 17mm bore cylinder body is finished in stainless steel with a black anodized aluminum body block and a flat base plate for rigid mounting.

Specifications & What's Included

• Model: Bimba LT-025-D
• Series: LT Series (Linear Twin / Dual Shaft)
• Bore Diameter: 17 mm
• Stroke Length: 4-7/8 in (approx. 124 mm)
• Shaft Diameter: 7 mm (dual shafts)

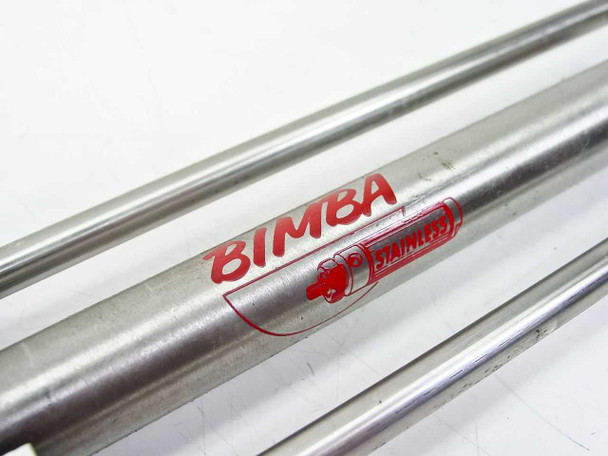

• Cylinder Body Material: Stainless Steel
• Body Block Material: Black anodized aluminum

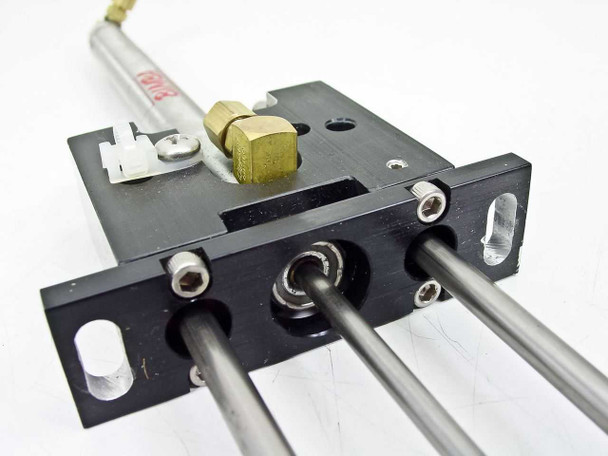

• Base Plate: Stainless steel with oval mounting slots
• Fittings: Brass compression fittings (top and side ports visible)
• Actuator Type: Double-acting linear pneumatic cylinder
• Anti-rotation: Yes – dual guide shaft design prevents shaft rotation
• Included: Cylinder assembly with dual shafts and brass fittings as shown

Applications

Bimba's LT Series cylinders are guided linear actuators used in industrial automation, machine tooling, and precision assembly equipment where shaft rotation must be prevented. The twin rod configuration makes them well suited for pick-and-place mechanisms, part transfer fixtures, pressing and clamping operations, and any application requiring precise, repeatable linear motion without torque loading the cylinder rod. Bimba has been a widely used brand in North American pneumatic automation since the mid-20th century, and their stainless steel cylinder lines are common in clean-room compatible, food-processing, and general manufacturing environments. The compact form factor and integral mounting base of the LT-025-D make it easy to integrate directly into custom fixtures and tooling plates.
