Description
Stainless Steel KF Flange Reducer Adapter DN16KF to DN40KF NW-16 NW-40 33mm
Stainless steel reducer adapter for connecting KF16 and KF40 vacuum flanges. Transitions from DN16KF small flange to DN40KF large flange, allowing different sized components to integrate into vacuum systems.
Specifications & What's Included
- Type: KF Flange Reducer Adapter (ISO-KF standard)
- Small Flange: DN16KF / NW-16 (OD 30 mm, ID 17 mm)
- Large Flange: DN40KF / NW-40 (OD 55 mm, ID 41 mm)
- Tube Inner Diameter: 16 mm
- Overall Length: 33 mm
- Material: Stainless Steel
- Adapter only; centering ring and clamp not included
Applications
Used in high vacuum and laboratory vacuum systems. KF reducers connect different sized flanges on vacuum chambers, pumps, gauges, and associated equipment. Common in research laboratories, manufacturing environments, and industrial vacuum applications where component size transitions are required.
Condition: Used

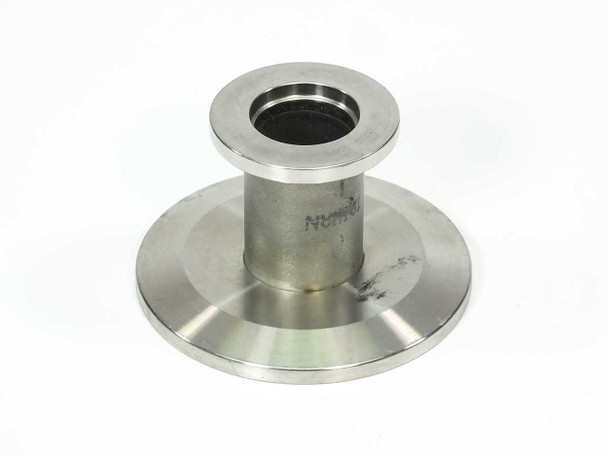

This stainless steel DN16KF to DN40KF vacuum flange reducer adapter has been inspected and appears to be in good used condition. It was pulled from a working vacuum system where it was in active use. The machined flange faces and bore are intact with no visible damage. Some light surface marks and minor scuffing are visible on the body, consistent with normal service use. No cracks, deformation, or weld defects are apparent. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This stainless steel DN16KF to DN40KF vacuum flange reducer adapter has been inspected and appears to be in good used condition. It was pulled from a working vacuum system where it was in active use. The machined flange faces and bore are intact with no visible damage. Some light surface marks and minor scuffing are visible on the body, consistent with normal service use. No cracks, deformation, or weld defects are apparent. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Unbranded |
Model: |
DN16KF to DN40KF Flange Reducer |
Type: |
KF Flange Reducer Adapter |
SKU: |
49130 |
Flange Standard: |
ISO-KF (QF/NW) |
Small Flange Size: |
DN16KF / NW-16 |
Large Flange Size: |
DN40KF / NW-40 |
Small Flange OD: |
30 mm |
Small Flange ID: |
17 mm |
Large Flange OD: |
55 mm |
Large Flange ID: |
41 mm |
Tube Inner Diameter: |
16 mm |
Overall Length: |
33 mm (1.3 in) |
Material: |
Stainless Steel |
Compatible With: |
KF16 / KF40 vacuum systems, chambers, pumps |
Application: |
High vacuum, laboratory vacuum systems |
Condition: |
Used – Pulled from Working Environment |
Country/Region of Manufacture: |
Unknown |
Seller Notes: |
Flange adapter only; no centering ring or clamp included |
Condition Notes: |
Stainless steel DN16KF to DN40KF vacuum flange reducer, inspected and in good used condition. Pulled from a working vacuum system. Machined faces intact; minor surface marks from normal use. |
