ST Micro ADE3000SX LCD Display Engine Board VGA 715L1006-1A-HYD CEG-G320408

(No reviews yet) Write a Review
SKU:
22222
MPN:
ADE3000SX
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

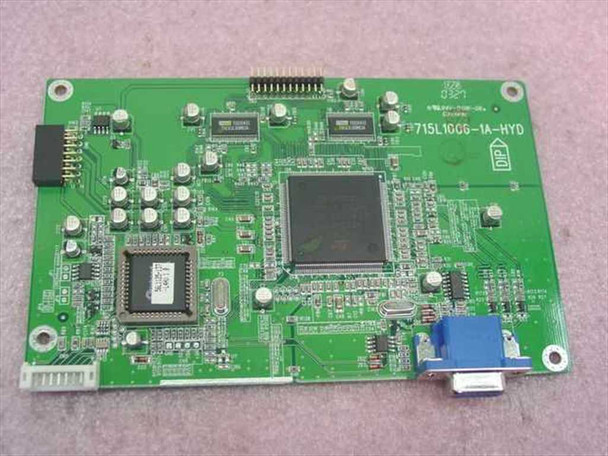

  • ST Microelectronics ADE3000SX LCD display engine PCB front view showing main controller IC, VGA connector, and board number 715L1006-1A-HYD
  • Close-up of ST ADE3000SX Display Engine main chip showing markings CEG-G320408 and STMicroelectronics ST logo
  • ST Micro ADE3000SX 715L1006-1A-HYD LCD display engine board rear view showing solder side, barcode label, and VGA port
$30.00
Was: $60.00
Current Stock: 1

Sold Out

Description

ST Micro ADE3000SX LCD Display Engine Board VGA 715L1006-1A-HYD CEG-G320408

This is a standalone LCD display engine controller board featuring the STMicroelectronics ADE3000SX chipset. The board processes video signals and outputs to LCD panels via LVDS interface.

Specifications & What's Included

  • Brand: STMicroelectronics
  • Model: ADE3000SX (MPN: 715L1006-1A-HYD)
  • Secondary Model: CEG-G320408
  • Input: VGA (DE-15 connector)
  • Output: LVDS ribbon header
  • Form Factor: Standalone PCB card
  • Manufactured in Malta
  • Board only—no cables or accessories included

Applications

Display engine boards like this were used in industrial monitors, medical imaging displays, and telecom equipment where VGA-to-LCD conversion was required. The ADE3000SX series was deployed in industrial control systems and embedded display applications requiring standalone video processing. Compatible with systems using standard LVDS panel interfaces and VGA source signals.

Condition: Used
This ST Microelectronics ADE3000SX LCD Display Engine board (715L1006-1A-HYD) has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The board shows normal light handling wear consistent with removal from service; no cracked components, damaged traces, or broken connectors are visible. The VGA port and ribbon/LVDS headers appear intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
STMicroelectronics
Model:
ADE3000SX
MPN:
715L1006-1A-HYD
Secondary Model:
CEG-G320408
Type:
LCD Display Engine Controller Board
SKU:
22222
Chipset:
ST ADE3000SX Display Engine (CEG-G320408)
Interface / Input:
VGA (DE-15 connector)
Form Factor:
Standalone PCB / Card
Connector Type:
VGA (DE-15), LVDS/ribbon header
Country/Region of Manufacture:
Malta (MALTA marked on IC)
Condition:
Used – Pulled from Working Environment
Seller Notes:
Board only; pulled from working environment
Condition Notes:
ST Micro ADE3000SX LCD Display Engine board 715L1006-1A-HYD. Inspected, good used condition. Pulled from a working environment. VGA port and headers intact. Normal light wear.
