ST Microelectronics

ST Microelectronics ADE3700SX Analog LCD Display Engine Board XGA SXGA

(No reviews yet) Write a Review
SKU:
22231
MPN:
ADE3700SX
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

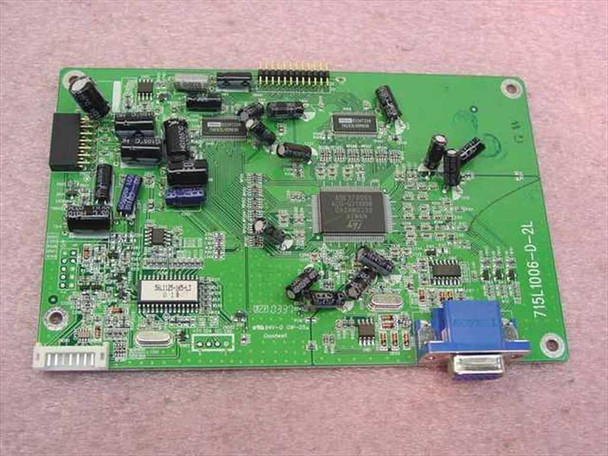

  • STMicroelectronics ADE3700SX LCD display engine PCB front view showing board reference 715L1006-D-2L and VGA connector
  • Close-up of ST ADE3700SX main controller IC on LCD display engine board, showing chip markings ACG-G319008 and GA2AW0330
  • STMicroelectronics ADE3700SX LCD display engine board rear/solder side view with label sticker
$11.30
Was: $30.00
Current Stock: 5

Sold Out

Description

ST Microelectronics ADE3700SX Analog LCD Display Engine Board XGA SXGA 715L1006-D-2L

This is an analog LCD display engine board that converts analog video signals to drive XGA and SXGA resolution LCD panels and monitors. The board handles signal processing and timing control for flat-panel display applications.

Specifications & What's Included

  • Chipset: ST ADE3700SX (ACG-G319008)
  • Supported Resolutions: XGA (1024x768), SXGA (1280x1024)
  • Signal Type: Analog VGA input
  • Connectors: VGA DE-15 connector, ribbon and header connectors
  • Form Factor: PCB card/module
  • Manufacturer: STMicroelectronics, Taiwan

Applications

Analog LCD display engine boards of this type were used in industrial monitors, telecom equipment, medical displays, and embedded systems requiring flat-panel conversion from standard VGA analog signals. The ADE3700SX supports resolutions up to SXGA, making it suitable for applications requiring higher display clarity. These boards were commonly integrated into legacy display systems and retrofit applications where analog VGA sources needed to drive LCD panels.

Condition: Used
This ST Microelectronics ADE3700SX Analog LCD Display Engine board (715L1006-D-2L) has been inspected and is in good condition. The PCB appears clean with no visible cracked components, damaged traces, or bent pins. The VGA connector and on-board headers look intact. Normal handling marks consistent with prior installation are present. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
STMicroelectronics
Model:
ADE3700SX
MPN:
ADE3700SX
Secondary Model:
715L1006-D-2L
Type:
Analog LCD Display Engine Board
SKU:
22231
Chipset:
ST ADE3700SX (ACG-G319008)
Display Resolution Support:
XGA (1024x768), SXGA (1280x1024)
Signal Type:
Analog
Form Factor:
PCB Card/Module
Connector Type:
VGA (DE-15), ribbon/header connectors
Compatible With:
XGA and SXGA LCD monitors and display panels
Condition:
Used – Inspected
Seller Notes:
Board only; inspected and in good condition.
Country/Region of Manufacture:
Taiwan
Condition Notes:
ST Microelectronics ADE3700SX LCD Display Engine board (715L1006-D-2L) inspected and in good condition. PCB is clean; VGA connector and headers intact. Normal handling marks from prior use.
View AllClose

Related Products

Related Products

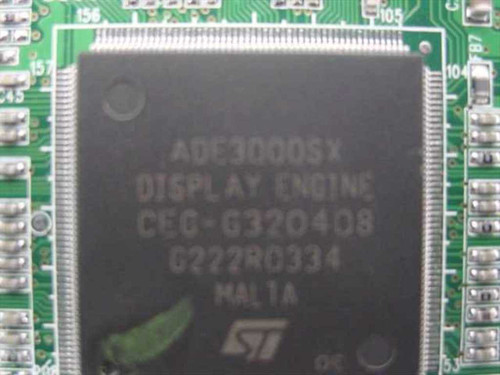

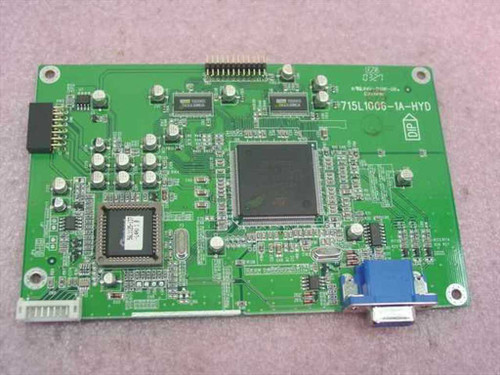

ST Microelectronics ADE3000SX LCD display engine PCB front view showing main controller IC, VGA connector, and board number 715L1006-1A-HYD Close-up of ST ADE3000SX Display Engine main chip showing markings CEG-G320408 and STMicroelectronics ST logo
