Description
St. Michael Strategies STC112 Statistical Traffic Counter 15VDC w/ Junction Box
Desktop traffic counting unit designed to monitor foot and vehicular traffic at entry points. Uses external sensors to record directional counts and generate activity reports over specified time periods.
Specifications & What's Included
- Model: STC112 (Canada)
- Power: 15VDC 900mA via 5-pin DIN connector (AC adapter not included)

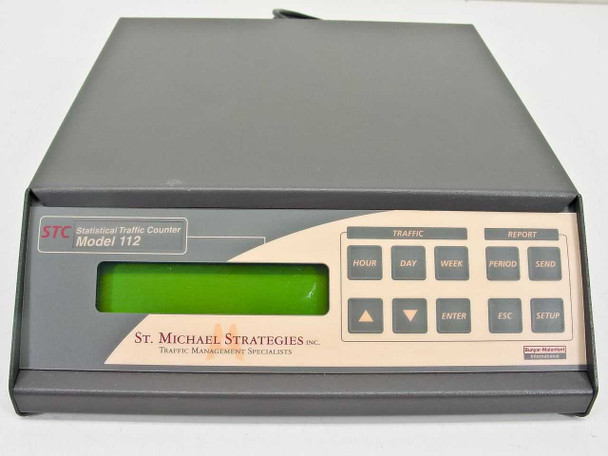

- Display: LCD with Hour, Day, Week, and Period reporting functions
- Ports: DB25 Female and Male connectors for sensor integration
- Status LEDs: On (red) and Fail (yellow) indicators
- Includes: 2 Doors Junction Box with terminal block and connecting cable
- Certifications: FCC Part 15, IC, CE
Applications
Used in retail environments, building entrances, and facility management for tracking customer and foot traffic patterns. Connects to door sensors and induction loop detectors via DB25 ports. Generates reports for traffic analysis during specified hours, days, weeks, or custom periods. Commonly deployed in point-of-sale and building automation systems for occupancy and flow monitoring.
Condition: Used
This St. Michael Strategies STC112 Statistical Traffic Counter has been inspected and is in good used condition. The enclosure is clean overall with minor surface wear consistent with normal use. The front-panel LCD and keypad appear intact, and all buttons are present. The rear DB25 ports and power connector show no obvious damage. The 2 Doors Junction Box with cable is included, but no AC adapter is included — you will need a 15VDC 900mA power supply with a 5-pin DIN connector to power the unit. Please view our photo set and contact us if you have any questions.
This St. Michael Strategies STC112 Statistical Traffic Counter has been inspected and is in good used condition. The enclosure is clean overall with minor surface wear consistent with normal use. The front-panel LCD and keypad appear intact, and all buttons are present. The rear DB25 ports and power connector show no obvious damage. The 2 Doors Junction Box with cable is included, but no AC adapter is included — you will need a 15VDC 900mA power supply with a 5-pin DIN connector to power the unit. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
St. Michael Strategies |
Model: |
STC112 |
MPN: |
STC112 |
Type: |
Statistical Traffic Counter |
SKU: |
43206 |
Condition: |
Used – Inspected |
Seller Notes: |
Includes 2 Doors Junction Box with cable. No AC adapter included. |
Country/Region of Manufacture: |
Canada |
Power Requirements: |
15VDC 900mA (AC adapter not included) |
Form Factor: |
Desktop / Tabletop |
Display Type: |
LCD |
Interface / Port A: |
DB25 Female (25-pin) |
Interface / Port B: |
DB25 Male (25-pin) |
Port C: |
Present on rear panel |
Power Connector: |
5-pin DIN (15VDC 900mA) |
Status Indicators: |
On LED (red), Fail LED (yellow) |
Report Functions: |
Hour, Day, Week, Period, Send |
Input Functions: |
Traffic up/down, Enter, ESC, Setup |
Included Accessories: |
2 Doors Junction Box with terminal block and cable |
Certifications: |
FCC Part 15, IC (Canada), CE |
Application: |
Retail/facility door and foot traffic counting |
Compatible With: |
Door sensors, loop detectors via DB25 ports |
Condition Notes: |
St. Michael Strategies STC112 Statistical Traffic Counter inspected and in good used condition. Clean enclosure, intact keypad and LCD, DB25 ports undamaged. Includes 2 Doors Junction Box with cable. |
