SSE Technologies

SSE Technologies ASAT-1214-1205 X-Ku Band 5W SSPA RF Upconverter WR75 70MHz

(No reviews yet) Write a Review
SKU:
31964
MPN:
ASAT-1214-1205
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
34.00 LBS
Shipping:
Calculated at Checkout

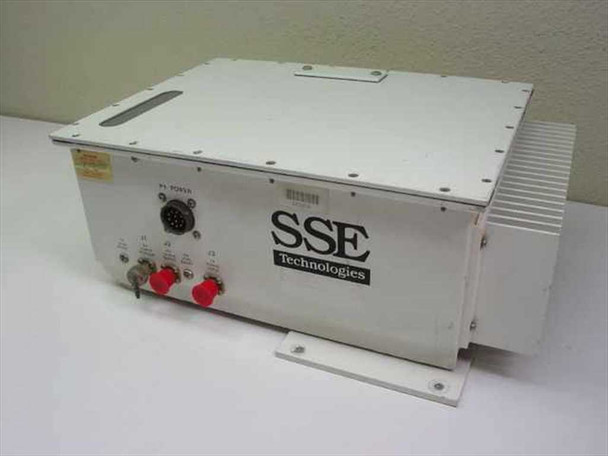

  • SSE Technologies ASAT-1214-1205 X-Ku Band 5W SSPA Upconverter – front and right-side view showing SSE Technologies logo, circular power connector, and red BNC connectors

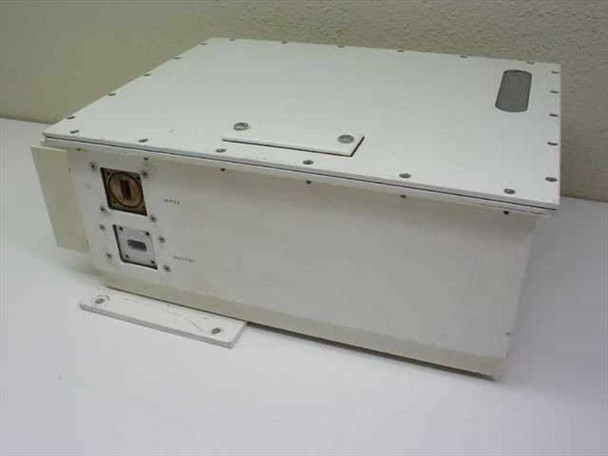

  • SSE Technologies ASAT-1214-1205 SSPA Upconverter – left-side and top view showing aluminum enclosure, WR75 waveguide port, and mounting bracket
  • SSE Technologies ASAT-1214-1205 – close-up of ventilation screen on side panel

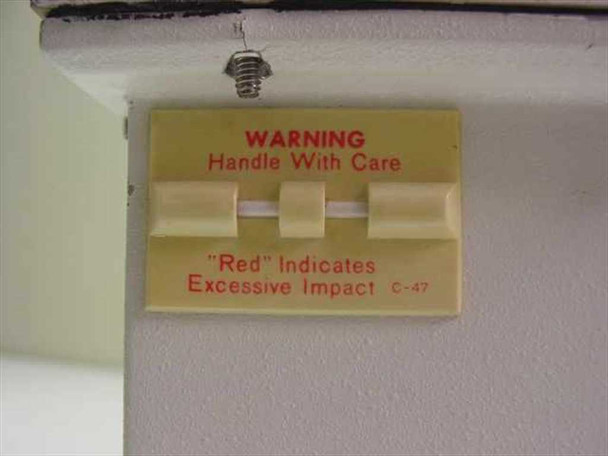

  • SSE Technologies ASAT-1214-1205 – impact indicator label reading Warning Handle With Care, Red Indicates Excessive Impact, model C-47

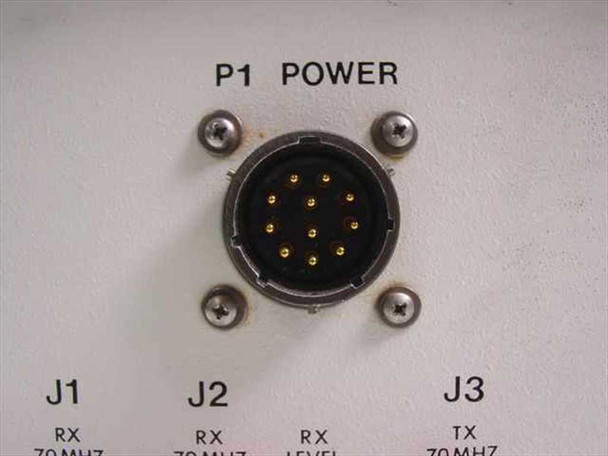

  • SSE Technologies ASAT-1214-1205 – panel detail showing P1 Power circular connector and J1, J2, J3 port labels at 70 MHz
  • SSE Technologies ASAT-1214-1205 – close-up of IF connector panel: J1 RX 70 MHz Monitor, J2 RX 70 MHz Output, J3 TX 70 MHz Input, TX Level Adjust, RX Level Adjust
  • SSE Technologies ASAT-1214-1205 – WR75 waveguide INPUT and OUTPUT ports on end panel

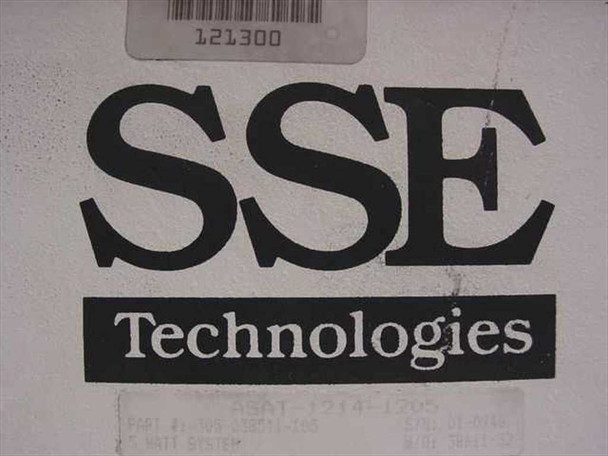

  • SSE Technologies ASAT-1214-1205 – label showing model ASAT-1214-1205, Part No. 305-038511-105, 5 Watt System, and SSE Technologies logo

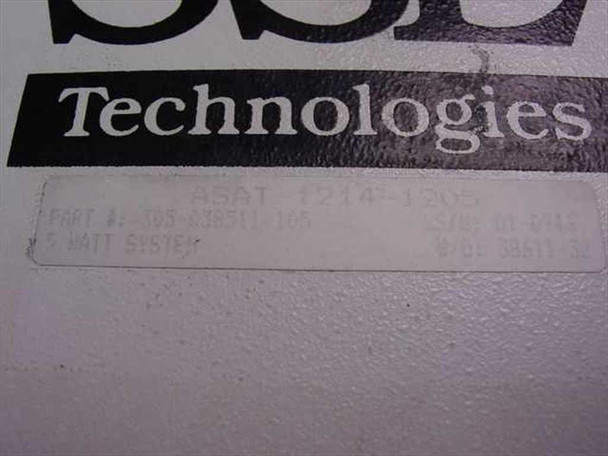

  • SSE Technologies ASAT-1214-1205 – close-up of data plate confirming model ASAT-1214-1205, Part No. 305-038511-105, 5 Watt System designation
$2,200.00
Was: $4,400.00
Current Stock: 1

Sold Out

Description

SSE Technologies ASAT-1214-1205 X-Ku Band 5W SSPA RF Upconverter WR75 70MHz

Solid-state power amplifier and RF upconverter module for X-Ku band satellite communication systems. Converts 70 MHz intermediate frequency to RF output with 5 watts of amplification.

Specifications & What's Included

  • Model: ASAT-1214-1205 (MPN 305-038511-105)
  • Frequency Band: X-Ku Band
  • Output Power: 5 Watts
  • Waveguide Interface: WR75 (input and output)
  • IF Input: 70 MHz on three ports (RX monitor, RX output, TX input)
  • Power Connector: Multi-pin circular
  • Unit only; no cables or power supply included

Applications

Used in satellite ground stations, VSAT networks, and teleport uplink systems. This type of module handles RF signal amplification for satellite transmissions. Compatible with standard X-Ku band ground station equipment utilizing WR75 waveguide interfaces and 70 MHz IF processing chains.

Condition: Used
This SSE Technologies ASAT-1214-1205 X-Ku Band 5W SSPA Microwave RF Upconverter has been inspected and appears to be in good used condition. The aluminum enclosure shows light surface scuffing and handling marks consistent with prior field or lab use. The WR75 waveguide ports on the end panel and the IF connectors on the side panel look intact with no visible damage. The impact indicator (C-47 type) is present on the unit. No cables or power supply are included. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
SSE Technologies
Model:
ASAT-1214-1205
MPN:
305-038511-105
Type:
Solid State Power Amplifier (SSPA) / RF Upconverter
SKU:
31964
Frequency Band:
X-Ku Band
Output Power:
5 Watts
Waveguide Interface:
WR75 (Input and Output)
IF Input Frequency:
70 MHz
IF Ports:
J1: RX 70 MHz Monitor; J2: RX 70 MHz Output; J3: TX 70 MHz Input
Power Connector:
P1 – Multi-pin circular power connector
Form Factor:
Enclosed module / benchtop
Application:
Satellite uplink / VSAT / teleport ground station
Condition:
Used – Inspected and Pulled from Working Environment
Seller Notes:
Unit only; no cables or power supply included
Country/Region of Manufacture:
United States
Condition Notes:
SSE Technologies ASAT-1214-1205 X-Ku Band 5W SSPA RF Upconverter. Inspected used unit in good condition. Light surface wear on aluminum enclosure. WR75 waveguide ports and IF connectors intact. No cables or PSU included.
View AllClose

Related Products

Related Products

Avantek ASAT-1214-1004 RF Amplifier — front-left view showing Avantek logo, SMA coax ports J1–J3, P1 power connector, and aluminum enclosure with finned heat sink Avantek ASAT-1214-1004 RF Amplifier — rear view showing WR75 waveguide INPUT and OUTPUT ports and small indicator window
Add to Cart
Quick view

Avantek ASAT-1214-1004 4W RF Amplifier 70MHz WR75 Waveguide 305-037808-104

Avantek

$400.00
Was: $800.00
Avantek ASAT-1214-1004 4W RF Amplifier 70MHz WR75 Waveguide 305-037808-104The Avantek ASAT-1214-1004 is a 4-watt RF amplifier module housed in a sealed, finned aluminum enclosure designed for use in...
32000
SKU:
32000
Availability:
Usually ships within 1–2 business days.
Weight:
25.00 LBS
Brand:
Avantek
Model:
ASAT-1214-1004
MPN:
305-037808-104
Secondary Model:
305-037808-104
SKU:
32000
Type:
RF Amplifier
Output Power:
4 Watts
IF Frequency:
70 MHz
Waveguide Port Size:
WR75
Waveguide Ports:
INPUT and OUTPUT (WR75, rear panel)
IF Coax Ports:
J1: 70MHz Output Monitor; J2: 70MHz Out; J3: 70MHz In
IF Connector Type:
SMA (J1, J2, J3)
ALC:
Yes — ALC ADJ trimmer on front panel
Power Connector:
P1 Power connector (front panel)
Required Power Supply:
PS110-004 or P/N 310-037769-001 or 310-037769-002
Form Factor:
Enclosed RF Package / Benchtop
Enclosure Material:
Aluminum alloy, finned heat sink sides
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only — power supply (PS110-004) not included
Application:
Satellite uplink/downlink IF amplification, microwave RF systems
Condition Notes:
Used condition, pulled from service. Aluminum enclosure shows wear; SMA ports and power connector intact. Rear WR75 input flange has oxidation. Requires separate power supply (not included).
Avantek ASAT-1214-002 2W 70MHz RF Amplifier – front and right-side view showing Avantek branding label and connector panel Avantek ASAT-1214-002 RF Amplifier – top and left-side view showing sealed aluminum enclosure with bolt-down cover
Add to Cart
Quick view

Avantek ASAT-1214-002 2W 70MHz RF Amplifier 305-037808-002 WR75 Satcom

Avantek

$250.00
Was: $500.00
Avantek ASAT-1214-002 2W 70MHz RF Amplifier 305-037808-002 WR75 SatcomThe Avantek ASAT-1214-002 is a 2-Watt, 70 MHz RF amplifier housed in a rugged sealed aluminum chassis. It was designed for...
31884
SKU:
31884
Availability:
Usually ships within 1-2 business days.
Weight:
26.00 LBS
Brand:
Avantek
Model:
ASAT-1214-002
MPN:
305-037808-002
Type:
RF Amplifier
SKU:
31884
Output Power:
2 Watts
Frequency:
70 MHz
Input Connector:
WR75 Waveguide
Output Connector:
WR75 Waveguide
Output Monitor Port:
J1 – 70MHz Output Monitor
RF Output Port:
J2 – 70MHz Out
RF Adjust Port:
J3 – 70MHz Out Adj
Power/Control Connector:
Circular multi-pin (rear panel)
Enclosure:
Sealed aluminum chassis with screw-torque covers
Country/Region of Manufacture:
United States
Application:
Satellite communications (Satcom) ground station
Condition:
Used – Inspected
Seller Notes:
Unit only; no cables or documentation included.
Condition Notes:
Avantek ASAT-1214-002 2W 70MHz RF Amplifier. Inspected, good used condition. Enclosure shows surface scuffing/minor soiling. Connectors appear intact; WR75 waveguide port present with cover. Not powered or tested at our facility.

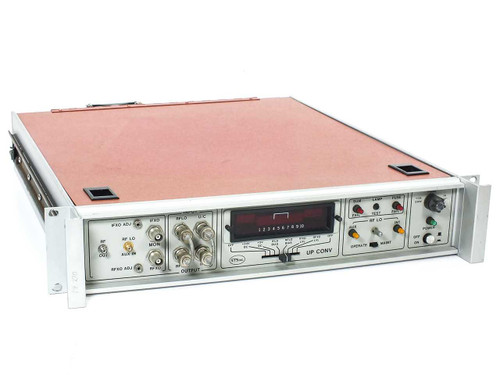

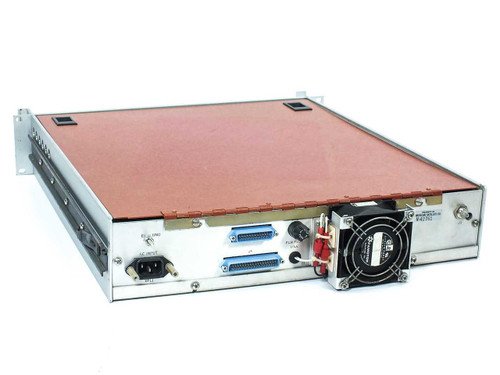

STS Inc Statcom RF Upconverter front panel and top view showing 19-inch 2U rackmount chassis with LED bar graph display and front panel controls STS Inc Statcom Upconverter rear panel showing IEC AC input, two DB44 parallel connectors, cooling fan, and SMA RF output port
