Spirent

Spirent DLS 90 DLS90/26-9.35 Ver 4 Wireline Simulator IEEE 488 RS-232 100-240V

(No reviews yet) Write a Review
SKU:
50220
MPN:
DLS 90
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
13.00 LBS
Shipping:
Calculated at Checkout

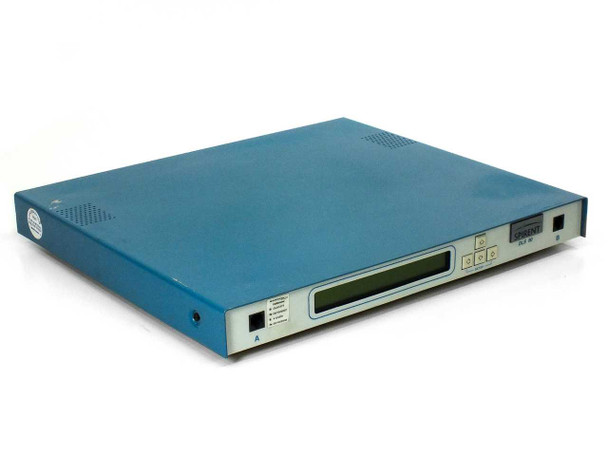

  • Spirent DLS 90 Wireline Simulator – front-left three-quarter view showing front panel LCD display and channel A indicators

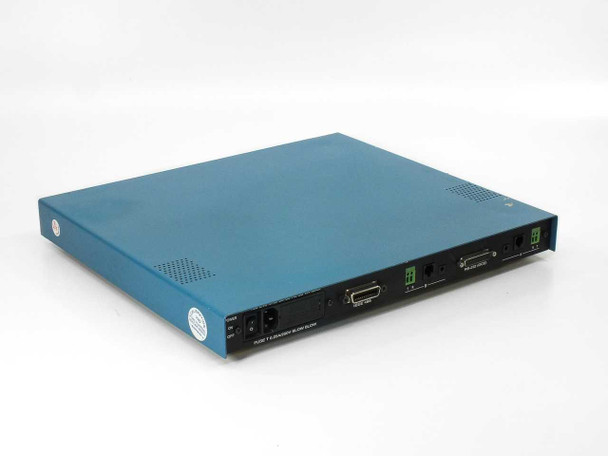

  • Spirent DLS 90 DLS90/26-9.35 – rear-left three-quarter view showing rear panel connectors and IEC power inlet

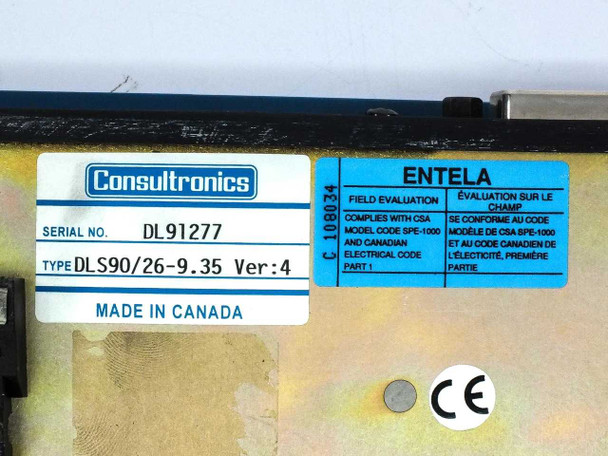

  • Spirent DLS 90 bottom label showing serial number DL91277, Type DLS90/26-9.35 Ver 4, Made in Canada, Consultronics branding, and ENTELA CSA field evaluation mark
  • Spirent DLS 90 front panel close-up showing Spirent logo, DLS 90 model designation, and Channel B RJ jack

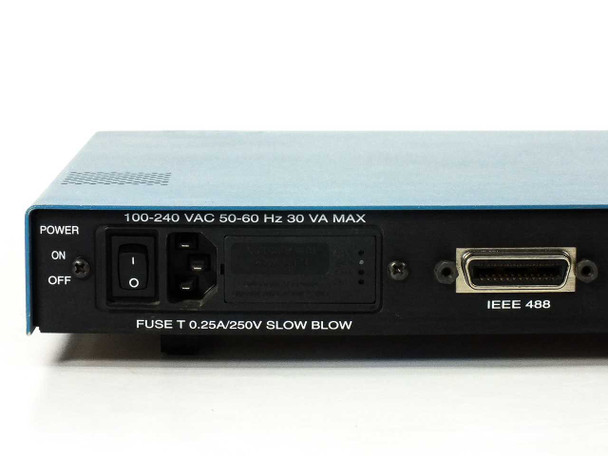

  • Spirent DLS 90 rear panel close-up showing power switch, IEC inlet, 100-240VAC 50-60Hz 30VA rating label, fuse holder, and IEEE 488 GPIB connector

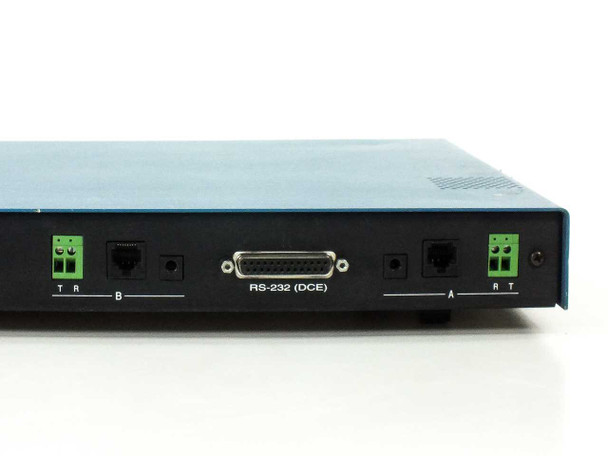

  • Spirent DLS 90 rear panel close-up showing Channel A and B terminal blocks, RJ ports, and central RS-232 DCE DB-25 connector
$276.00
Was: $550.00
Current Stock: 1

Sold Out

Description

Spirent DLS 90 DLS90/26-9.35 Ver 4 Wireline Simulator IEEE 488 RS-232 100-240V

DSL loop emulator and wireline simulator for testing DSL and xDSL modems in subscriber line environments. Generates realistic DSL line conditions for modem and CPE validation.

Specifications & What's Included

  • Model: DLS 90 (DLS90/26-9.35), Version 4
  • Type: Wireline Simulator / DSL Loop Emulator
  • Interface: IEEE 488 GPIB (rear), RS-232 DCE (front DB-25 female + RJ ports)
  • Power: 100-240 VAC, 50-60 Hz, 30 VA max; T 0.25A / 250V fuse
  • Form Factor: 1U rackmount with front-panel LCD display
  • Channels: A and B (RJ ports + terminal blocks)
  • Certifications: CSA SPE-1000, Canadian Electrical Code, CE
  • Unit only; no accessories included

Applications

Used in DSL subscriber loop simulation, telecom R&D, and QA testing environments. Operates with DSL modem and CPE test setups to replicate line conditions for validation and troubleshooting. Compatible with xDSL modem testing protocols and legacy telecom development platforms.

Condition: Used
This Spirent DLS 90 Wireline Simulator (Type DLS90/26-9.35, Version 4) has been inspected and is in good condition. It was pulled from a working environment where it was actively in use and functional. The chassis shows light surface wear consistent with normal lab use, and all visible connectors — including the rear IEEE 488 (GPIB) port, RS-232 DCE DB-25, channel RJ jacks, and terminal blocks — appear intact. The front-panel LCD and controls appear undamaged. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Spirent
Model:
DLS 90
MPN:
DLS90/26-9.35
Type:
Wireline Simulator / DSL Loop Emulator
SKU:
50220
Version:
Version 4
Manufacturer:
Consultronics (now Spirent)
Country/Region of Manufacture:
Canada
Power Requirements:
100-240 VAC, 50-60 Hz, 30 VA Max
Fuse:
T 0.25A / 250V Slow Blow
Interface Type:
IEEE 488 (GPIB), RS-232 (DCE)
RS-232 Port:
RS-232 DCE (DB-25 female), front panel RJ ports
GPIB Interface:
IEEE 488 (standard GPIB connector, rear panel)
Form Factor:
Rackmount, 1U
Display:
Front-panel LCD display
Ports / Connections:
Channel A and B: RJ port + terminal block each side
Certifications:
CSA SPE-1000, Canadian Electrical Code Part 1, CE
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; no accessories included unless shown in photos.
Compatible With:
DSL / xDSL modem and CPE test environments
Application:
DSL subscriber loop simulation, telecom R&D, QA testing
Condition Notes:
Spirent DLS 90 Wireline Simulator (DLS90/26-9.35 Ver 4) inspected and in good condition. Pulled from a working environment where it was in use and functional. Light surface wear; all visible connectors intact. Please contact us with any questions.
View AllClose

Related Products

Related Products

Spirent DLS 90 Wireline Simulator DL9-26-9 front panel angled left view showing LCD display and Spirent logo Spirent DLS 90 Wireline Simulator rear panel angled view showing IEEE-488, RS-232 DCE, and loop connectors
Add to Cart
Quick view

Spirent DLS 90 Wireline Simulator DL9-26-9 Ver 4 100-240VAC IEEE-488 RS-232

Spirent

$350.00
Was: $700.00
Spirent DLS 90 Wireline Simulator DL9-26-9 Ver 4 100-240VAC IEEE-488 RS-232The Spirent DLS 90 is a rackmount wireline simulator designed to emulate telephone subscriber loop conditions for DSL and...
50221
SKU:
50221
Availability:
Usually ships within 1-2 business days.
Weight:
12.00 LBS
Brand:
Spirent Communications
Model:
DLS 90
MPN:
DL9-26-9
Type:
Wireline Simulator / DSL Loop Emulator
SKU:
50221
Version:
Version 4
Wire Gauge:
26 AWG
Max Loop Length:
9350 ft
Power Requirements:
100-240VAC, 50-60Hz, 50 VA Max
Fuse:
T 0.25A / 250V Slow Blow
Interface Type:
IEEE-488 (GPIB), RS-232 (DCE)
Connector Types:
IEEE-488, DB-25 RS-232 DCE, RJ-style loop ports
Number of Loop Ports:
2 (Port A and Port B)
Form Factor:
Rackmount, 1U
Display:
LCD front panel (loop length, AWG, model readout)
Country/Region of Manufacture:
Canada
Certifications:
CE, CSA (Entela evaluation based on CSA SPE-1000)
Condition:
Used – Pulled from Working Environment
Seller Notes:
Unit only; pulled from working environment. See photos.
Calibration Date:
Calibrated 05/15/2007 by UADA (Simco Electronics)
Condition Notes:
Spirent DLS 90 Wireline Simulator DL9-26-9 Ver 4. Inspected, in good used condition. Pulled from a working environment where it was in active use. Minor surface wear. Last calibrated 05/15/2007 per front label.

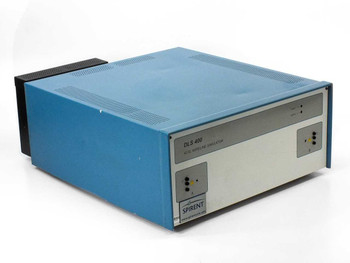

Spirent DLS 400 ADSL Wireline Simulator – front-left three-quarter view showing blue enclosure and front panel label Spirent DLS 400 ADSL Wireline Simulator – rear-right three-quarter view showing rear panel connectors and external module
