SPAN GCS-305 Gas Cylinder Scale 300 LBS SAM-305 Amplifier 9.25x9.25 Platform

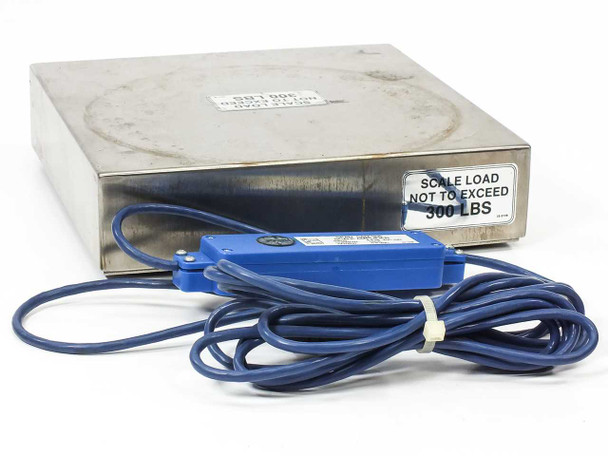

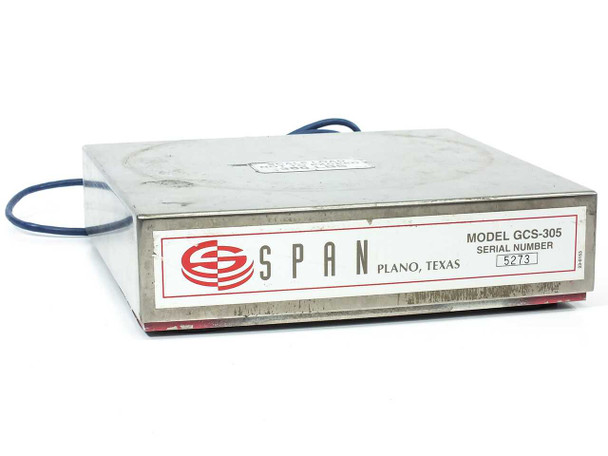

The SPAN GCS-305 is a dedicated gas cylinder platform scale designed to continuously monitor the weight — and therefore the remaining contents — of compressed gas cylinders. The scale consists of a stainless steel platform base connected to a SPAN SAM-305 scale amplifier, which converts the load cell signal to a standard 0-5 VDC analog output compatible with a wide range of process controllers and monitoring systems. This unit does not include a terminal/display — the platform and amplifier with cable are what ship.
Specifications & What's Included
- Manufacturer: SPAN (Plano, Texas)
- Model: GCS-305
- Maximum Capacity: 300 LBS
- Platform Dimensions: 9.25 x 9.25 inches
- Platform Construction: Stainless steel

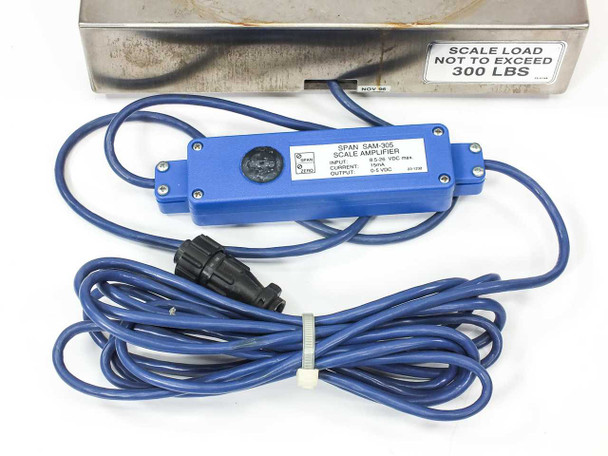

- Amplifier: SPAN SAM-305 Scale Amplifier (Part No. 23-1232)
- Amplifier Input Voltage: 8.5–26 VDC max
- Amplifier Current: 15mA
- Amplifier Output: 0–5 VDC analog
- Amplifier Controls: SPAN and ZERO buttons

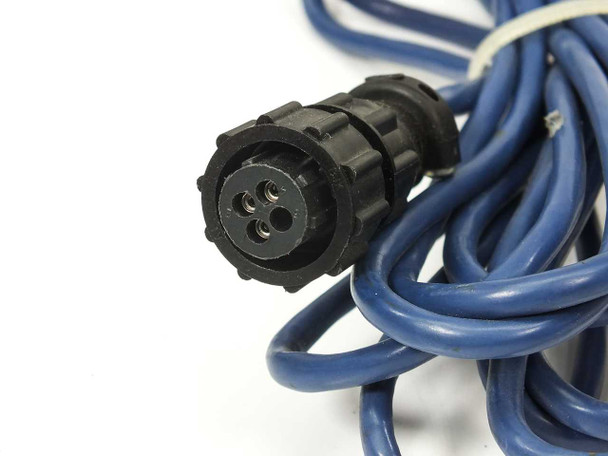

- Cable Connector: 4-pin circular connector with rubber boot
- Includes: GCS-305 scale platform and SAM-305 amplifier with cable
- Not Included: Terminal / display
Applications
Gas cylinder scales like the SPAN GCS-305 are used in laboratories, industrial plants, semiconductor fabs, medical gas supply systems, and any facility where the contents level of a pressurized gas cylinder needs to be tracked by weight rather than pressure. Weighing is the only reliable method for monitoring the remaining contents of liquefied gas cylinders (such as CO₂, N₂O, and mixed gases) where pressure does not drop linearly with consumption. The SAM-305 amplifier's 0–5 VDC output connects directly to PLCs, data loggers, or process control systems, making this scale suitable for automated cylinder management and low-level alarm triggering. These systems have been used extensively in semiconductor process gas monitoring, laboratory gas supply management, and hospital/medical gas distribution since the 1990s.
This SPAN GCS-305 Gas Cylinder Scale with SAM-305 amplifier has been inspected and is in good used condition. It was pulled from a working environment where it was previously in service. The stainless steel platform shows general surface wear and scuffing consistent with field use, and the SAM-305 amplifier has some wear around the SPAN button area. The cable and 4-pin circular connector appear intact. The terminal is not included with this unit — the scale platform and SAM-305 amplifier with cable are what ship. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
SPAN |
Model: |
GCS-305 |
MPN: |
GCS-305 |
Secondary Model: |
SAM-305 |
Type: |
Gas Cylinder Platform Scale with Scale Amplifier |
SKU: |
49808 |
Capacity: |
300 LBS |
Platform Dimensions: |
9.25 x 9.25 inches |
Platform Material: |
Stainless Steel |
Amplifier Model: |
SPAN SAM-305 |
Amplifier Part Number: |
23-1232 |
Amplifier Input Voltage: |
8.5-26 VDC max |
Amplifier Current: |
15mA |
Amplifier Output: |
0-5 VDC |
Connector Type: |
Multi-pin circular connector (4-pin, rubber boot) |
Country/Region of Manufacture: |
United States |
Application: |
Gas cylinder weight monitoring, industrial weighing |
Seller Notes: |
Includes GCS-305 scale platform and SAM-305 amplifier with cable. No terminal included. |
Condition Notes: |
This SPAN GCS-305 Gas Cylinder Scale with SAM-305 amplifier has been inspected and is in good used condition, pulled from a working environment. Platform shows surface wear. No terminal included. |
