Span LR300 2-Channel Digital Scale Terminal 12VDC RS-232 RS-422 LR300-2100

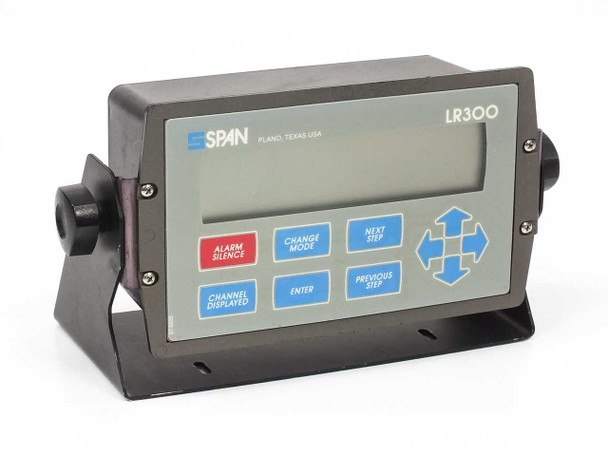

The Span LR300 is a 2-channel digital scale terminal and weight indicator designed for industrial and process weighing applications. It accepts inputs from two independent scale channels simultaneously and provides a front-panel LCD display with a full keypad for operator navigation, alarm acknowledgment, and channel selection. The unit is powered by 12V DC and communicates via RS-232 or RS-422 serial interface through a rear DB-9 connector. Made in the USA by Span Instruments of Plano, Texas, the LR300 series is built for demanding industrial environments requiring multi-channel weight monitoring.
Specifications & What's Included
- Model: Span LR300 / LR300-2100
- Number of Channels: 2 (Channel 1 and Channel 2, independently configurable)
- Power: 12V DC (screw terminal power input on rear)
- Serial Interface: RS-232 and RS-422 (selectable)

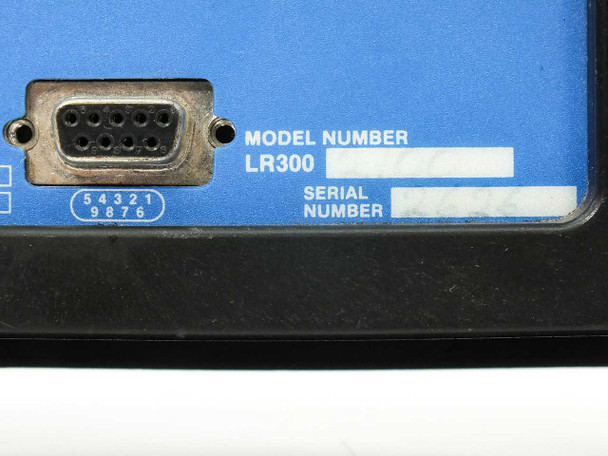

- Serial Connector: DB-9 (rear panel)

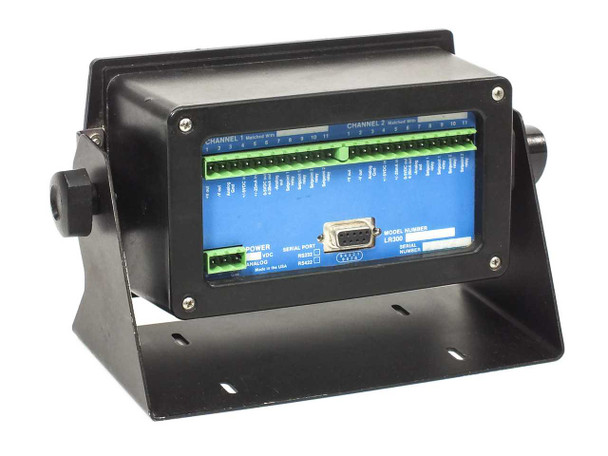

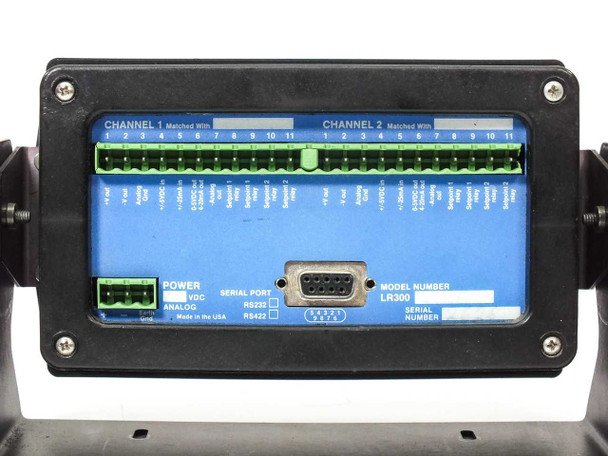

- Input Connections: Dual screw terminal blocks, 11 positions per channel (rear panel)
- Display: LCD (front panel)
- Front Panel Controls: Alarm Silence, Change Mode, Next Step, Previous Step, Channel Displayed, Enter, 4-way arrow navigation
- Form Factor: Benchtop with integrated steel mounting bracket
- Country of Manufacture: United States (Plano, Texas)
- Included: Span LR300-2100 unit with mounting bracket
Applications
The Span LR300 series is used in industrial and process weighing systems where multiple scale inputs must be monitored and controlled from a single terminal. Typical deployments include manufacturing floor weigh stations, batching and filling lines, hopper and tank weighing, and any application requiring simultaneous display and alarming across two independent load cell channels. The RS-232/RS-422 serial interface allows the terminal to be integrated with PLCs, data acquisition systems, or host computers for data logging and process control. These terminals are also found in quality control labs and distribution environments where accurate multi-channel weight data is critical.
Span LR300 2-Channel Digital Scale Terminal 12VDC RS-232 RS-422 in used condition. Unit has been tested and confirmed to power on and respond to touch inputs. The enclosure exhibits typical light wear consistent with prior industrial use. Mounting bracket is included. Please note that scale-specific weighing and channel functions have not been fully verified due to lack of compatible test equipment on hand.
Warranty Information
Additional Information
Brand: |
Span |
Model: |
LR300 |
MPN: |
LR300-2100 |
Type: |
2-Channel Digital Scale Terminal / Weight Indicator |
SKU: |
49969 |
Number of Channels: |
2 |
Power Requirements: |
12V DC |
Serial Interface: |
RS-232, RS-422 |
Serial Port Connector: |
DB-9 |
Input Connections: |
Screw terminal blocks, 11 positions per channel |
Display Type: |
LCD |
Front Panel Controls: |
Alarm Silence, Change Mode, Next Step, Previous Step, Channel Displayed, Enter, Arrow keys |
Form Factor: |
Benchtop with mounting bracket |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes mounting bracket. Powers on and responds to touch. |
Condition: |
Used – Inspected, powers on and responds to touch |
Condition Notes: |
Span LR300 2-Channel Digital Scale Terminal. Tested, powers on, responds to touch. Light industrial wear. Mounting bracket included. Scale functions not verified. |
