Description
SPAN GCS-304 Gas Cylinder Scale 300 lb SAM-304 Scale Amplifier 4-20mA 24VDC

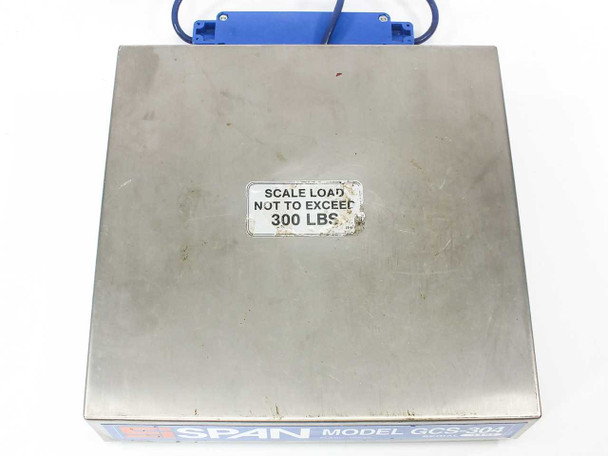

The SPAN GCS-304 is a stainless steel platform scale designed specifically for weighing gas cylinders in laboratory and industrial environments. It is paired with the SPAN SAM-304 Scale Amplifier, which conditions the load cell signal and outputs a standard 4-20 mA analog signal for connection to a process controller, PLC, or display terminal. The scale platform measures 9.25 × 9.25 inches and is rated to a maximum load of 300 lbs.
Specifications & What's Included
- Make: SPAN (Plano, Texas)
- Scale Model: GCS-304
- Maximum Capacity: 300 lbs
- Platform Dimensions: 9.25 in × 9.25 in
- Platform Material: Stainless steel

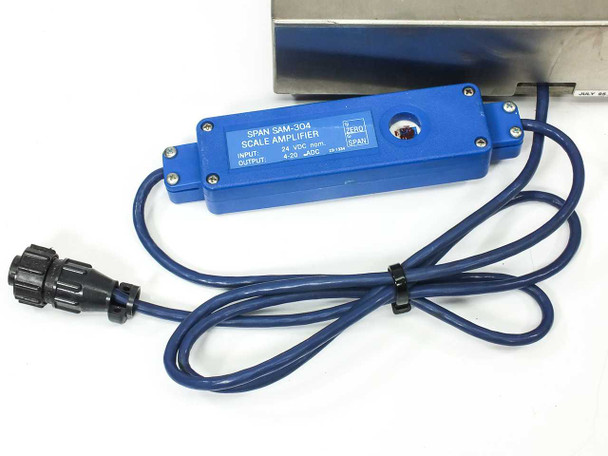

- Amplifier Model: SPAN SAM-304 Scale Amplifier
- Amplifier Input: 24 VDC nominal
- Amplifier Output: 4-20 mA analog signal
- Amplifier Controls: ZERO and SPAN trim adjustment potentiometers
- Cable Termination: 4-pin circular waterproof connector
- Includes: GCS-304 scale platform, SAM-304 amplifier module with attached cable and 4-pin connector
- Not Included: Display terminal or readout (required for operation)
- Serial Number: 1151
Applications
Gas cylinder scales like the GCS-304 are used in laboratories and industrial facilities to monitor the remaining contents of compressed gas cylinders by weight — a more reliable method than pressure-based gauging for many gas types. The 4-20 mA output from the SAM-304 amplifier makes this scale compatible with standard process control systems, PLCs, and data acquisition hardware that accept analog current-loop inputs. Typical applications include monitoring of specialty gas supplies in semiconductor fabrication, chemical processing, welding operations, and analytical laboratory environments where accurate cylinder inventory management is important.

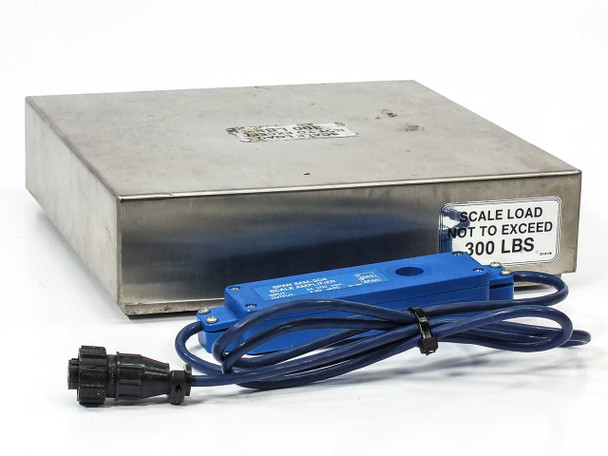

This SPAN GCS-304 Gas Cylinder Scale with SAM-304 Scale Amplifier is being sold AS-IS for parts or repair. We do not have a compatible display terminal to test the scale's functionality, so it cannot be verified as working. The unit appears to be in good physical condition — the stainless steel platform shows normal cosmetic wear consistent with prior use, and the blue SAM-304 amplifier module and cable appear intact. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
SPAN |
Model: |
GCS-304 |
MPN: |
GCS-304 |
Secondary Model: |
SAM-304 |
SKU: |
49811 |
Type: |
Gas Cylinder Scale with Scale Amplifier |
Seller Notes: |
Includes SAM-304 scale amplifier with attached cable and 4-pin connector. No display terminal included. |
Platform Dimensions: |
9.25 in x 9.25 in |
Maximum Capacity: |
300 lbs |
Amplifier Model: |
SPAN SAM-304 |
Amplifier Input Voltage: |
24 VDC nominal |
Amplifier Output Signal: |
4-20 mA |
Platform Material: |
Stainless Steel |
Connector Type: |
4-pin circular waterproof connector |
Country/Region of Manufacture: |
United States |
Form Factor: |
Benchtop / Floor Platform |
Application: |
Gas Cylinder Weighing, Industrial Process Weighing |
Condition Notes: |
This SPAN GCS-304 Gas Cylinder Scale with SAM-304 Amplifier is sold AS-IS — no terminal available to test. Appears in good physical condition. Scale and amplifier included. Not tested, not guaranteed functional. |
