Description
SoloPower SP3L-220 220W Flexible Solar Panel ETFE MC4 RV Boat Battery Charging

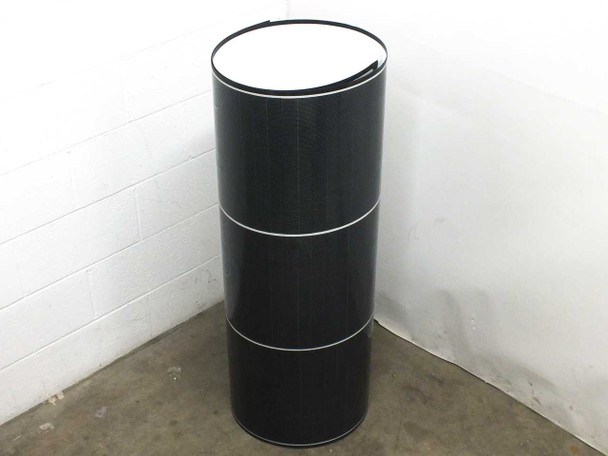

The SoloPower SP3L-220 is a 220-watt flexible thin-film solar panel using ETFE (Ethylene Tetrafluoroethylene) encapsulation over a CIGS photovoltaic cell layer. At just 2mm thick and 13.2 lbs, it is dramatically lighter and thinner than conventional glass-framed crystalline silicon panels. The panel rolls up for storage and transport in a cylindrical tube, and can be mounted to curved or irregular surfaces without penetrating fasteners.
Specifications & What's Included

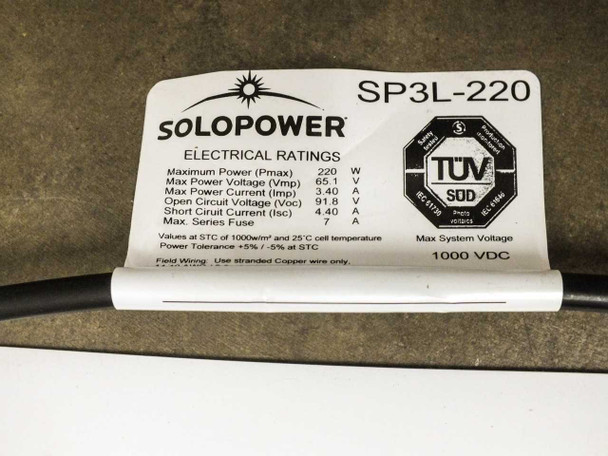

- Model: SoloPower SP3L-220
- Rated Power (Pmax): 220 W
- Voltage at Pmax (Vmp): 65.1 V
- Current at Pmax (Imp): 3.40 A
- Open-Circuit Voltage (Voc): 91.8 V
- Short-Circuit Current (Isc): 4.40 A
- Max Series Fuse Rating: 7 A
- Max System Voltage: 600 VDC (Intertek/UL 1703 certified rating)
- Surface Encapsulant: ETFE
- Cell Technology: CIGS thin-film
- Length: 86.5 in (7.2 ft / 2.197 m)
- Width: 45.1 in (3.75 ft / 1.146 m)
- Thickness: 0.1 in (2.0 mm)
- Connectors: MC4 cables at opposite ends of panel
- Wiring: Use stranded copper wire only (per label)
- Fire Rating: Class C

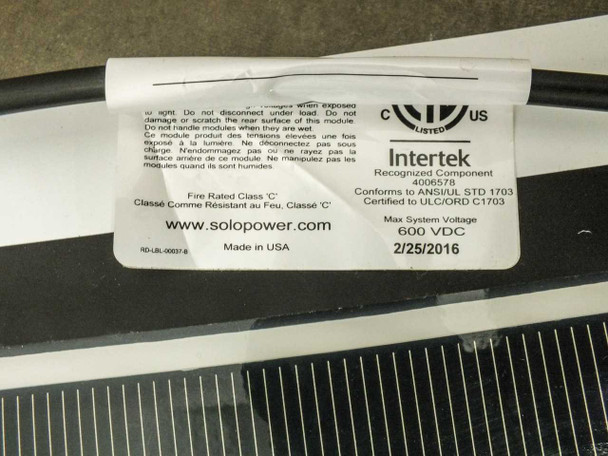

- Certifications: TÜV SÜD; Intertek Recognized Component 4006578 — ANSI/UL STD 1703, ULC/ORD C1703
- Country of Manufacture: USA
- Manufacture Date: 2/25/2016
- Included: Panel with MC4 connector cables, cylindrical storage/transport tube
- Note: Border color and cell appearance may vary slightly from the photos shown
Applications
Flexible ETFE thin-film panels like the SP3L-220 are designed for installations where a conventional rigid glass panel is impractical. The most common uses are RV rooftops (where the curved profile and low weight avoid the need for roof penetrations), boat decks and cabin tops, camper vans, and portable off-grid battery charging setups. The 65.1V Vmp makes this panel well suited for 48V battery bank charging via an MPPT charge controller, or for series/parallel strings in larger off-grid arrays. CIGS thin-film technology also performs comparatively better than monocrystalline silicon in diffuse light and partial shading conditions, which can be an advantage in marine and overcast environments. SoloPower was a US-based thin-film solar manufacturer active in the 2010s, and the SP3L series was their commercial flexible rooftop product line, certified to UL 1703 and built for lightweight structural applications.
This SoloPower SP3L-220 220W Flexible Solar Panel is new and unused. These panels have been stored in and outdoors over time, so the ETFE surface and edge trim may show minor storage wear, and the border color or cell appearance may vary slightly from the photos. Each panel comes with MC4 connector cables at opposite ends and ships rolled in its cylindrical storage tube. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
SoloPower |
Model: |
SP3L-220 |
MPN: |
SP3L-220 |
Type: |
Flexible Thin-Film Solar Panel |
SKU: |
52194 |
Rated Power (Pmax): |
220 W |
Voltage at Pmax (Vmp): |
65.1 V |
Current at Pmax (Imp): |
3.40 A |
Open-Circuit Voltage (Voc): |
91.8 V |
Short-Circuit Current (Isc): |
4.40 A |
Max Series Fuse Rating: |
7 A |
Max System Voltage: |
600 VDC (Intertek/UL certified) |
Encapsulant / Surface Material: |
ETFE (Ethylene Tetrafluoroethylene) |
Connector Type: |
MC4 |
Panel Length: |
86.5 in (7.2 ft / 2.197 m) |
Panel Width: |
45.1 in (3.75 ft / 1.146 m) |
Panel Thickness: |
0.1 in (2.0 mm) |
Form Factor: |
Flexible / Rollable |
Certifications: |
TÜV SÜD; Intertek UL 1703 / ULC/ORD C1703 |
Fire Rating: |
Class C |
Country/Region of Manufacture: |
United States |
Manufacture Date: |
2/25/2016 |
Compatible With: |
RV, boat, camper, off-grid battery systems |
Seller Notes: |
Includes MC4 connector cables at opposite ends of panel. Stored in and outdoors. Colors/borders may vary from photo. |
Condition Notes: |
SoloPower SP3L-220 220W Flexible Solar Panel is new and unused. Stored in and outdoors; minor storage wear possible. ETFE surface, border color, or cell appearance may vary from photos. Includes MC4 cables. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
