Description

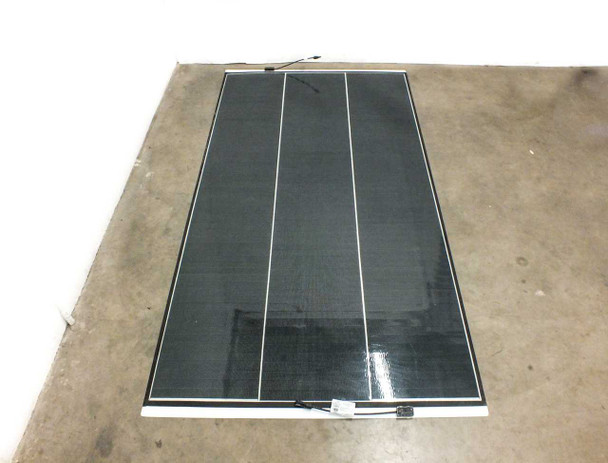

SoloPower SP3L-200 200 Watt CIGS Solar Panel 7' Battery Charging RV Camping MC4
The SoloPower SP3L-200 is a 200-watt flexible thin-film solar panel using CIGS (Copper Indium Gallium Selenide) photovoltaic technology. Unlike rigid glass-framed panels, the SP3L-200 is a rollable, flexible module approximately 7.2 feet long that weighs just 13.2 lbs. It is designed for surface mounting without penetrating fasteners, making it well suited for curved or lightweight surfaces where a conventional framed panel cannot be used.
Specifications & What's Included
- Manufacturer: SoloPower / Model: SP3L-200
- Cell Technology: CIGS (Copper Indium Gallium Selenide) thin-film
- Rated Power (Pmax): 200 W
- Voltage at Maximum Power (Vmp): 65.1 V
- Current at Maximum Power (Imp): 3.40 A
- Open-Circuit Voltage (Voc): 91.8 V
- Short-Circuit Current (Isc): 4.40 A
- Max Series Fuse Rating: 7 A
- Max System Voltage: 600 VDC
- Power Tolerance: +5% / -3% at STC (1000 W/m², 25°C cell temperature)
- Front Sheet: ETFE (Ethylene Tetrafluoroethylene) — weather-resistant, non-glass
- Junction Box: Sealed, with low-profile bypass diodes
- Connectors: MC4 cables at opposite ends of the panel
- Field Wiring: Stranded copper wire, 14–10 AWG / 2.5–6 mm², 90°C minimum insulation rating
- Length: 86.5 in (7.2 ft / 2.197 m)
- Width: 45.1 in (3.75 ft / 1.146 m)
- Thickness: 0.1 in (2.0 mm)
- Standards: UL 1703, IEC 61646, IEC 61730
- Includes: Panel with MC4 connector cables pre-attached at both ends
Applications
CIGS thin-film panels like the SP3L-200 are used in off-grid and mobile power applications where weight, flexibility, and a low profile matter more than the peak efficiency of rigid crystalline panels. Common uses include rooftop mounting on RVs and campervans, deck mounting on sailboats and powerboats, portable overland and camping setups, and supplemental charging for 12V or 24V battery banks. The flexible rollable construction lets the panel conform to curved surfaces — an RV roof or boat deck — without drilling or heavy mounting hardware. At 65.1V Vmp, the SP3L-200 is compatible with MPPT charge controllers rated for higher-voltage inputs and can be configured in series strings up to 600 VDC for larger off-grid arrays. SoloPower produced these panels in Portland, Oregon as part of their commercial thin-film product line aimed at the building-integrated and mobile solar markets.
These SoloPower SP3L-200 200W CIGS flexible solar panels are new and unused, listed in out-of-box condition. The panels have been stored both indoors and outdoors over time; they are unused but may show minor cosmetic variation from storage. Please note that the borders, weatherproofing color, and cell appearance may vary slightly from the photos shown — this is normal across production runs. Each panel comes with MC4 connector cables at opposite ends. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
SoloPower |
Model: |
SP3L-200 |
MPN: |
SP3L-200 |
Type: |
Flexible CIGS Thin-Film Solar Panel |
SKU: |
52372 |
Rated Power (Pmax): |
200 W |
Voltage at Pmax (Vmp): |
65.1 V |
Current at Pmax (Imp): |
3.40 A |
Open-Circuit Voltage (Voc): |
91.8 V |
Short-Circuit Current (Isc): |
4.40 A |
Max Series Fuse Rating: |
7 A |
Max System Voltage: |
600 VDC |
Cell Technology: |
CIGS (Copper Indium Gallium Selenide) |
Front Sheet Material: |
ETFE (Ethylene Tetrafluoroethylene) |
Connector Type: |
MC4 |
Length: |
86.5 in (7.2 ft / 2.197 m) |
Width: |
45.1 in (3.75 ft / 1.146 m) |
Thickness: |
0.1 in (2.0 mm) |
Form Factor: |
Flexible / Rollable |
Standards Compliance: |
UL 1703, IEC 61646, IEC 61730 |
Power Tolerance: |
+5% / -3% at STC |
Field Wiring: |
Stranded copper wire, 14–10 AWG / 2.5–6 mm² |
Application: |
RV, Boat, Camping, Off-Grid Battery Charging |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes MC4 connector cables at opposite ends of panel. Panel only. |
Condition Notes: |
SoloPower SP3L-200 200W CIGS flexible solar panels — new, unused, out-of-box condition. Stored indoors and outdoors; unused but may have minor storage wear. Panel borders/color may vary slightly from photos. MC4 cables included. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
