SoloPower SP3L-180 180W Flexible Thin-Film ETFE Solar Panel MC4 RV Boat Camping

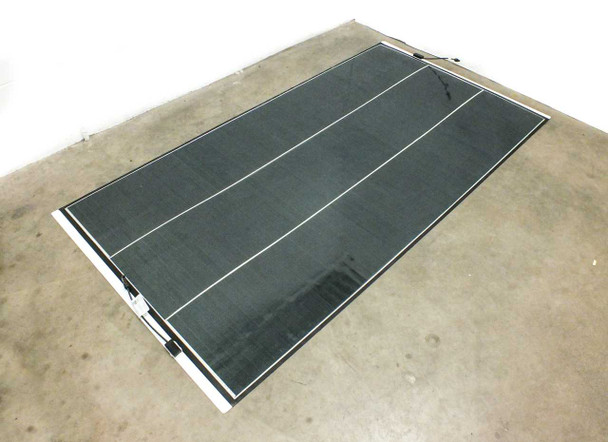

The SoloPower SP3L-180 is a 180-watt flexible thin-film solar panel using CIGS (copper indium gallium selenide) cell technology encapsulated under a durable ETFE (ethylene tetrafluoroethylene) surface layer. At just 0.1 inches thick and 13.2 lbs, it rolls up for storage and lays flat without rigid framing, making it practical for curved or lightweight mounting surfaces where a conventional glass panel would not work. MC4 connector cables exit from opposite ends of the panel for straightforward series or parallel wiring.
Specifications & What's Included

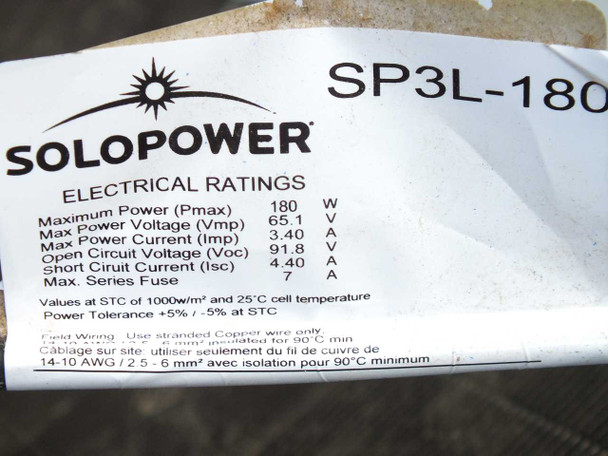

- Model: SoloPower SP3L-180
- Rated Power (Pmax): 180 W
- Voltage at Pmax (Vmp): 65.1 V
- Current at Pmax (Imp): 3.40 A
- Open Circuit Voltage (Voc): 91.8 V
- Short Circuit Current (Isc): 4.40 A
- Max Series Fuse Rating: 7 A
- Max System Voltage: 600 VDC
- Power Tolerance: +5% / -5% at STC (1000 W/m², 25°C cell temperature)
- Cell Technology: CIGS thin-film
- Surface Encapsulant: ETFE
- Connectors: MC4, one at each end of the panel
- Field Wiring: stranded copper, 14–10 AWG / 2.5–6 mm², rated for 90°C minimum
- Length: 86.5 in (7.2 ft / 2.197 m)
- Width: 45.1 in (3.75 ft / 1.146 m)
- Thickness: 0.1 in (2.0 mm)
- Includes: panel with attached MC4 connector cables
- Note: border color and cell appearance may vary slightly from the panel pictured
Applications
CIGS thin-film panels like the SP3L-180 are used wherever a rigid glass panel is impractical — most commonly on RV rooftops, boat decks, and vehicle-based off-grid systems where weight and mounting flexibility matter. The rollable, frameless design allows installation on curved surfaces using adhesive or tape-based mounting rather than penetrating hardware. At 180W and 65V Vmp, the panel is suited for 12V, 24V, and 48V battery bank charging via an appropriate MPPT charge controller (the high Voc of 91.8V should be verified against the controller's input voltage range before use). SoloPower manufactured its SP3L series in Portland, Oregon using a roll-to-roll CIGS deposition process, which was distinct from traditional silicon panel manufacturing and produced panels in this long, narrow, rollable form factor. These panels have also been used in portable and emergency power setups, camping overland rigs, and marine applications where thin, lightweight power generation is a priority.
These SoloPower SP3L-180 180W flexible thin-film solar panels are new and unused — they have not been installed or connected to any system. They have been stored both indoors and outdoors over their storage lifetime; the ETFE surface and cells are intact and show no signs of wear in our photos. Note that the border color and cell appearance may vary slightly from the panel pictured, as individual units can differ. MC4 connector cables are attached at opposite ends of each panel. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
SoloPower |
Model: |
SP3L-180 |
MPN: |
SP3L-180 |
Type: |
Flexible Thin-Film CIGS Solar Panel |
SKU: |
52373 |
Rated Power (Pmax): |
180 W |
Voltage at Pmax (Vmp): |
65.1 V |
Current at Pmax (Imp): |
3.40 A |
Open Circuit Voltage (Voc): |
91.8 V |
Short Circuit Current (Isc): |
4.40 A |
Max Series Fuse Rating: |
7 A |
Max System Voltage: |
600 VDC |
Power Tolerance: |
+5% / -5% at STC |
Cell Technology: |
CIGS Thin-Film |
Surface / Encapsulant: |
ETFE |
Connector Type: |
MC4 |
Panel Length: |
86.5 in (7.2 ft / 2.197 m) |
Panel Width: |
45.1 in (3.75 ft / 1.146 m) |
Thickness: |
0.1 in (2.0 mm) |
Field Wiring: |
Stranded copper, 14-10 AWG / 2.5-6 mm² |
Application: |
RV, Boat, Camping, Off-Grid Battery Charging |
Seller Notes: |
Includes panel with MC4 connector cables at opposite ends. Border and cell color may vary from photo. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
SoloPower SP3L-180 180W flexible solar panels are new and unused but have been stored indoors and outdoors. ETFE surface intact, no installation wear. MC4 connectors attached. Border/cell color may vary from photo. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
