SoloPower SP1-75 75W 21.8V Flexible Thin Film CIGS Solar Panel MC4 Rooftop

(No reviews yet) Write a Review
SKU:
48288
MPN:
SP1-75
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Shipping:
Calculated at Checkout

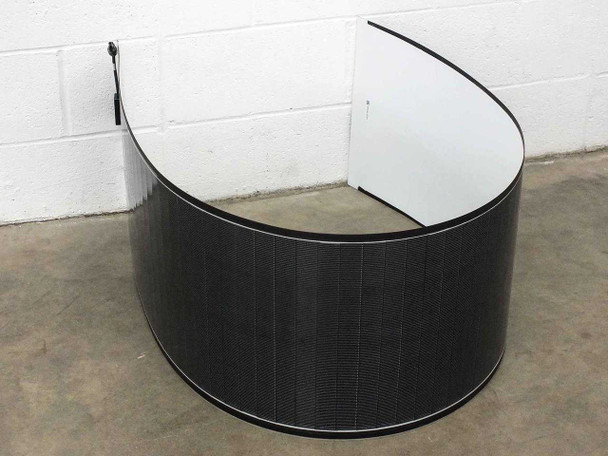

  • SoloPower SP1-75 flexible CIGS solar panel rolled into a cylinder showing its curved, rollable form factor
  • SoloPower SP1-75 75W flexible thin-film solar panel laid flat on the floor showing full 7-foot length
  • SoloPower SP1-75 electrical ratings label showing 75W Pmax, 21.8V Vmp, 30.6V Voc, TÜV SÜD certification, and 1000VDC max system voltage
  • Close-up of SoloPower SP1-75 thin-film CIGS solar cell surface texture showing characteristic thin-film striping pattern
  • SoloPower SP1-75 panel end detail showing white backing sheet and QC label (printed upside-down) with barcode
  • MC4 male connector on SoloPower SP1-75 solar panel lead wire showing STOP locking mechanism markings
  • MC4 female connector on SoloPower SP1-75 solar panel lead wire showing locking collar detail
  • SoloPower SP1-75 junction box showing IP65/IP67 rating, 1000V/600V markings, and DANGER warning label
$85.00
Was: $175.00
Current Stock: 2

Sold Out

Description

SoloPower SP1-75 75W 21.8V Flexible Thin Film CIGS Solar Panel MC4 Rooftop

The SoloPower SP1-75 is a 75-watt flexible thin-film CIGS (Copper Indium Gallium Selenide) solar panel designed for rooftop and building-integrated photovoltaic applications. At just 0.1 inches thick and 4.6 lbs, it rolls up to a 10–12 inch diameter for transport and storage, and lies flat across low-slope or curved roof surfaces without the bulk of a framed crystalline panel. MC4 connectors are located on opposite ends of the panel for standard series or parallel string wiring.

Specifications & What's Included

  • Model: SoloPower SP1-75
  • Solar cell technology: CIGS (Copper Indium Gallium Selenide) thin film
  • Maximum Power (Pmax): 75 W
  • Maximum Power Voltage (Vmp): 21.8 V
  • Maximum Power Current (Imp): 3.40 A
  • Open Circuit Voltage (Voc): 30.6 V
  • Short Circuit Current (Isc): 4.30 A
  • Max Series Fuse: 7 A
  • Max System Voltage: 1000 VDC
  • Power tolerance: +5% / -3% at STC (1000 W/m², 25°C cell temperature)
  • Length: 86.5 in / 2.197 m (7.2 ft)
  • Width: 15.7 in / 0.398 m (1.3 ft)
  • Thickness: 0.1 in / 2.0 mm
  • Rolled diameter: 10–12 inches
  • Roof load from module: 0.49 lbs/ft² / 2.4 kg/m²
  • Connectors: MC4, one on each end of the panel
  • Junction box: IP65/IP67 rated, 1000V / 600V
  • Certifications: TÜV SÜD, IEC 61730, IEC 61646
  • Field wiring: 14–10 AWG / 2.5–6 mm² insulated copper wire, rated for 90°C min
  • Manufacturer: SoloPower, San Jose, California

Applications

CIGS thin-film panels like the SP1-75 are used in rooftop photovoltaic systems where low weight, flexibility, and minimal roof loading are priorities — common applications include commercial low-slope membrane roofs, metal standing-seam roofs, and building-integrated PV (BIPV) installations. Unlike rigid framed panels, the SP1 series conforms to slightly curved surfaces and installs without penetrating the roof substrate, making it a practical choice for retrofit projects and structures with weight restrictions. SoloPower produced these panels at their San Jose facility in the early 2010s as part of an effort to bring roll-to-roll manufactured CIGS panels to the commercial rooftop market. They are compatible with standard grid-tied and off-grid inverter systems that accept 1000VDC string voltage, and wire into conventional combiner boxes using standard MC4-compatible hardware.

Condition: Open Box
This SoloPower SP1-75 flexible CIGS solar panel is unused and comes directly from SoloPower's QC department at their San Jose, California manufacturing facility. It has been tested to output voltage. Many of these panels have handwritten markings on them from the testing process — this is normal and expected for QC-sourced units. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
SoloPower
Model:
SP1-75
MPN:
SP1-75
Type:
Flexible Thin-Film CIGS Solar Panel
SKU:
48288
Seller Notes:
Panel with MC4 connectors on opposite ends. Tested to output voltage.
Country/Region of Manufacture:
United States
Solar Cell Technology:
CIGS (Copper Indium Gallium Selenide) Thin Film
Maximum Power (Pmax):
75 W
Maximum Power Voltage (Vmp):
21.8 V
Maximum Power Current (Imp):
3.40 A
Open Circuit Voltage (Voc):
30.6 V
Short Circuit Current (Isc):
4.30 A
Max Series Fuse:
7 A
Max System Voltage:
1000 VDC
Power Tolerance:
+5% / -3% at STC
Connector Type:
MC4
Panel Length:
86.5 in / 2.197 m (7.2 ft)
Panel Width:
15.7 in / 0.398 m (1.3 ft)
Panel Thickness:
0.1 in / 2.0 mm
Rolled Diameter:
10–12 inches
Roof Load:
0.49 lbs/ft² / 2.4 kg/m²
Form Factor:
Flexible / Rollable
Certifications:
TÜV SÜD, IEC 61730, IEC 61646
Junction Box Rating:
IP65/IP67, 1000V / 600V
Application:
Rooftop, Building-Integrated, Low-Profile Mounting
Condition:
Open Box – Unused; tested to output voltage
Condition Notes:
SoloPower SP1-75 flexible CIGS solar panel, unused, from SoloPower's San Jose QC dept. Tested to output voltage. May have handwritten markings from QC testing. Please view photos and contact us with any questions.
