Description
SoloPower SP1-95 95W Flexible CIGS Thin Film Solar Panel 26V MC4 Rooftop

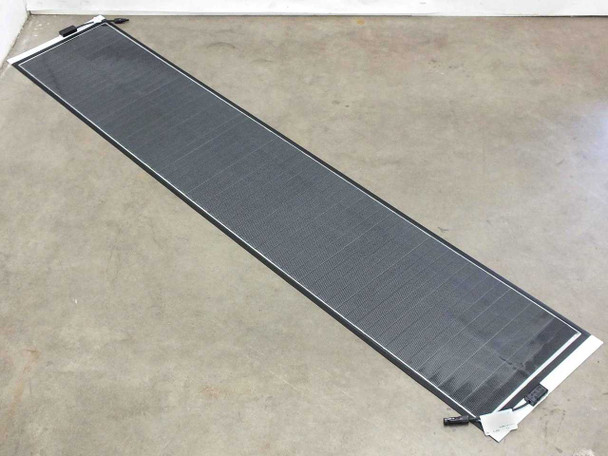

The SoloPower SP1-95 is a flexible, lightweight thin-film solar panel built on CIGS (Copper Indium Gallium Selenide) photovoltaic technology. At just 0.1 inches thick and 4.6 lbs, it generates 95 watts from a long, narrow profile — 86.5 inches long by 15.7 inches wide — making it well suited for rooftop surfaces where conventional rigid glass panels won't work. The panel terminates in standard MC4 connectors for easy integration into common solar wiring systems.
Specifications & What's Included
- Model: SoloPower SP1-95
- Cell Technology: CIGS (Copper Indium Gallium Selenide) thin film
- Maximum Power (Pmax): 95W
- Maximum Power Voltage (Vmp): 26.2V
- Maximum Power Current (Imp): 3.60A
- Open Circuit Voltage (Voc): 34.8V
- Short Circuit Current (Isc): 4.20A
- Max Series Fuse: 7A
- Length: 86.5 in / 2,197 mm
- Width: 15.7 in / 398 mm
- Thickness: 0.1 in / 2.0 mm
- Roof Load From Module: 0.49 lbs/ft² / 2.4 kg/m²

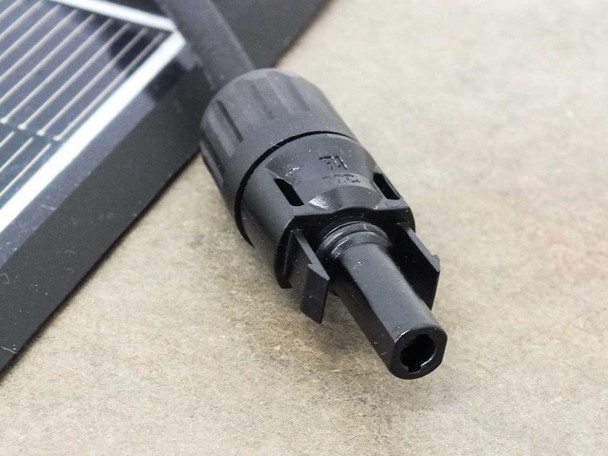

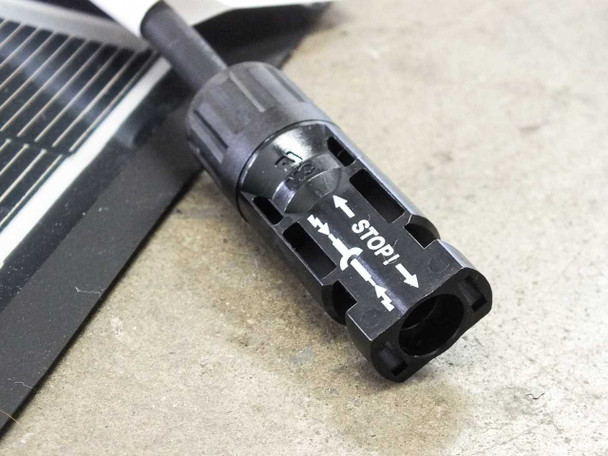

- Output Connectors: MC4 (male + female pair)
- Junction box: IP65-rated black enclosure, rated 1000V / 600V
- Field wiring: 14–10 AWG stranded copper, 90°C insulation minimum
- Ratings at STC: 1000 W/m², 25°C cell temperature, AM 1.5
- Power tolerance: ±5% / −3% at STC
- Includes: panel with attached MC4 leads
Applications
SoloPower's SP1 series was designed specifically for commercial and residential low-slope rooftops where structural load limits, roof membrane compatibility, or aesthetics rule out conventional framed glass panels. The flexible polymer construction lets the panel conform slightly to curved or uneven roof surfaces, and the extremely low roof load — under half a pound per square foot — means it can go on roofs that could not support heavier crystalline modules. The CIGS thin-film cell chemistry performs comparatively well under diffuse light and high-temperature conditions relative to standard monocrystalline silicon, which is useful on rooftops with heat build-up. SoloPower produced the SP1 series at their San Jose, California facility in the early 2010s, positioning it as a building-integrated photovoltaic (BIPV) alternative for flat commercial roofs. The standard MC4 connectors mean it strings directly with other MC4-compatible modules and inverters without special adapters.

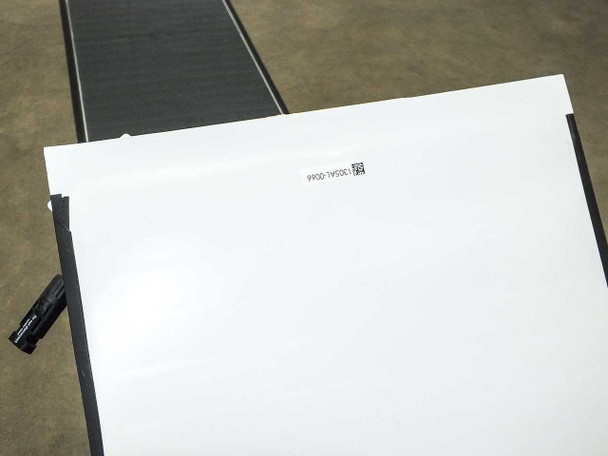

This SoloPower SP1-95 95W flexible CIGS solar panel is new old stock — it was stored in its original box at the San Jose, California facility and has never been installed or used. The panel shows no signs of wear and the cell surface, junction box, and MC4 connectors all look clean and undamaged. Please review our photos and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
SoloPower |
Model: |
SP1-95 |
MPN: |
SP1-95 |
Type: |
Flexible Thin-Film CIGS Solar Panel |
SKU: |
48292 |
Maximum Power (Pmax): |
95W |
Maximum Power Voltage (Vmp): |
26.2V |
Maximum Power Current (Imp): |
3.60A |
Open Circuit Voltage (Voc): |
34.8V |
Short Circuit Current (Isc): |
4.20A |
Max Series Fuse: |
7A |
Cell Technology: |
CIGS (Copper Indium Gallium Selenide) |
Panel Length: |
86.5 in / 2.197 m |
Panel Width: |
15.7 in / 0.398 m |
Panel Thickness: |
0.1 in / 2.0 mm |
Roof Load From Module: |
0.49 lbs/ft² / 2.4 kg/m² |
Connector Type: |
MC4 |
Form Factor: |
Flexible / Lightweight |
Application: |
Rooftop, Low-Profile, Off-Grid |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Panel only — no mounting hardware included. |
Condition Notes: |
This SoloPower SP1-95 95W flexible CIGS solar panel is new old stock — stored in its original box, never installed or used. Cell surface, junction box, and MC4 connectors are clean and undamaged. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
