Description
Solopower SF1-40 30W Flexible CIGS Solar Panel 12V BIPV MC4 16Vmp 62"

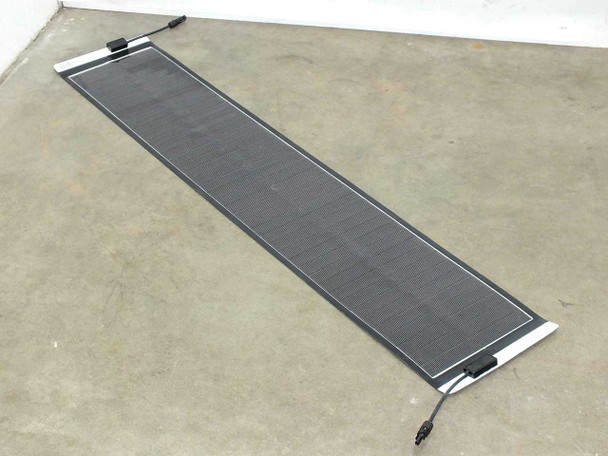

The Solopower SF1-40 is a flexible, lightweight thin-film solar panel using CIGS (Copper Indium Gallium Selenide) photovoltaic technology. At 30 watts and just 3.8 lbs, it is significantly lighter than conventional glass-based solar panels and can be rolled or curved for installation on non-flat surfaces. MC4 connectors are located at opposite ends of the panel for straightforward wiring into 12-volt charging systems or BIPV (building-integrated photovoltaic) applications. This panel was manufactured by Solopower in San Jose, California.
Specifications & What's Included
- Model: Solopower SF1-40
- Technology: CIGS (Copper Indium Gallium Selenide) thin-film, flexible
- Maximum Power (Pmax): 30 Watts
- Maximum Power Voltage (Vmp): 16V
- Maximum Power Current (Imp): 1.8A
- Open Circuit Voltage (Voc): 22V
- Short Circuit Current (Isc): 2.2A
- System Voltage: 12V
- Number of Cells: 42 CIGS cells
- Cell size: 10.25 x 1.5 inches each
- Overall dimensions: 62 inches (5.2 ft) x 11.5 inches
- Connectors: MC4 (one at each end of the panel)
- Note: Cell and border color may vary slightly from photos
- Includes: Panel with MC4 leads — no additional accessories
Applications
Flexible CIGS thin-film panels like the SF1-40 are used in applications where conventional rigid glass panels are not practical. Common uses include marine and boat decks, RV and vehicle rooftops, portable off-grid charging setups, and building-integrated photovoltaics (BIPV) where the panel is bonded directly to a curved or irregular surface such as a metal roof or composite shell. CIGS technology offers good performance in diffuse or low-light conditions compared to standard polycrystalline panels, and the lightweight construction makes these panels well suited for weight-sensitive installations. The 12-volt output is a standard match for battery bank charging in marine, off-grid, and recreational vehicle systems.

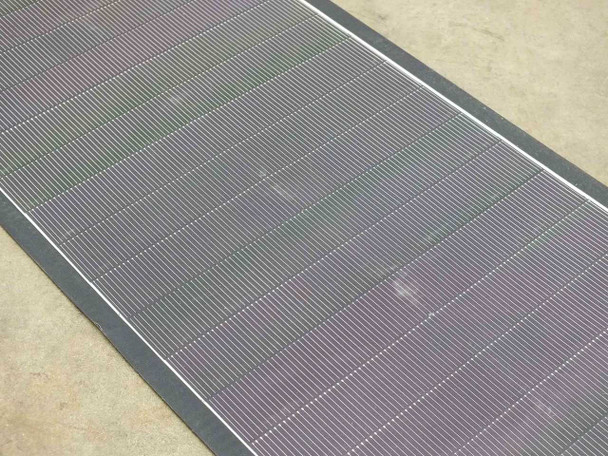

This Solopower SF1-40 flexible CIGS solar panel is new old stock — open box, never sold, but previously used by Solopower at their San Jose facility for testing purposes. It does show some signs of handling and facility use, visible as minor surface marks on the cell face (visible in photos). We have tested this panel and confirmed it produces good voltage output suitable for charging 12-volt batteries. The panel can be rolled up, though not into an extremely tight roll. The color of the solar cells and borders may vary slightly from what is shown in the photos. Please review our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
SoloPower |
Model: |
SF1-40 |
MPN: |
SF1-40 |
SKU: |
48299 |
Type: |
Flexible Thin-Film CIGS Solar Panel |
Technology: |
CIGS (Copper Indium Gallium Selenide) |
Maximum Power (Pmax): |
30 Watts |
Maximum Power Voltage (Vmp): |
16V |
Maximum Power Current (Imp): |
1.8A |
Open Circuit Voltage (Voc): |
22V |
Short Circuit Current (Isc): |
2.2A |
System Voltage: |
12V |
Number of Cells: |
42 |
Cell Dimensions: |
10.25 x 1.5 inches |
Panel Length: |
62 inches (5.2 feet) |
Panel Width: |
11.5 inches |
Connector Type: |
MC4 |
Application: |
BIPV, Battery Charging, Off-Grid, Marine, RV |
Flexibility: |
Flexible / Rollable |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Panel only with MC4 leads. No mounting hardware or additional accessories included. |
Condition Notes: |
New open box — unused/unsold Solopower test panel. Shows minor signs of facility use. Tested and confirmed to produce good voltage for 12V battery charging. Can be rolled but not super tight. Cell/border color may vary from photos. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
