Solberg Manufacturing Inc.

Solberg CSL-849-125HC Vacuum Pump Inlet Filter Corrosion-Resistant 1.25" NPT

(No reviews yet) Write a Review
SKU:
52556
MPN:
CSL-849-125HC
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
9.00 LBS
Shipping:
Calculated at Checkout

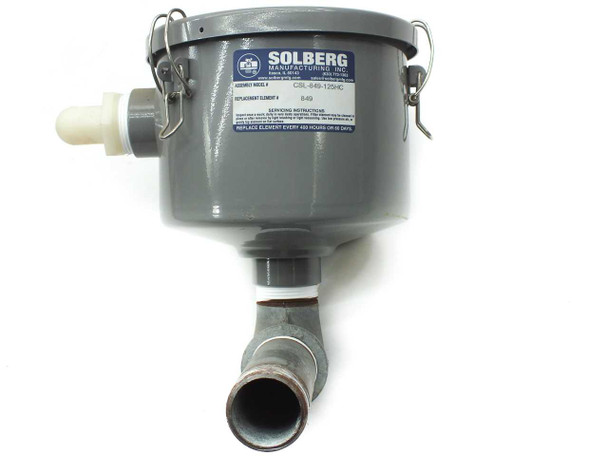

  • Solberg CSL-849-125HC vacuum pump inlet filter housing – front view showing Solberg label, bail latches, white drain plug, and 1.25" NPT elbow inlet port
  • Solberg CSL-849-125HC filter housing – rear/side view showing gray corrosion-resistant body, bail latch clamps, bottom drain port, and NPT elbow fitting
  • Solberg CSL-849-125HC filter housing – top open view showing installed cylindrical filter element seated inside the housing bowl

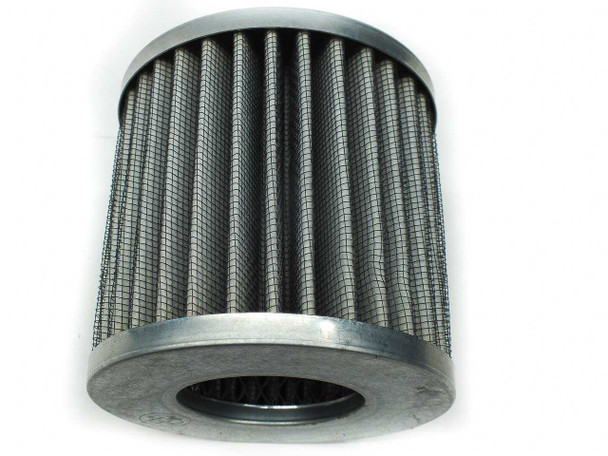

  • Solberg replacement element #849 – removed filter element showing pleated stainless mesh outer wrap and open center core

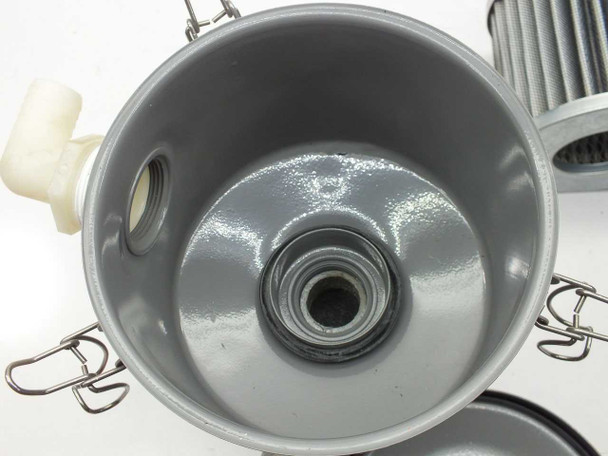

  • Solberg CSL-849-125HC filter housing – interior bowl view with element removed, showing inlet port seat, drain fitting, and gray coated interior

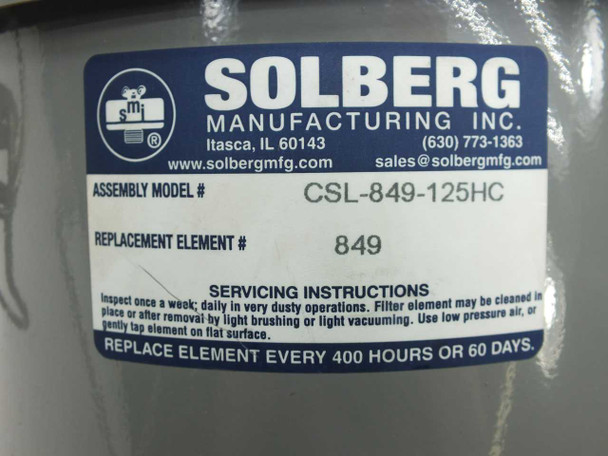

  • Solberg CSL-849-125HC label closeup – showing assembly model number CSL-849-125HC, replacement element #849, and servicing instructions
$100.00
Was: $200.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Solberg CSL-849-125HC Vacuum Pump Inlet Filter Corrosion-Resistant 1.25" NPT

The Solberg CSL-849-125HC is a corrosion-resistant vacuum pump inlet filter housing designed for medium vacuum service applications. It mounts on the inlet port of a vacuum pump or blower to protect the machine from particulate contamination, extending equipment life. The housing features a durable coated steel body with stainless steel bail-latch clamps for tool-free element access, a 1.25" NPT elbow inlet fitting, and a bottom drain/cleanout port.

Specifications & What's Included

  • Assembly Model: CSL-849-125HC
  • Replacement Element Number: 849
  • Inlet Port: 1.25" NPT elbow fitting
  • Finish: Corrosion-resistant coated steel housing
  • Vacuum Service Rating: Medium vacuum service
  • Continuous Temperature Range: 15°F (-26°C) min to 220°F (104°C) max
  • Filter Change Differential: 15–20" H2O (3,750 mbar) over initial ΔP
  • Polyester element: 99%+ removal efficiency, standard to 5 micron
  • Paper element: 99%+ removal efficiency, standard to 2 micron
  • Closure: Stainless steel bail/swing-latch clamps (tool-free element removal)
  • Bottom drain/cleanout port with white plug
  • Includes: Filter housing with installed filter element #849 and inlet elbow fitting
  • Manufacturer: Solberg Manufacturing Inc., Itasca, IL (USA)
  • Servicing interval: Replace element every 400 hours or 60 days (per label)

Applications

Solberg inlet filter housings are standard protective accessories used across a wide range of vacuum and pneumatic equipment. The CSL-849-125HC is suited for use with vacuum pumps, side-channel blowers, piston compressors, and screw compressors in applications including vacuum packaging machinery, vacuum lifters, factory automation systems, leak detection equipment, woodworking dust collection, soil venting and remediation systems, ash handling, and cement handling. The corrosion-resistant finish makes it appropriate for environments where chemical exposure or moisture is a concern. Solberg filters are commonly found in industrial and manufacturing facilities where protecting pump inlet ports from particulate contamination is critical to equipment longevity and uptime.

Condition: Used
This Solberg CSL-849-125HC vacuum pump inlet filter housing has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in service. The gray corrosion-resistant housing is intact with no cracking or major damage; the bail latch clamps are present and functional. The filter element (replacement element #849) is installed and visible in the photos — buyers should assess whether replacement is needed for their application. The inlet elbow fitting shows some wear consistent with industrial use. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Solberg Manufacturing Inc.
Model:
CSL-849-125HC
MPN:
CSL-849-125HC
Replacement Element Number:
849
Type:
Vacuum Pump Inlet Filter / Filter Housing
SKU:
52556
Finish:
Corrosion-Resistant Coating
Vacuum Service Rating:
Medium Vacuum Service
Temperature Range (Continuous):
15°F (-26°C) to 220°F (104°C)
Filter Change Differential:
15–20" H2O (3,750 mbar) over initial ΔP
Polyester Filtration Efficiency:
99%+ to 5 micron
Paper Filtration Efficiency:
99%+ to 2 micron
Inlet Port Size:
1.25" NPT
Closure Type:
Stainless steel bail / swing-latch clamps
Housing Material:
Coated steel with corrosion-resistant finish
Country/Region of Manufacture:
United States
Compatible Applications:
Vacuum Packaging, Vacuum Lifters, Side Channel Blowers
Compatible Applications 2:
Soil Venting/Remediation, Factory Automation, Leak Detection
Compatible Applications 3:
Woodworking, Ash Handling, Cement, Piston/Screw Compressors
Seller Notes:
Includes filter housing with installed filter element and 1.25" NPT elbow inlet fitting.
Condition Notes:
This Solberg CSL-849-125HC vacuum pump inlet filter has been inspected and is in good used condition. Pulled from a working environment; housing and latches are intact. Filter element #849 is installed — assess for replacement.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose
