Unbranded

Aluminum In-Line Vacuum Filter Housing 30mm OD / 75mm ID Ports 110x45mm Cavity

(No reviews yet) Write a Review
SKU:
49143
MPN:
Aluminum
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
  • Aluminum in-line vacuum filter housing — front view showing cylindrical body with peeling label residue and orange corrosion patches on lower body, large KF flange base, and narrow 30mm upper port

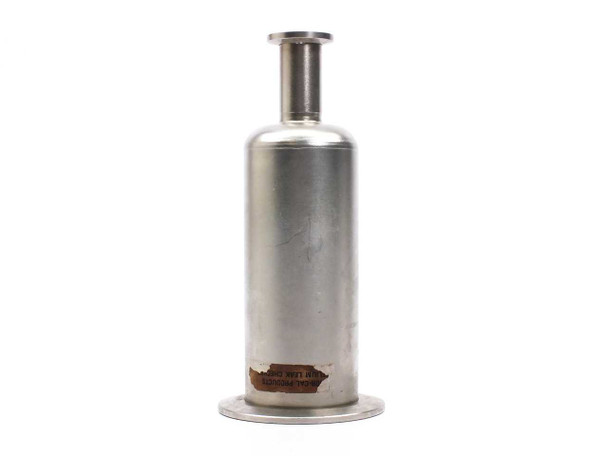

  • Aluminum in-line vacuum filter housing — opposite side view showing a partially legible worn paper label on lower body, large KF flange base, and 30mm upper outlet port

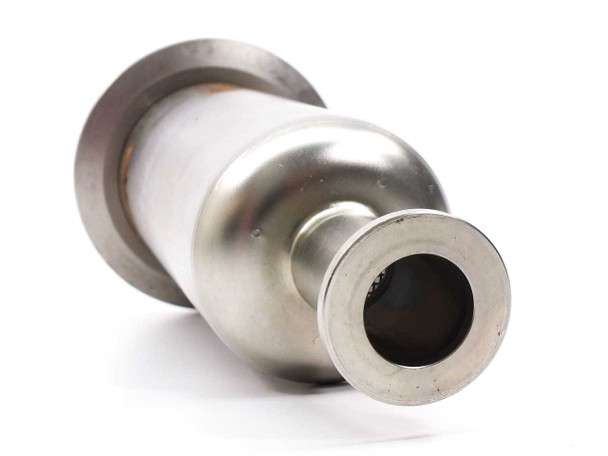

  • Aluminum in-line vacuum filter housing — angled top-down view into the 30mm upper port opening showing the hollow bore, with KF flange base and cylindrical body visible
  • Aluminum in-line vacuum filter housing — angled view into the 75mm lower KF flange bore showing the open filter cavity interior, with orange label residue and corrosion patches visible on the body
$35.00
Was: $70.00
Current Stock: 1

Sold Out

Description

Aluminum In-Line Vacuum Filter Housing 30mm OD / 75mm ID Ports 110x45mm Cavity

In-line vacuum filter housing designed to trap particulates and protect vacuum pump systems. Aluminum construction with KF/NW flange connection on lower port and compression-fit upper port.

Specifications & What's Included

  • Material: Aluminum
  • Upper Port: 30 mm OD (compression-fit)
  • Lower Port: 75 mm ID (KF/NW flange)
  • Filter Cavity: 110 mm × 45 mm
  • Filter media not included

Applications

Used in foreline filtration and pump protection systems. Typically installed between vacuum chambers and rotary vane or turbomolecular pumps to collect condensables and particulates. Compatible with standard vacuum pump systems using KF/NW flanged connections. Fits in foreline trap assemblies for laboratory and industrial vacuum environments.

Condition: Used
This Aluminum In-Line Vacuum Filter Housing has been inspected and is in good used condition overall. It was pulled from a working vacuum system where it was in active service. The aluminum body is structurally sound with no cracks or deformation. There is visible corrosion and peeling label residue on the lower portion of the cylindrical body — consistent with long-term vacuum system use — but this does not affect the housing's function. Both port openings are clean and intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Unbranded
Model:
In-Line Vacuum Filter Housing
Type:
In-Line Vacuum Filter Housing
Material:
Aluminum
Upper Port OD:
30 mm
Lower Port ID:
75 mm
Filter Cavity Dimensions:
110 mm x 45 mm
Connection Type:
KF / NW Flange (large base), compression-fit upper port
Application / Use Case:
Vacuum line filtration, foreline trap, pump protection
Compatible With:
Vacuum pumps, vacuum chambers, foreline systems
Condition:
Used – Pulled from Working Environment
SKU:
49143
Seller Notes:
Unit only — no filter media included. Pulled from working service.
Condition Notes:
Aluminum In-Line Vacuum Filter Housing pulled from a working vacuum system. Good used condition — body is sound, ports intact. Visible corrosion patches and label residue on lower body exterior. No cracks or deformation.
