Description
Sola Electric 86-24-262 Component Type Custom Rectifier 115/230VAC 24V 6.2A

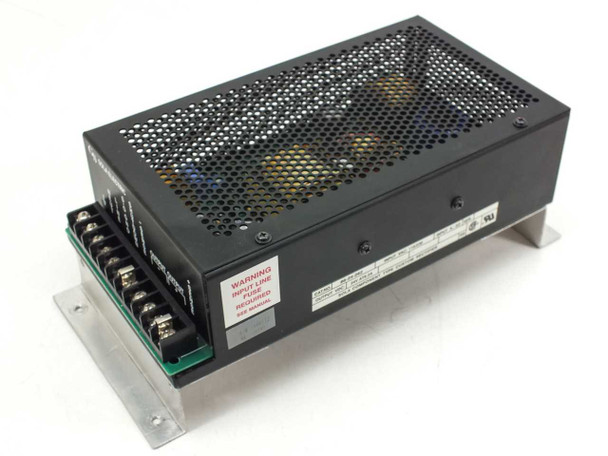

The Sola Electric 86-24-262 is a chassis-mount DC rectifier/power supply rated for 24VDC output at up to 6.2 amps. It accepts a wide AC input of 115 or 230VAC and provides a regulated 24V DC output via a screw terminal block, with dedicated terminals for Neutral, Line, Signal Ground, Shutdown, Output+, Output−, and remote sense (+Sense/−Sense). The unit carries both UL and CSA certifications and is built in a rugged open-frame chassis with a perforated steel cover for airflow.
Specifications & What's Included
- Manufacturer: Sola Electric (GS Sola)
- Model / Cat. No.: 86-24-262

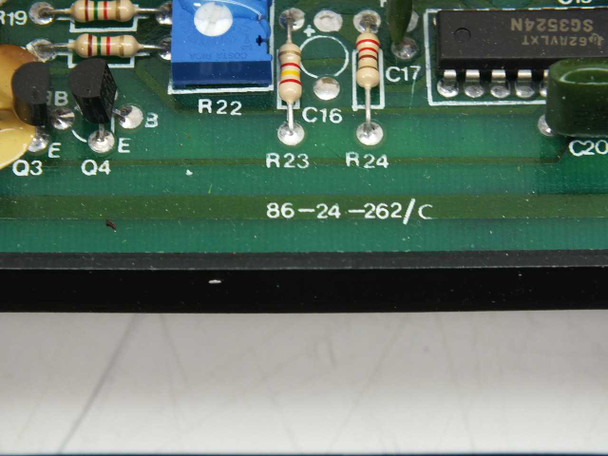

- PCB Revision: 86-24-262/C
- Input Voltage: 115/230 VAC (selectable)
- Input Current: 3A (at 115V) / 2A (at 230V)
- Output Voltage: 24 VDC
- Output Current: 6.2 A
- Output Power: ~148 W

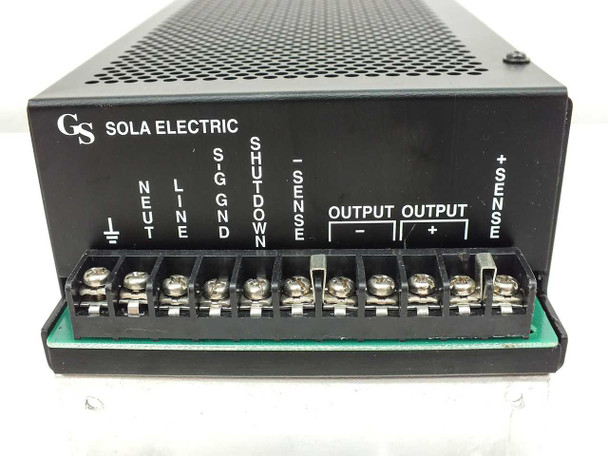

- Terminal Block: Screw terminals — Neut, Line, SGND, Shutdown, −Sense, Output−, Output+, +Sense
- Form Factor: Open frame / chassis mount with integral mounting feet
- Cover: Perforated steel top cover for ventilation
- Certifications: UL Listed, CSA (GS mark)
- Internal PCB includes large electrolytic filter capacitors, switching transformer, output inductor, and power transistors
- Included: Unit only — no cables or mounting hardware
Applications
The Sola Electric 86-series Component Type Custom Rectifiers are chassis-mount DC power supplies designed to be integrated directly into equipment panels, enclosures, or custom-built industrial systems. They supply regulated 24VDC for control circuits, solenoid valves, relay logic, PLCs, sensors, and other 24V industrial loads — a standard control voltage in factory automation and process control environments. Sola Electric (later acquired by and sold under the GS brand) built a strong reputation for stable, regulated DC power supplies widely used in North American industrial and OEM equipment from the 1970s through the 1990s. The remote sense terminals allow compensation for voltage drop in long output wiring runs, a feature common on power supplies designed for panel integration. The shutdown terminal enables external supervisory control over the supply, useful in safety-critical or sequenced-start systems.
This Sola Electric 86-24-262 Component Type Custom Rectifier has been inspected and appears to be in good used condition. The chassis and perforated steel cover show normal wear consistent with prior installation use. The screw terminal block and internal PCB appear intact with no obvious damage. It has not been powered up or tested at our facility, but was pulled from a working environment where it was previously in use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Sola Electric |
Model: |
86-24-262 |
MPN: |
86-24-262 |
SKU: |
47626 |
Type: |
Component Type Custom Rectifier / DC Power Supply |
Input Voltage: |
115/230 VAC |
Input Current: |
3/2 A |
Output Voltage: |
24 VDC |
Output Current: |
6.2 A |
Output Power: |
148.8 W |
Connector Type: |
Screw Terminal Block |
Terminal Labels: |
Neut, Line, SGND, Shutdown, -Sense, Output-, Output+, +Sense |
Form Factor: |
Open Frame / Chassis Mount |
Certifications: |
UL Listed, CSA |
PCB Revision: |
86-24-262/C |
Seller Notes: |
Unit only — no cables or mounting hardware included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This Sola Electric 86-24-262 Custom Rectifier is in good used condition. Shows normal wear from prior use. Not powered or tested at our facility, but pulled from a working environment. Please view photos and contact us with questions. |
