SMC MY1H25G-300H-Z73L Rodless Cylinder 25mm Bore 300mm Stroke 0.8 MPa

(No reviews yet) Write a Review
SKU:
46242
MPN:
MY1H25G-300H-Z73L
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • SMC MY1H25G-300H-Z73L rodless cylinder – top and right-side view showing aluminum body and three port holes

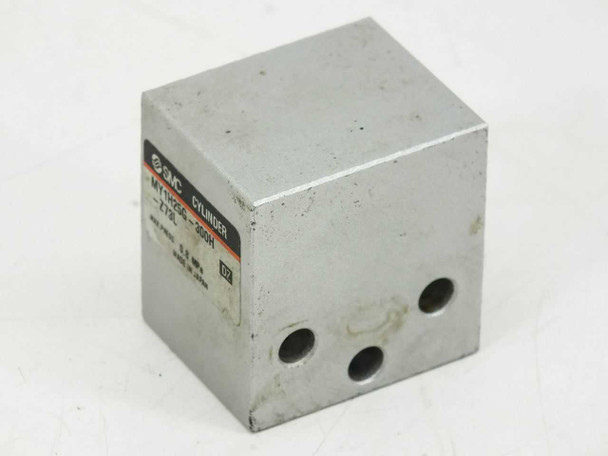

  • SMC MY1H25G-300H-Z73L cylinder – front-left angled view showing SMC label with model number and orange stripe

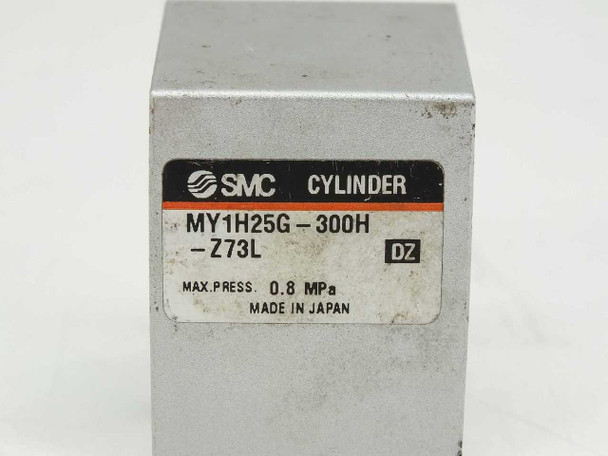

  • SMC MY1H25G-300H-Z73L cylinder label close-up showing model MY1H25G-300H-Z73L, max pressure 0.8 MPa, Made in Japan

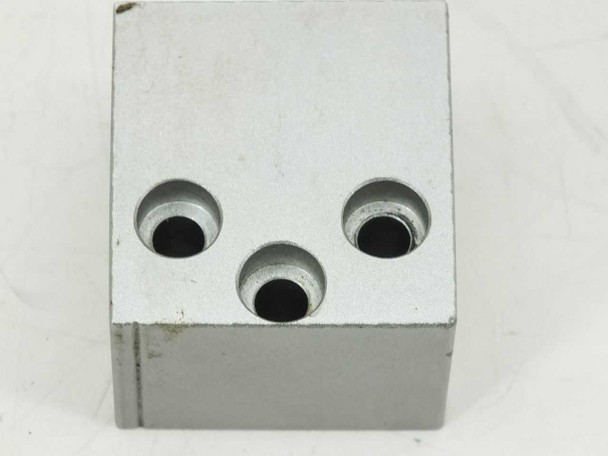

  • SMC MY1H25G-300H-Z73L cylinder – bottom port face showing three pneumatic port openings in aluminum block
$100.00
Current Stock: 2

Sold Out

Description

SMC MY1H25G-300H-Z73L Rodless Cylinder 25mm Bore 300mm Stroke 0.8 MPa

Used SMC rodless pneumatic cylinder from the MY1H series. This linear actuator delivers controlled motion in compact automation and industrial applications.

Specifications & What's Included

  • Bore Size: 25 mm
  • Stroke Length: 300 mm
  • Max Pressure: 0.8 MPa
  • Body Material: Aluminum
  • Port Configuration: 3-port end block
  • Actuator Type: Rodless Pneumatic Cylinder
  • Manufacturer: SMC (Japan)
  • Model: MY1H25G-300H-Z73L

Applications

Commonly used in factory automation, material handling systems, and pneumatic control circuits requiring linear motion in confined spaces.

Condition: Used
This SMC MY1H25G-300H-Z73L rodless pneumatic cylinder has been inspected and shows typical light wear consistent with prior industrial use. The aluminum body appears intact with no visible cracks or damage; port openings are clear. It has not been bench-tested at our facility. Please view our photo set and contact us with any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
SMC
Model:
MY1H25G-300H-Z73L
MPN:
MY1H25G-300H-Z73L
SKU:
46242
Condition:
Used – Inspected
Seller Notes:
Single SMC rodless cylinder unit as shown in photos.
Country of Manufacture:
Japan
Form Factor:
Rodless Cylinder / Linear Actuator
Series:
MY1H
Bore Size:
25 mm
Stroke Length:
300 mm
Max Pressure:
0.8 MPa
Actuator Type:
Rodless Pneumatic Cylinder
Body Material:
Aluminum
Port Configuration:
3-port end block (visible in photos)
Compatible With:
SMC MY1H series pneumatic systems and automation equipment
Condition Notes:
This SMC MY1H25G-300H-Z73L rodless pneumatic cylinder has been inspected and shows typical light wear consistent with prior industrial use. The aluminum body appears intact with no visible cracks or damage; port openings are clear.
View AllClose
