SMC CXSM10-40R-Z73 Guided Dual Rod Pneumatic Cylinder 10mm Bore 40mm Stroke
The SMC CXSM10-40R-Z73 is a compact guided dual rod pneumatic cylinder from SMC Corporation's CXSM series. The twin-rod design provides built-in rotational resistance, eliminating the need for a separate external guide and delivering precise, repeatable linear motion without torque on the piston rod. This unit includes two factory-mounted auto-switches for end-of-stroke sensing.
Specifications & What's Included
- Manufacturer: SMC Corporation
- Model: CXSM10-40R-Z73
- Series: CXSM (Dual Rod Guided Cylinder)
- Bore Diameter: 10 mm
- Stroke Length: 40 mm
- Maximum Operating Pressure: 0.7 MPa
- Number of Rods: 2 (dual rod configuration)
- Actuation Type: Double acting, pneumatic
- Port Connection: Push-in fittings (both ends)

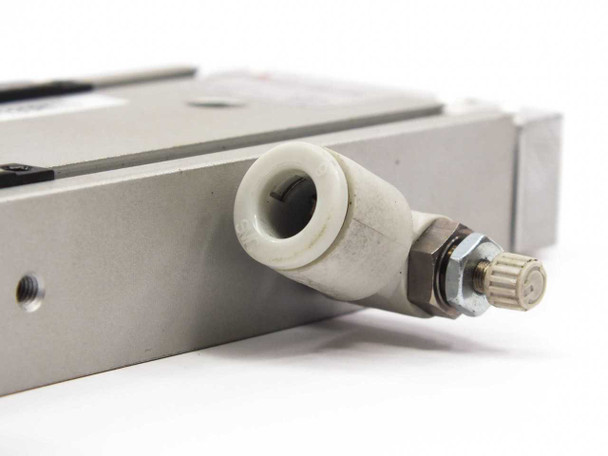

- Speed Control: Needle-type flow control fitting present

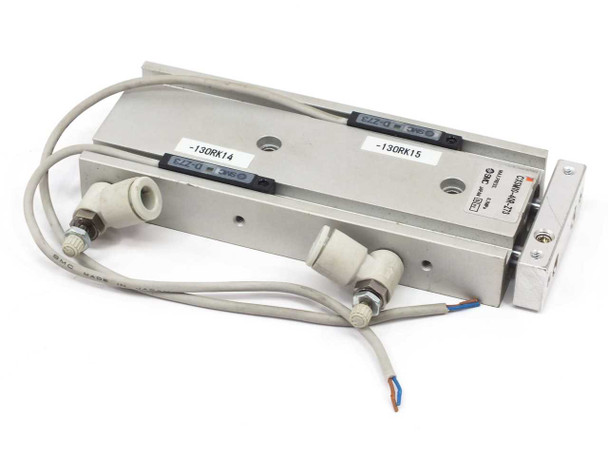

- Auto-Switches: 2 included, mounted with wiring leads (labeled -13DRK14 and -13DRK15)
- Body Material: Aluminum alloy
- Country of Manufacture: Japan
Applications
SMC CXSM series dual rod cylinders are widely used in semiconductor handling, electronics assembly, and general factory automation where precise, guided linear motion is required in a compact footprint. The twin-rod design makes them well suited for pick-and-place systems, part transfer, clamping fixtures, and any application where the load must be prevented from rotating during stroke travel. The 10 mm bore and 40 mm stroke make this a small-bore unit suited to light-duty automation tasks on assembly lines, PCB handling equipment, and precision positioning stages. SMC is Japan's largest pneumatics manufacturer and the CXSM series is a long-running, widely-used platform with broad compatibility across industrial automation systems.

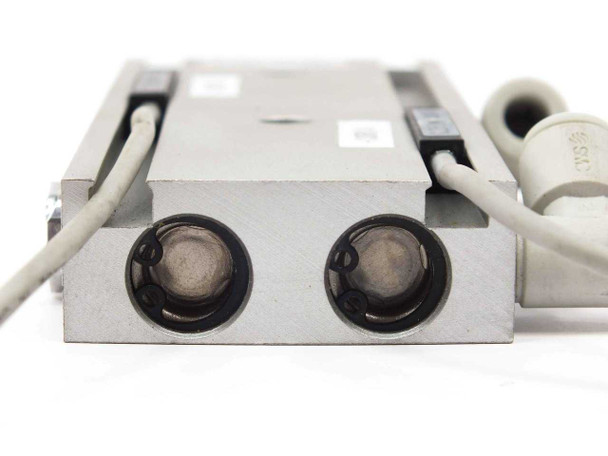

This SMC CXSM10-40R-Z73 guided dual rod pneumatic cylinder has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in service. The aluminum body is clean overall; the guide rods show light surface marks consistent with normal use, and the dual rod bores show typical darkening from prior operation. Both auto-switches and push-in fittings are present and intact. Please view our photo set and contact us if you have any questions.
