Description
Sloan Technology Five/Ten E.B. Power Supply Cat 000146 w/ Evaporator
The Sloan Technology Five/Ten is an electron beam (E.B.) power supply designed for use with vacuum deposition systems. It provides high-voltage power to drive an electron beam gun for thin-film evaporation processes, with dual-source control capability. The unit is manufactured by Sloan Technology Corp. of Santa Barbara, California, a manufacturer historically associated with vacuum coating and thin-film deposition instrumentation. This lot is being sold AS-IS for parts or repair — it has broken parts and is not in working condition.
Specifications & What's Included
- Manufacturer: Sloan Technology Corp., Santa Barbara, CA
- Model: Five/Ten (E.B. Power Supply)
- Catalog Number: 000146
- Type: Electron Beam (E.B.) Power Supply for vacuum thin-film evaporation
- Number of Sources: 2 (Source One, Source Two)

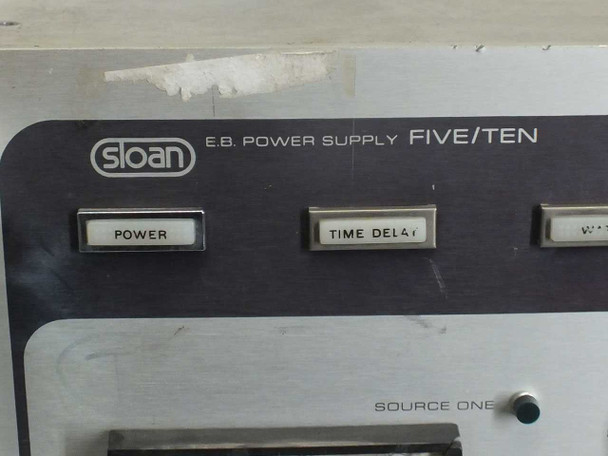

- Front-panel controls: Power, Time Delay, Igniter, L-Meter, Vacuum, High Power pushbuttons
- Per-source controls: Emission, Position, Beam Energy rotary knobs (both sources)
- Front-panel meter: Milliamperes analog meter
- Additional controls: Remote connector, High Voltage Off/On switch
- Electron gun tube present: Eimac Y-512B (X-Radiation Hazard — see warning label)

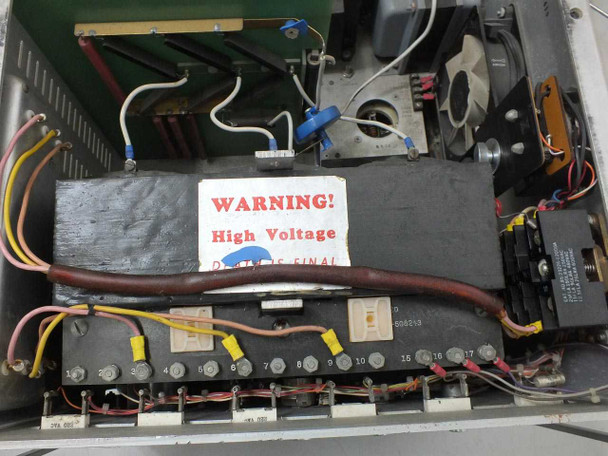

- Internal high-voltage section: open chassis with large transformer, terminal strip (17+ positions), high-voltage warning sticker
- Rear panel: large multi-conductor power cable, multi-pin circular connector, additional wiring harness

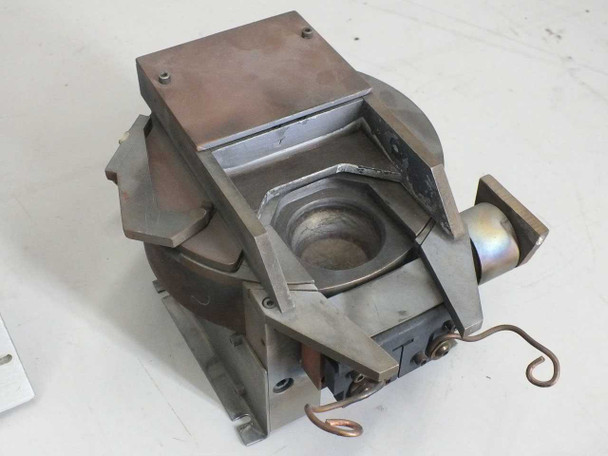

- Included: Multi-pocket evaporator assembly (copper body, circular crucible pocket, spring contacts, coolant fittings)
- Included: Evaporator feedthrough shaft assembly (threaded stainless shaft, mounting flange, coolant fittings)
- Included: Interconnect cabling (some wiring shows damage — see condition notes)
- Form factor: Benchtop/rackmount chassis with aluminum frame
Applications
Electron beam power supplies of this type are used in physical vapor deposition (PVD) systems, specifically for e-beam evaporation of metals and dielectrics onto substrates in a vacuum chamber. The Five/Ten designation refers to the dual-source capability — allowing sequential or independent evaporation from two material pockets within the multi-pocket evaporator. This class of equipment was commonly deployed in research and production thin-film coating systems for optics, semiconductors, and hard-coating applications. Sloan Technology was a well-known supplier of evaporation sources and controls to university labs and industrial vacuum coating lines from the 1960s through the 1980s. This unit would be of interest to researchers, vacuum system integrators, or technicians seeking spare parts, the evaporator assembly, the Eimac Y-512B tube, or the feedthrough hardware for compatible systems.

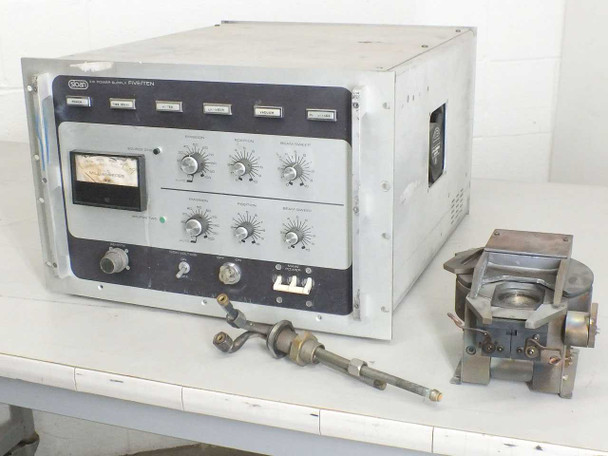

This Sloan Technology Five/Ten E.B. (Electron Beam) Power Supply, Catalog 000146, is being sold AS-IS for parts or repair. The unit has broken parts and is not in working condition. Interior inspection reveals the high-voltage section is open and accessible; visible damage includes burned and frayed wiring at the evaporator feedthrough cable ends. The Eimac Y-512B electron gun tube is present inside the chassis. The multi-pocket evaporator assembly and feedthrough shaft are included with the lot. The front panel, chassis, and internal transformer appear physically intact but the unit has not been tested and no functionality is guaranteed. This item is offered strictly for parts, salvage, or repair — it is not represented as functional. Please view our photo set carefully and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Sloan Technology |
Model: |
Five/Ten (FIVE/TEN) |
MPN: |
000146 |
Catalog Number: |
000146 |
Type: |
Electron Beam (E.B.) Power Supply |
SKU: |
52530 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes multi-pocket evaporator assembly and feedthrough hardware. Eimac Y-512B tube present. Sold AS-IS. |
Country/Region of Manufacture: |
United States |
Manufacturer Location: |
Santa Barbara, CA |
Application: |
Electron Beam Evaporation / Thin Film Vacuum Deposition |
Included Components: |
Multi-pocket evaporator, feedthrough assembly, interconnect cabling |
Electron Gun Tube: |
Eimac Y-512B |
Front Panel Controls: |
Power, Time Delay, Igniter, L-meter, Vacuum, Source 1 & 2 Emission/Position/Beam Energy knobs |
High Voltage Warning: |
Yes — internal high voltage components present |
Number of Sources: |
2 (Source One, Source Two) |
Meter: |
Milliamperes analog meter on front panel |
Form Factor: |
Benchtop / Rackmount chassis |
Condition Notes: |
Sloan Five/Ten E.B. Power Supply Cat 000146 sold AS-IS for parts or repair. Has broken parts; burned/frayed wiring visible at feedthrough. Not tested, not functional. Includes evaporator assembly and Eimac Y-512B tube. |
