Simco HA-4A Static Eliminator Power Unit 100V 4KV 2mA Fiber Optic For Parts

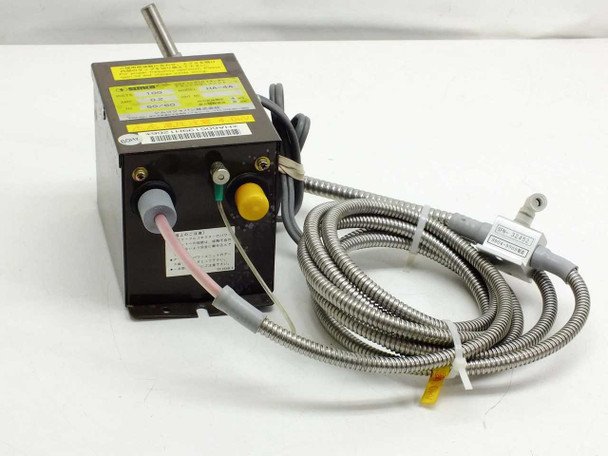

The Simco HA-4A is a compact, benchtop high-voltage static eliminator power unit manufactured by Simco Japan (シムコジャパン株式会社). It is designed to drive a fiber-optic static elimination cable, delivering a rated 4 KV high-voltage output at up to 2 mA short-circuit current to neutralize static charge on sensitive materials, surfaces, or components in industrial and cleanroom environments. The unit accepts 100V AC input at 50/60 Hz and draws 0.2 A.
Specifications & What's Included

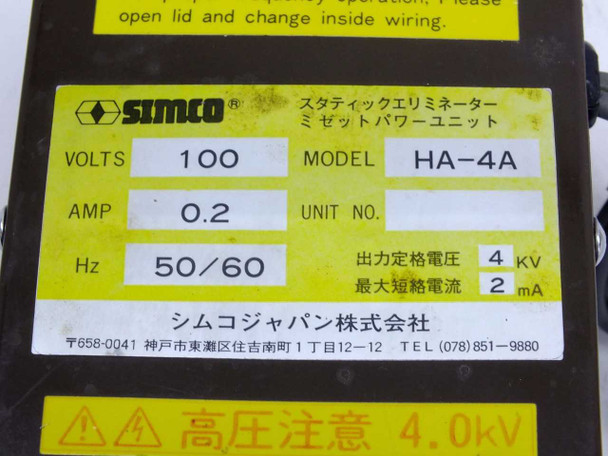

- Brand: Simco (シムコジャパン株式会社)
- Model: HA-4A
- Input Voltage: 100V AC
- Input Current: 0.2 A
- Frequency: 50/60 Hz
- Rated Output Voltage: 4 KV
- Maximum Short-Circuit Output Current: 2 mA
- Fuse: 0.2 A (accessible via front fuse holder)
- Output delivery: high-voltage via armored fiber-optic cable
- ON/OFF switch with illuminated red indicator
- Yellow grounding/connector stud on top panel
- High-voltage caution label: 4.0 kV warning
- Form factor: compact benchtop box unit
- Country of manufacture: Japan
- Includes: attached armored fiber-optic delivery cable with output probe/tip
Applications
Static eliminator power units like the Simco HA-4A are used in industrial and precision manufacturing environments to neutralize electrostatic charge on materials, films, webs, substrates, and components. They are common in semiconductor fabrication, electronics assembly, printing, packaging, converting, and cleanroom operations where static discharge can damage components or attract contaminants. The fiber-optic output cable allows the high-voltage ionization point to be positioned precisely — often in tight spaces or where conventional bar-type ionizers cannot reach. Simco is a long-established Japanese manufacturer of static control equipment widely used in Asia and globally in electronics and precision manufacturing. This HA-4A represents a compact, single-output unit suited to small-scale or point-of-use static elimination tasks.
This Simco HA-4A Static Eliminator Power Unit powers on and the ON/OFF switch indicator illuminates, but no output has been detected from the fiber-optic cable. We were not able to fully test or verify the high-voltage output circuit. This unit is being sold as-is for parts or repair and is not guaranteed functional. The housing shows light wear consistent with prior use. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Simco |
Model: |
HA-4A |
MPN: |
HA-4A |
Type: |
Static Eliminator Power Unit |
SKU: |
46754 |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Includes attached armored fiber-optic cable and output probe |
Country/Region of Manufacture: |
Japan |
Input Voltage: |
100V AC |
Input Current: |
0.2 A |
Frequency: |
50/60 Hz |
Output Voltage (Rated): |
4 KV |
Output Current (Max Short Circuit): |
2 mA |
Fuse Rating: |
0.2 A |
Output Type: |
High Voltage via Fiber Optic Cable |
Form Factor: |
Benchtop / Compact Box |
Manufacturer: |
Simco Japan (シムコジャパン株式会社) |
Application: |
Static elimination / ionization |
Power Requirements: |
100V AC, 50/60Hz, 0.2A |
High Voltage Warning: |
4.0 kV — high voltage caution label present |
Condition Notes: |
Simco HA-4A Static Eliminator powers on, switch illuminates, but no output detected from fiber-optic cable. Unable to verify HV output. Sold as-is for parts or repair — not guaranteed functional. Please contact us with questions. |
