Matsushita EUK-66HN1A High Voltage Unit Transformer 100V In +6kV 2mA Out

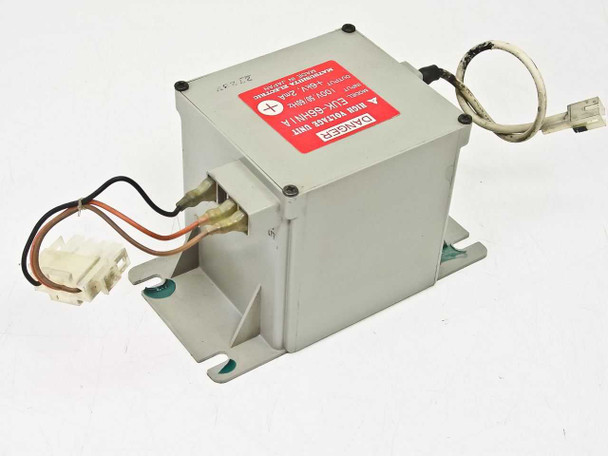

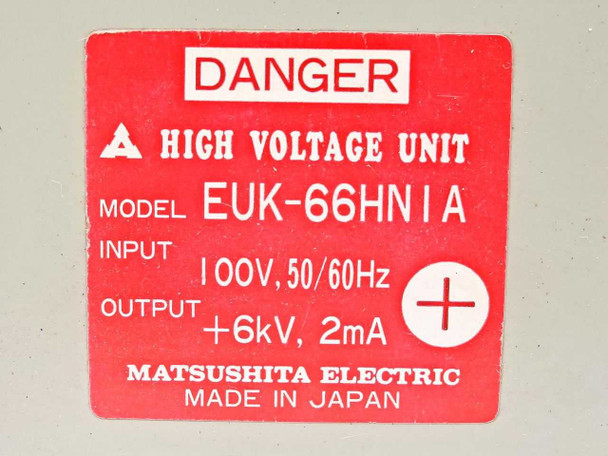

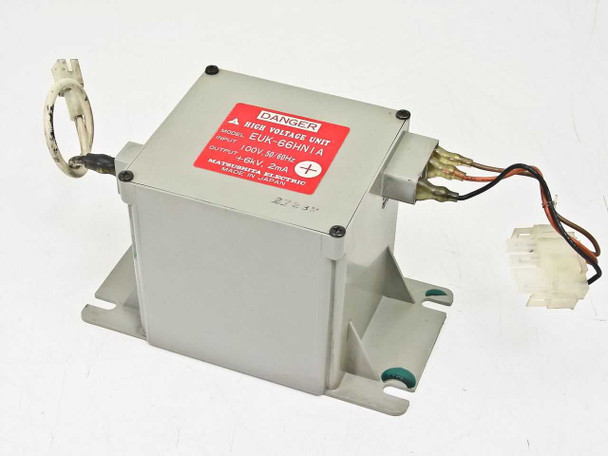

The Matsushita Electric EUK-66HN1A is a compact, enclosed high-voltage power unit designed to step up a 100V AC input to a regulated positive DC output of +6,000 volts at 2mA. Built in Japan and housed in a rugged gray steel enclosure with integral mounting feet, this self-contained HV unit is rated for 50/60Hz single-phase operation. The enclosure carries a prominent DANGER label with full specifications printed on the top panel.
Specifications & What's Included
- Model: EUK-66HN1A
- Manufacturer: Matsushita Electric (Made in Japan)
- Input Voltage: 100V AC
- Input Frequency: 50/60 Hz
- Output Voltage: +6 kV (6,000V DC)
- Output Current: 2 mA
- Output Polarity: Positive (+)
- Phase: Single Phase
- Terminations: Hardwired leads; bottom panel has screw terminals labeled GND and INPUT, plus white multi-pin input connector (J86); HV output via looped white lead with connector labeled H.V.
- Form Factor: Enclosed panel-mount / open-frame with four mounting feet
- Enclosure: Gray steel, compact box style
- Unit only — no additional accessories included
Applications
The EUK-66HN1A is a step-up high-voltage supply of the type commonly used to drive neon and gas-discharge sign tubes, where sustained high-voltage at low current is needed to ionize the gas and maintain a stable glow discharge. These compact HV units were also standard components in photocopiers and laser printers of the 1980s and 1990s, where a high-voltage corona discharge wire is used to electrostatically charge the photosensitive drum — Matsushita Electric (the parent company of the Panasonic brand) produced many such units for OEM integration into printing and imaging equipment of that era. Additional applications include high-voltage laboratory experiments, electrostatic precipitation, ion generation, and any low-current high-voltage circuit requiring a reliable +6kV supply from a 100V source. The low output current (2mA) makes this unit appropriate for controlled laboratory and instrumentation contexts. Because the input is rated for 100V only, a step-down transformer or variac is required when operating from a standard 120V North American supply.
