SIIG JJ-A22012 Serial Parallel ISA I/O Adapter Card 2S1P RS-232 DB25

(No reviews yet) Write a Review
SKU:
34271
MPN:
JJ-A22012
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

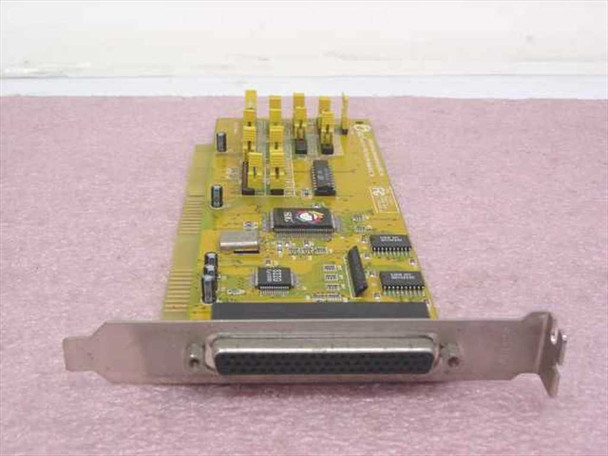

  • SIIG JJ-A22012 ISA Serial Parallel adapter card – angled front view showing PCB, yellow jumpers, and DB25 bracket
  • SIIG JJ-A22012 ISA I/O card – top-side view showing SIIG controller chip, FCC label, and DB25 parallel port bracket
  • SIIG JJ-A22012 PCB label close-up showing serial number J6E090000252 and model number JJ-A22012

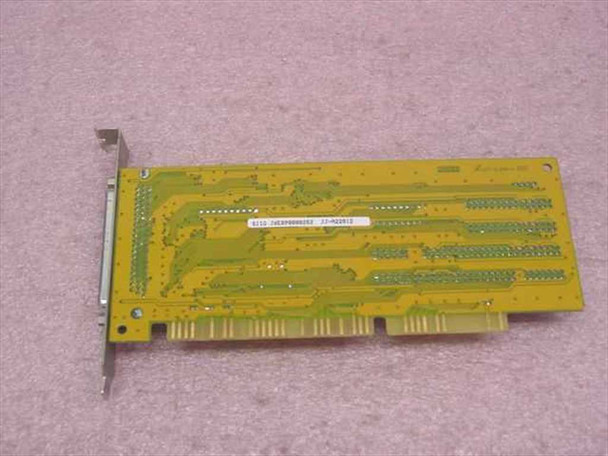

  • SIIG JJ-A22012 ISA card – bottom/solder-side view showing ISA edge connector and PCB label
$35.00
Was: $70.00
Current Stock: 1

Sold Out

Description

SIIG JJ-A22012 Serial Parallel ISA I/O Adapter Card 2S1P RS-232 DB25

The SIIG JJ-A22012 is an ISA-bus multi-I/O expansion card that adds two RS-232 serial ports and one parallel port to a desktop PC. It plugs into a standard 16-bit ISA slot and provides legacy I/O connectivity through a DB25 parallel bracket. The card is manufactured by SIIG, a well-known maker of legacy I/O expansion products.

Specifications & What's Included

  • Model: SIIG JJ-A22012
  • Secondary Part Number: J6E090000252
  • Type: Serial/Parallel ISA I/O Adapter Card
  • Bus Interface: ISA (16-bit)
  • Port Configuration: 2× Serial (RS-232) + 1× Parallel
  • Serial Standard: RS-232
  • Parallel Standard: IEEE 1284 compatible
  • External Connector: DB25 parallel port on bracket
  • Form Factor: Full-length ISA card
  • Jumpers: Multiple yellow configuration jumpers visible on PCB (I/O address and IRQ selection)
  • FCC certification label present on PCB
  • Card only — no cables or accessories included

Applications

ISA multi-I/O cards like the SIIG JJ-A22012 were standard expansion hardware for 486 and Pentium-class desktop PCs during the late 1980s through the mid-1990s, when ISA was the dominant expansion bus. They allowed users to add or restore serial and parallel port connectivity that was absent, insufficient, or damaged on the motherboard. Serial ports were used to connect external modems, mice, serial terminals, label printers, and data acquisition instruments. The parallel port typically connected to dot-matrix and early laser printers or scanners. Today these cards remain useful for maintaining legacy industrial PCs, CNC controllers, point-of-sale systems, and other embedded or specialty computing environments that still depend on ISA hardware and RS-232 or parallel I/O. SIIG produced a wide range of ISA and PCI I/O cards and was a common supplier for both end users and system integrators during this era.

Condition: Used
This SIIG JJ-A22012 Serial/Parallel ISA I/O Adapter Card has been inspected and is in good condition. The PCB is clean with no visible damage, broken traces, or burnt components. The DB25 parallel port bracket is intact. The card shows light shelf wear consistent with age, but no cracks or significant cosmetic issues. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
SIIG
Model:
JJ-A22012
MPN:
JJ-A22012
Secondary Model:
J6E090000252
SKU:
34271
Type:
Serial/Parallel ISA I/O Adapter Card
Interface:
ISA (16-bit)
Port Configuration:
2 Serial (RS-232) + 1 Parallel
Serial Interface:
RS-232
Parallel Interface:
IEEE 1284
Connector Type:
DB25 (parallel bracket)
Form Factor:
ISA Card / Full Length
Compatible With:
ISA-bus desktop computers, legacy PCs
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Card only; no cables or accessories included.
Country/Region of Manufacture:
Taiwan
Condition Notes:
SIIG JJ-A22012 ISA Serial/Parallel adapter card. Inspected and in good condition. PCB is clean, DB25 bracket intact. Light shelf wear. No damage noted.
View AllClose

Related Products

Related Products

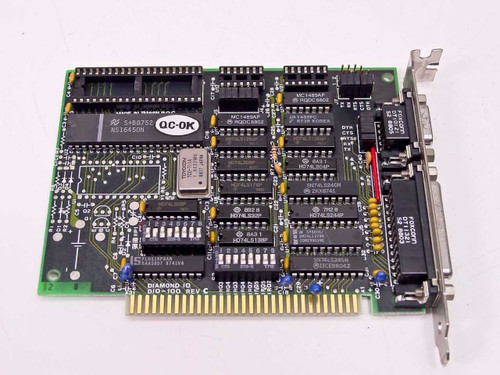

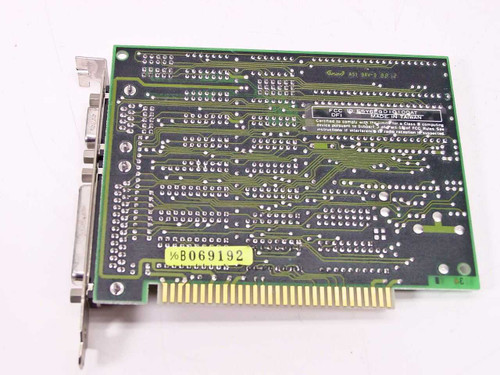

Diamond IO DIO-100 Rev C 8-bit ISA serial parallel I/O card — component side showing ICs including NS16450N UART and MC1489AF chips, with DB25 and DB9 bracket connectors at right Diamond IO DIO-100 Rev C ISA card — solder side with yellow asset tag B069192 visible, DB25 and DB9 connectors visible at left edge
