Sigma Designs 53-000537 RealMagic EM7210 NetStream II PCI MPEG-2 Decoder Card

(No reviews yet) Write a Review
SKU:
12653
MPN:
53-000537
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
0.95 LBS
Shipping:
Calculated at Checkout

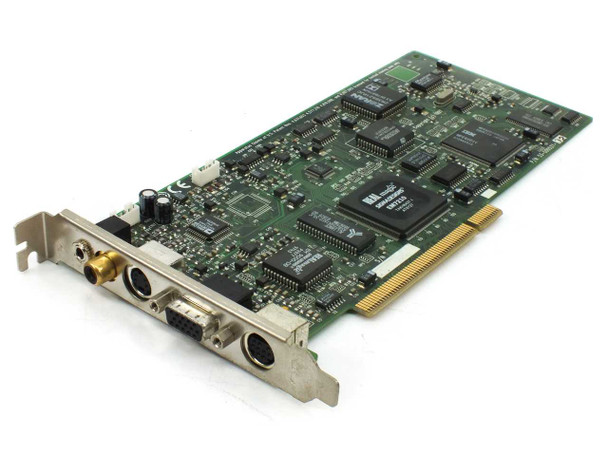

  • Sigma Designs 53-000537 RealMagic EM7210 NetStream II PCI card — angled top view showing PCB components and bracket ports

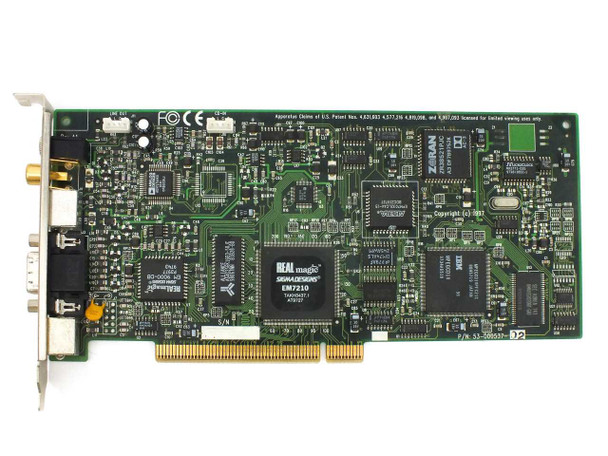

  • Sigma Designs RealMagic EM7210 NetStream II PCI MPEG-2 decoder card — top-down view showing EM7210 chip and part number label
  • Sigma Designs 53-000537 NetStream II PCI card — angled bracket view showing RCA composite, S-Video, VGA, and 9-pin DIN ports
  • Sigma Designs 53-000537 RealMagic EM7210 PCI card — reverse PCB view showing VMR7C-1111-0298 board label and Made in Taiwan marking
$40.00
Was: $80.00
Current Stock: 56

Sold Out

Description

Sigma Designs 53-000537 RealMagic EM7210 NetStream II PCI MPEG-2 Decoder Card

Full-height PCI hardware decoder card for MPEG-2 video streams. The EM7210 chipset offloads MPEG-2 decoding from the CPU, reducing processor load during video playback and capture.

Specifications & What's Included

  • Brand: Sigma Designs | Model: NetStream II | MPN: 53-000537
  • Chipset: RealMagic EM7210
  • Interface: PCI (full-height card)
  • Video Output: 15-pin VGA (DB-15), 9-pin DIN, S-Video (Mini-DIN), Composite (RCA)
  • Decoder Type: Hardware MPEG-2
  • Manufactured: Taiwan
  • Card only; adapter cables may be available upon inquiry

Applications

This card was commonly used in MPEG-2 video capture and playback systems, particularly in digital video editing, broadcast equipment, and video server setups from the late 1990s and early 2000s. It supports legacy Windows systems and Linux platforms that recognize PCI decoder cards. Typical applications include video-on-demand servers, broadcast monitoring, and real-time video decoding in workstations.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This Sigma Designs 53-000537 RealMagic EM7210 NetStream II PCI MPEG-2 decoder card has been tested at our facility and is in good working condition. The card presents both the 15-pin VGA output port and the 9-pin DIN port on the bracket, both of which are present and intact. The PCB is clean with no visible damage, and the gold PCI edge connector shows normal age-appropriate wear consistent with a previously installed card. We may also have compatible 9-pin DIN to 15-pin VGA adapter cables available — please ask if you need one. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Sigma Designs
Model:
NetStream II
MPN:
53-000537
Secondary Model:
EM7210
SKU:
12653
Type:
PCI MPEG-2 Hardware Decoder Video Card
Chipset/GPU:
Sigma Designs RealMagic EM7210
Interface:
PCI
Video Output:
15-Pin VGA (DB-15)
Additional Ports:
9-Pin DIN, S-Video (Mini-DIN), Composite (RCA)
Decoder Type:
Hardware MPEG-2 Decoder
Form Factor:
Full-Height PCI Card
Country/Region of Manufacture:
Taiwan
Condition:
Used – Inspected and Tested
Seller Notes:
Card only; 9-pin DIN to VGA adapter cables may be available — inquire.
Condition Notes:
Sigma Designs 53-000537 RealMagic EM7210 NetStream II PCI card. Tested and in good working condition. 15-pin VGA and 9-pin DIN ports both present. Normal wear on PCI edge connector. Contact us with questions.
View AllClose

Related Products

Related Products

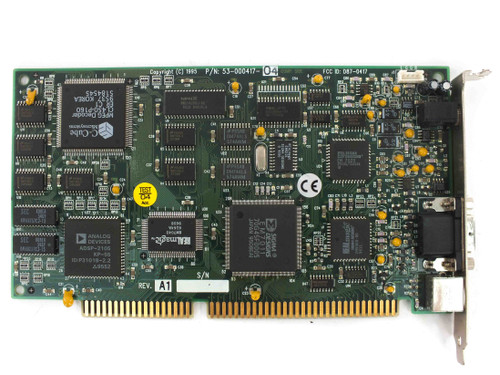

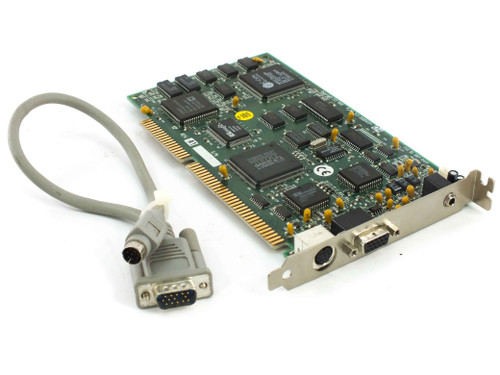

Sigma Designs RealMagic 53-000417 ISA MPEG decoder card front view with included 8-pin DIN to 15-pin VGA cable Sigma Designs RealMagic 53-000417 PCB component side showing EM7011 chip, C-Cube MPEG decoder, Rev A1 marking, and P/N label
