Siemens V30141-Z0113-A018-2-B900 48VDC Power Supply Rectifier 15826-001

(No reviews yet) Write a Review
SKU:
42026
MPN:
15826-001
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
39.00 LBS
Shipping:
Calculated at Checkout

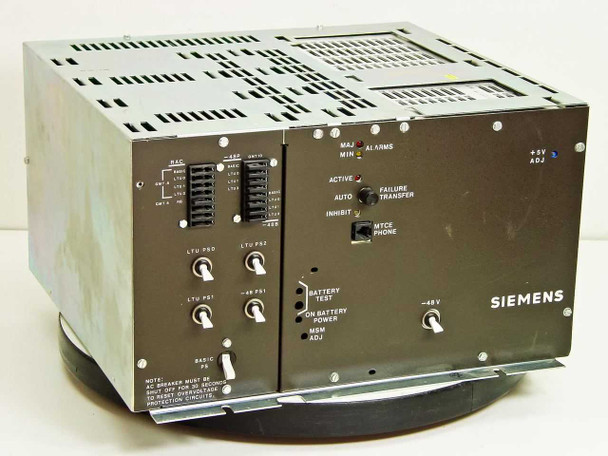

  • Siemens V30141-Z0113-A018-2-B900 48VDC telecom power supply rectifier — front panel left side showing LTU PS0, LTU PS1, LTU PS2, -48 PS1, Basic PS switches, RAC and -48P terminal blocks, and GMT fuse blocks
  • Siemens V30141-Z0113-A018-2-B900 power supply rectifier — rear/bottom view showing Siemens and Elgin Electronics rating label, multiple multi-pin output connectors, J15 external fuse alarm, and FCC compliance label
  • Elgin Electronics Combustion Engineering Inc. model label showing Model No. 15826-001, Serial No. 2255, Rev. 6, Date Code 8911, UL and CSA Custom Rectifier markings
  • Siemens V30141-Z0113-A018-2-B900 rating plate showing full input/output specification table: INPUT 110VAC 50/60Hz 20A(J1) 20A(J2) -48VDC 10A; OUTPUT 110VAC 50/60Hz 25A, 90VAC 20Hz 25W, +5.2VDC 3.7A, +5VDC 45A, -5VDC 2.5A, +12VDC 6.8A, -12VDC 0.5A, -48VDC 10A J7 and J8
  • Siemens V30141 power supply front panel close-up — left section showing RAC terminal block, -48P and GMT10 fuse rows, -48B label, and LTU PS0/PS1/PS2/-48 PS1/Basic PS rotary switches

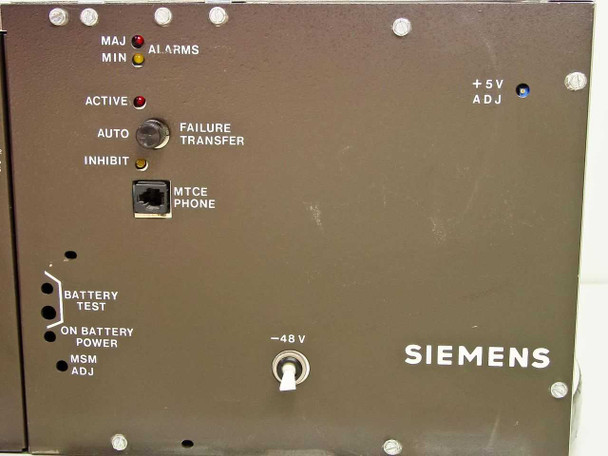

  • Siemens V30141 power supply front panel close-up — right section showing MAJ/MIN alarm LEDs, Active LED, Auto/Inhibit Failure Transfer switch, MTCE Phone RJ jack, Battery Test switch, On Battery Power indicator, MSM ADJ, -48V switch, and +5V ADJ trimmer

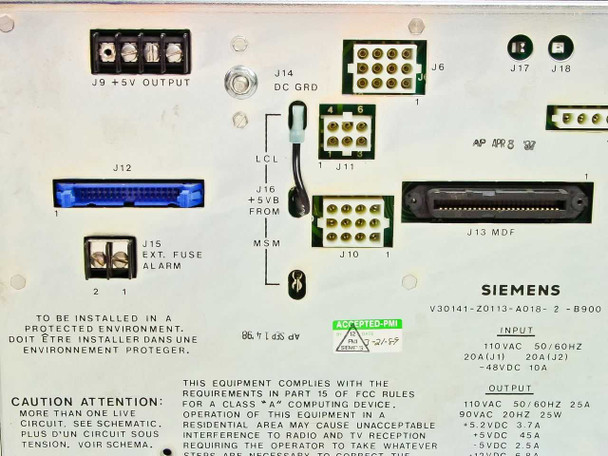

  • Siemens V30141 rear panel showing connector array including J9 +5V Output, J14 DC GND, J15 Ext. Fuse Alarm, J12 blue multi-pin connector, J16 +5VB from MSM, J10, J11 LCL, J13 MDF large multi-pin, J6, J17, J18 connectors, plus rating plate and Elgin Electronics label
  • Siemens V30141 rear panel upper area showing J3 AC OUT LTU PS Ø, J4 AC OUT -48 PS1, J7, J2 2nd AC IN, J8 EXP CAB, J5 AC OUT Expansion Cabinet, J1 AC IN connectors, J10, J13 MDF multi-pin, rating plate and Elgin Electronics/Combustion Engineering label with serial 2255, Rev 6, Date Code 8911
  • Siemens V30141 power supply interior top-open view showing main PCB on left with transformer, large capacitors, power transistors, wiring harness, and a ventilated white sub-assembly on the right
  • Siemens V30141 power supply interior detail — top-down view of main power board showing multiple power transistors, film and electrolytic capacitors, inductors, yellow capacitor, blue capacitor, and ribbon cable connecting to secondary board
$175.00
Was: $350.00
Current Stock: 1

Sold Out

Description

Siemens V30141-Z0113-A018-2-B900 48VDC Power Supply Rectifier 15826-001

Enclosed rack-mountable telecom rectifier and power distribution unit for central office environments. Accepts 110VAC input and supplies multiple DC and AC outputs for LTU (Line Terminating Unit) equipment and peripheral systems.

Specifications & What's Included

  • Input: 110VAC 50/60Hz 20A, -48VDC 10A
  • Outputs: +5.2VDC 3.7A, +5VDC 45A, -5VDC 2.5A, +12VDC 6.8A, -12VDC 0.5A, -48VDC (dual 10A), 110VAC 25A, 90VAC 25W
  • Front panel: MAJ/MIN alarm LEDs, battery test, active/auto/inhibit failure transfer controls
  • Connectors: AC in (J1/J2), +5V out (J9/J16), -48V out (J7/J8), MDF/LCL pairs
  • UL Listed, CSA, FCC Part 15 Class A certified
  • Revision 6, date code 8911, manufactured by Elgin Electronics/Combustion Engineering, Erie PA
  • Unit only; no accessories included

Applications

This rectifier was standard equipment in Siemens telecom central offices for powering LTU line cards and associated peripherals. It supports legacy telecom switching and circuit termination systems that require redundant -48VDC supplies with integrated AC standby and multiple logic voltage rails. Compatible with Siemens central office architectures from the 1980s–1990s era.

Condition: Used
This Siemens V30141-Z0113-A018-2-B900 48VDC Telecom Power Supply Rectifier (model 15826-001) has been inspected and appears to be in good condition. The chassis and front panel show normal wear consistent with prior use in a telecom or central office environment. All front panel switches, alarm LEDs, and connectors appear intact and undamaged. The interior boards and components look clean with no obvious damage visible. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Siemens
Model:
V30141-Z0113-A018-2-B900
MPN:
15826-001
Secondary Model:
15826-001
Type:
Telecom Multi-Output Power Supply Rectifier
SKU:
42026
OEM Manufacturer:
Elgin Electronics / Combustion Engineering Inc., Erie PA
Revision:
Rev 6
Date Code:
8911
Condition:
Used – Inspected, appears in good condition
Seller Notes:
Unit only; no accessories. Inspected and appears in good condition.
Country/Region of Manufacture:
United States
Form Factor:
Enclosed / Rack-Mountable Chassis
Input Voltage:
110VAC 50/60Hz, 20A (J1 & J2); -48VDC 10A
Output 1:
110VAC 50/60Hz 25A
Output 2:
90VAC 20Hz 25W
Output 3:
+5.2VDC 3.7A
Output 4:
+5VDC 45A
Output 5:
-5VDC 2.5A
Output 6:
+12VDC 6.8A
Output 7:
-12VDC 0.5A
Output 8:
-48VDC 10A (J7)
Output 9:
-48VDC 10A (J8)
Input Frequency:
50/60Hz
DC Output Voltage:
-48VDC
Alarm Indicators:
MAJ / MIN alarm LEDs on front panel
Front Panel Controls:
LTU PS0, LTU PS1, LTU PS2, -48 PS1, Basic PS switches; -48V switch; Battery Test; Active/Auto/Inhibit Failure Transfer; MSM ADJ; +5V ADJ
Connectors:
J1 AC IN, J2 2nd AC IN, J4, J5, J9 +5V OUT, J12, J13 MDF, J15 Ext Fuse Alarm, J16 +5VB, J10, J11 LCL
Certifications:
UL Listed, CSA (Custom Rectifier), FCC Part 15 Class A
Application:
Central office / telecom LTU power distribution
Compatible With:
Siemens telecom central office / LTU equipment
MTCE Phone Jack:
RJ-type MTCE phone connector on front panel
Condition Notes:
Siemens V30141-Z0113-A018-2-B900 48VDC telecom power supply rectifier, model 15826-001. Inspected and appears in good condition. Normal wear from prior use. Front panel switches and connectors intact. Please contact us with any questions.
