Rolm

Rolm 8691 501173-01 AC Power Supply 120VAC 18A Multi-Voltage 5V-48VDC 2.16kW

(No reviews yet) Write a Review
SKU:
13378
MPN:
8691
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
180.00 LBS
Shipping:
Calculated at Checkout

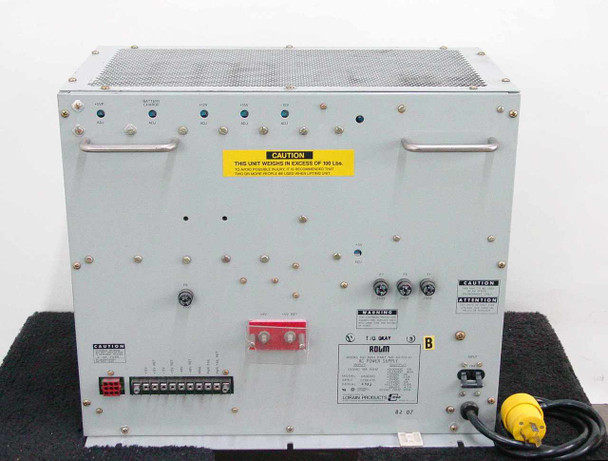

  • Rolm 8691 AC Power Supply front panel with rating plate, terminal block, fuses, and NEMA twist-lock power cord attached
  • Rolm 8691 AC Power Supply rear view showing large ventilation grilles, cooling vents, and warning labels
  • Rolm 8691 rating plate close-up showing model 8691, part 501173-01, input 120VAC 18A 60Hz, and full output voltage/current specifications
  • Rolm 8691 output terminal block close-up showing labeled terminals for +15V, -15V, +48V, -48V, RING, PWR FAIL, and 8A/250V fuse F8
  • Rolm 8691 top front panel showing indicator LEDs for +5VP, Battery Charge, +12V, +15V, -15V with ADJ trim pots and carry handle
  • Close-up of NEMA L5-20P twist-lock plug rated 20A 125V included with the Rolm 8691 power supply
  • Rolm Corporation rating label showing model 8691, part 501173-01, designed and manufactured by Lorain Products, a Reliance Electric Company, Made in USA
$300.00
Was: $600.00
Current Stock: 1

Sold Out

Description

Rolm 8691 501173-01 AC Power Supply 120VAC 18A Multi-Voltage 5V-48VDC 2.16kW

Multi-voltage AC power supply manufactured by Lorain Products (Reliance Electric Company) for Rolm PBX and CBX telephone systems. Converts 120VAC input to nine regulated DC and AC outputs ranging from +5VDC to -48VDC, plus a 90VAC 20Hz auxiliary output.

Specifications & What's Included

  • Input: 120VAC, 18A, 60Hz; Output: 2.16kW total power
  • Nine outputs: +5VDC (5A), +5.25VDC (80A), +12VDC (2A), +15VDC (3.5A), -15VDC (4A), +24VDC (5A), +27.7VDC (0.8A), -48VDC (4.2A), 90VAC (10VA)
  • Adjustable trim potentiometers for +5V, Battery Charge, +12V, +15V, -15V outputs
  • NEMA L5-20P twist-lock connector; multi-pin terminal block outputs
  • Includes attached power cord with NEMA L5-20P twist-lock plug

Applications

This supply was designed to power Rolm PBX/CBX telephone switching systems and related equipment. It provided multiple voltage rails required for control circuits, signaling, and peripheral devices in these systems. Rolm telephone exchanges were widely deployed in enterprise environments through the 1980s and 1990s.

Condition: For Parts or Not Working
This Rolm 8691 501173-01 AC Power Supply was pulled from a working environment and has not been powered up or tested at our facility. The unit is in good used cosmetic condition overall — the gray steel enclosure shows typical light surface wear, minor scuffs, and general handling marks consistent with prior service use. The front panel, terminal blocks, fuses, indicator LEDs, and trim-pot adjusters are all present and intact as shown. The attached NEMA L5-20P twist-lock power cord is included. A caution label notes the unit weighs in excess of 100 lbs — two-person handling is recommended. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Rolm
Model:
8691
MPN:
501173-01
Secondary Model:
AA9D951
Spec Number:
5758-015
SKU:
13378
Type:
Multi-Voltage AC Power Supply
Manufacturer / Designer:
Lorain Products (Reliance Electric Company)
Input Voltage:
120VAC
Input Current:
18A
Input Frequency:
60Hz
Power Rating:
2.16kW
Output 1:
+5.00VDC, 5A
Output 2:
+5.25VDC, 80A
Output 3:
+12VDC, 2A
Output 4:
+15VDC, 3.5A
Output 5:
-15VDC, 4A
Output 6:
+24VDC, 5A
Output 7:
+27.7VDC, 0.8A
Output 8:
-48VDC, 4.2A
Output 9:
90VAC, 20Hz, 10VA
Voltage Range (DC Outputs):
+5VDC to -48VDC
Fuses:
F7: 1A/250V; F5: 10A/250V; F1: 10A/250V; F8: 8A/250V
Power Connector:
NEMA L5-20P twist-lock, 125V 20A
Output Terminals:
Multi-pin terminal block; +5V, +5VRET, +15V, -15V, +48V, -48V, RING, PWR FAIL
Adjustable Outputs:
+5VP, Battery Charge, +12V, +15V, -15V (ADJ trim pots)
Rectifier Type:
Component Type Custom Rectifier
Form Factor:
Freestanding / Rackmount Cabinet Unit
Compatible With:
Rolm PBX / CBX telephone systems
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
USA
Seller Notes:
Includes attached power cord with NEMA L5-20P twist-lock plug.
Condition Notes:
Rolm 8691 501173-01 AC Power Supply pulled from a working environment; not tested at our facility. Good used cosmetic condition. Includes attached NEMA L5-20P twist-lock power cord. Unit is heavy — 100+ lbs.
